Rack PDU, Switched, 2U, 30A, 120V, (16)5-20
$1,255.70
Loading...
Similar Items
Product Description

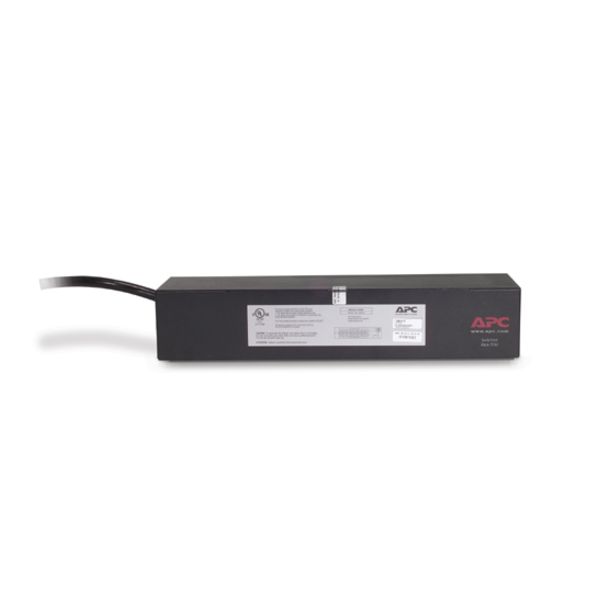

Rack PDU, Switched, 2U, 30A, 120V, (16)5-20
Switched - NEMA L5-30P - 16 x NEMA 5-20R - 100 V, 120 V - 10 ft Cord Length - 2U - Horizontal - Rack-mountable
It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 120V. It includes 16 NEMA 5-20R outlets and a NEMA L5-30P input connection. The PDU has a 2U form factor and a cord length of 10 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed, ensuring high safety and performance standards.
- It can handle a maximum current capacity of 30A, suitable for demanding applications
- It includes 16 NEMA 5-20R outlets, offering extensive connectivity
- The 2U form factor helps save rack space and improves cable management
- Allows for remote monitoring and control, enhancing power management capabilities
- The unit is UL Listed, ensuring high safety and performance standards.
- A device fitted with multiple outputs for the distribution of electric power
- With a built-in digital current meter avoid potential overloads via switched PDUs
- NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
- Perfect placement of your PDU with Front ensure lesser cooling cost
- NEMA L5-30P plug/connector type for better, dependable connectivity and desired power output
- 100 V input voltage for optimal performance with maximum usability
- 120 V AC output voltage for optimal performance with maximum feasibility
Loading...
Product Specifications
-
Additional Warranty Information2 years repair or replace
-
Brand NameAPC by Schneider Electric
-
Certifications & StandardscUL Listed|CSA|Industry Canada|UL Listed
-
Cord Length10 ft
-
Depth4.5"
-
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465899706&lang=en-us
-
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
-
Environmentally FriendlyYes
-
For Country/RegionUnited States
-
Height3.5"
-
Input Current30 A
-
Input Voltage100 V 120 V
-
Lead FreeYes
-
Limited Warranty2 Year
-
Manufacturer Part NumberAP7902B
-
Mercury FreeYes
-
Mount TypeRack-mountable
-
Mounting PreferenceNo Preference
-
Optimized Energy EfficiencyYes
-
Output Voltage120 V AC
-
Package ContentsRack PDU, Switched, 2U, 30A, 120V, (16)5-20 Cord retention bracket(s) Horizontal mounting brackets Installation guide User manual
-
PlacementFront Rear
-
Plug/Connector TypeNEMA L5-30P
-
Product LineSwitched Rack
-
Product NameRack PDU, Switched, 2U, 30A, 120V, (16)5-20
-
Product Take Back ProgramYes
-
Product TypePDU
-
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465899706&lang=en-us
-
REACH free of SVHCYes
-
Rack Height2U
-
Receptacle Detail16 x NEMA 5-20R
-
Receptacle TypeNEMA 5-20R
-
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7902B_ROHS_DECLARATION&p_FileName=AP7902BKIT_ROHS_DECLARATION_US.pdf
-
Width17.5"
