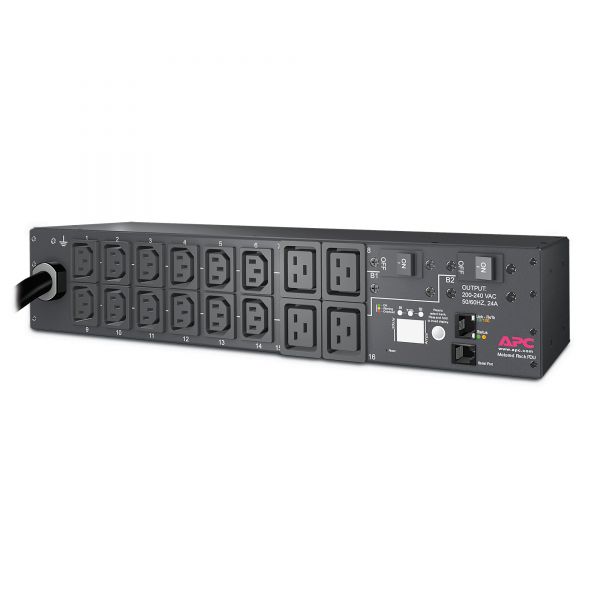

APC NetShelter Rack PDU, Metered, 2U, 5.0kW 208V 30A, (12) C13, (4) C19 outlets

(3 reviews)
|
Product Number: SYNX4763500
$985.12
Ships Free - This items ships free with your order
Delivered by Tue 4/29 Wed 4/30 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Similar Items

Product Description

APC NetShelter Rack PDU, Metered, 2U, 5.0kW 208V 30A, (12) C13, (4) C19 outlets
Metered - NEMA L6-30P - 12 x IEC 60320 C13, 4 x IEC 60320 C19 - 200 V, 208 V, 230 V - 12 ft Cord Length - 2U - Horizontal - Rack-mountable
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
More from the Manufacturer
  • Ideal for colocation, large or remote data center operators
  • Helps balance loads by measuring and recording amps with +/- 5% accuracy
  • Empowers IT staff with real-time remote monitoring of connected loads
  • Alerts of potential circuit overloads with user-defined alarms
  • Upgraded to support TLS 1.2 cyber protoco
  • Support for upto four simultaneous user sessions
  • PDU provides power control as remote controlled relay & load monitoring
  • Remotely monitor your equipment without any worries with Metered
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • Perfect placement of your PDU with Front ensure lesser cooling cost
  • NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
  • 200 V input voltage for optimal performance with maximum usability
  • 208 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    2 years repair or replace
  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Listed|CSA|PSE|UL Listed
  • Cord Length
    12 ft
  • Depth
    4.4"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562847&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Height
    3.5"
  • Input Current
    30 A
  • Input Voltage
    230 V 200 V 208 V
  • Lead Free
    Yes
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    AP7811B
  • Mount Type
    Rack-mountable
  • Mounting Preference
    No Preference
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    208 V AC
  • Package Contents
    Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19 Cord retention bracket(s) Installation guide Rack mounting brackets User manual
  • Placement
    Front Rear
  • Plug/Connector Detail
    1
  • Plug/Connector Type
    NEMA L6-30P
  • Product Line
    Metered Rack
  • Product Name
    Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
  • Product Take Back Program
    Yes
  • Product Type
    PDU
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562847&lang=en-us
  • REACH free of SVHC
    Yes
  • Rack Height
    2U
  • Receptacle Detail
    12 x IEC 60320 C13 4 x IEC 60320 C19
  • Receptacle Type
    IEC 60320 C13 IEC 60320 C19
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7811B_ROHS_DECLARATION&p_FileName=AP7811BKIT_ROHS_DECLARATION_US.pdf
  • Width
    17.5"
