APC by Schneider Electric NetShelter 40-Outlets PDU
Product Number: ETLZ1072294036
$1,297.68
Loading...
Loading...
Product Description
APC by Schneider Electric NetShelter 40-Outlets PDU
Metered - NEMA L6-30P - 20 x IEC 60320 C13/C15, 20 x IEC 60320 C13/C15/C19/C21 - 208 V - Network (RJ-45) - 9.84 ft Cord Length - 0U - Rack - TAA Compliant
Description:

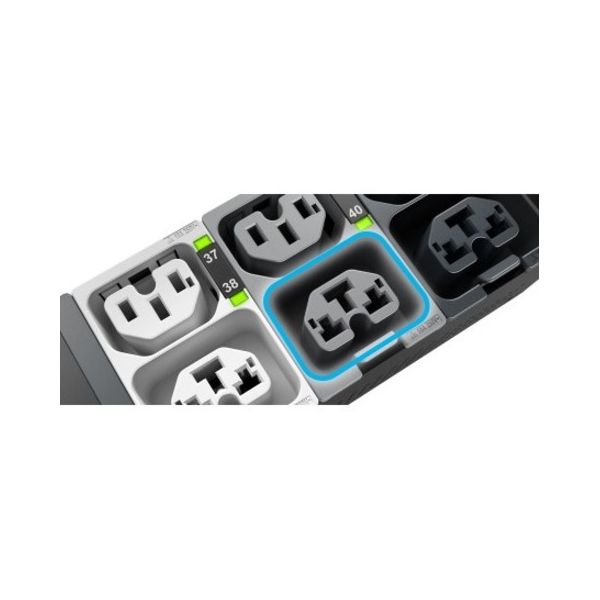

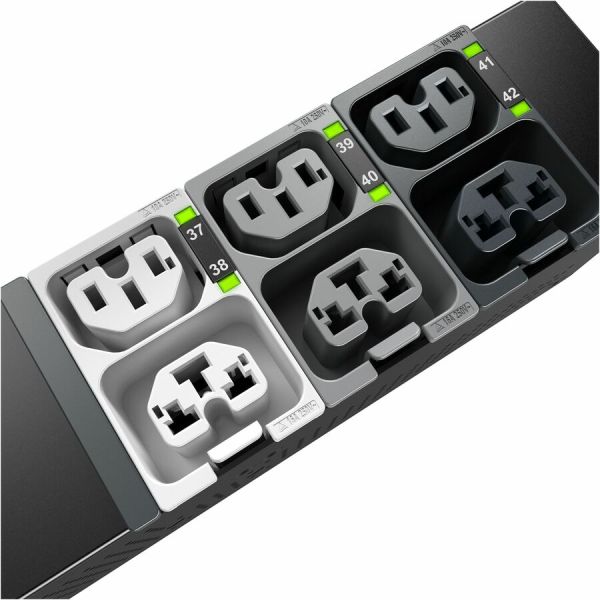

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded by breaker to simplify deployment. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.
More from the Manufacturer
More from the Manufacturer
- Input: 1PH, NEMA L6-30P
- Outlets: (20) C13/C15/C19/C21, (20) C13/C15
- Full-featured network management capability
- Interactive LCD display
- Active power measurements (volts, amps, kW, kWh)
- 3-year APC warranty
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Monitor load level efficiently with PDU meter
- IEC 60320 C13/C15/C19/C21 receptacle type to ensure maximum productivity with added feasibility
- Single Phase phase PDU provides optimal power output with added usability
- NEMA L6-30P plug/connector type for better, dependable connectivity and desired power output
- 208 V input voltage for maximum feasibility and added productivity
- 208 V AC output voltage for maximum dependability and added productivity
Product Specifications
-
Additional Warranty Information3 years repair or replace
-
Brand NameAPC by Schneider Electric
-
Certifications & StandardsTAA compliance
-
Cord Length9.84 ft
-
Country of OriginIndia
-
Depth3"
-
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552062981&lang=en-us
-
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
-
Environmentally FriendlyYes
-
Form FactorRack
-
Green PremiumYes
-
Height58.7"
-
Input Current30 A
-
Input Voltage208 V
-
Input Voltage Range200 V AC - 240 V AC
-
Limited Warranty3 Year
-
Manufacturer Part NumberAPDU10151ME
-
Network (RJ-45)Yes
-
Output Voltage208 V AC
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA L6-30P
-
Power Rating (VA)4992 VA
-
Power Rating (Watt)5000 W
-
Product ColorBlack
-
Product LineNetShelter
-
Product NameNetShelter 40-Outlets PDU
-
Product TypePDU
-
Protection TypeOverload Protection
-
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552062981&lang=en-us
-
REACH free of SVHCYes
-
Rack Height0U
-
Receptacle Detail20 x IEC 60320 C13/C15 20 x IEC 60320 C13/C15/C19/C21
-
Receptacle TypeIEC 60320 C13/C15 IEC 60320 C13/C15/C19/C21
-
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU10151ME_ROHS_DECLARATION&p_FileName=APDU10151MEKIT_ROHS_DECLARATION_US.pdf
-
WEEE StatementThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
-
Width2.2"
