APC by Schneider Electric NetShelter 42-Outlets PDU
Product Number: ETLZ1072294030
$2,463.21
Loading...
Loading...
Product Description

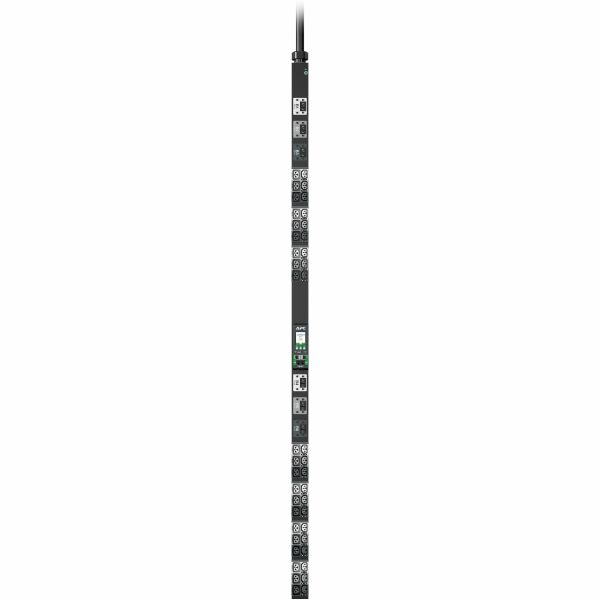

APC by Schneider Electric NetShelter 42-Outlets PDU
Metered - CS8365C 50A - 21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15 - 208 V - 5.91 ft Cord Length - 0U - Rack - TAA Compliant
Description:

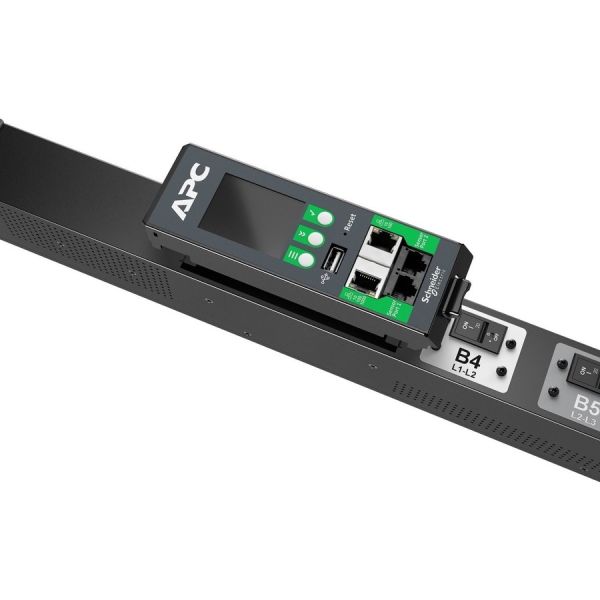

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.
- Input: 3PH, CS8365

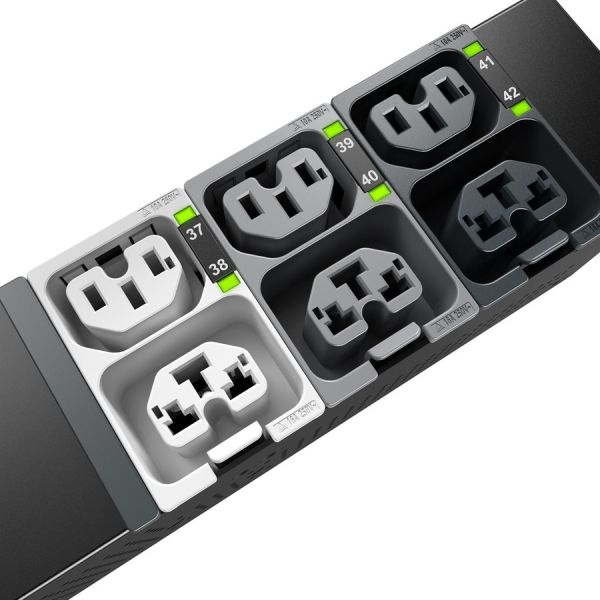

- Outlets: (21) C13/C15/C19/C21, (21) C13/C15
- Full-featured network management capability

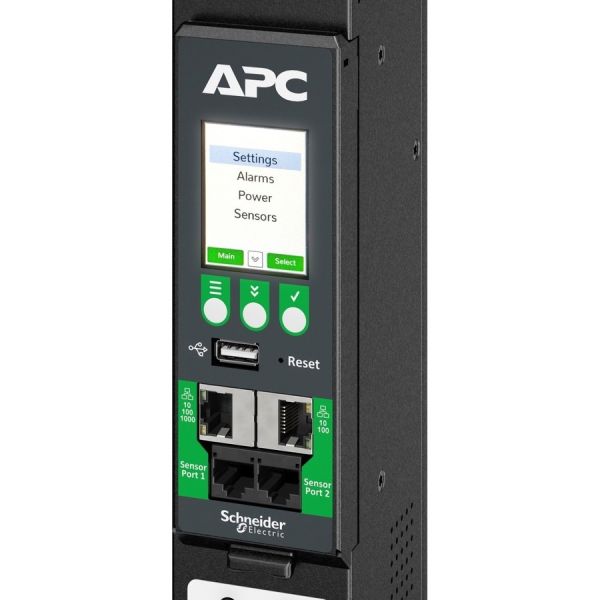

- Interactive LCD display
- Active power measurements (volts, amps, kW, kWh)
- 3-year APC warranty

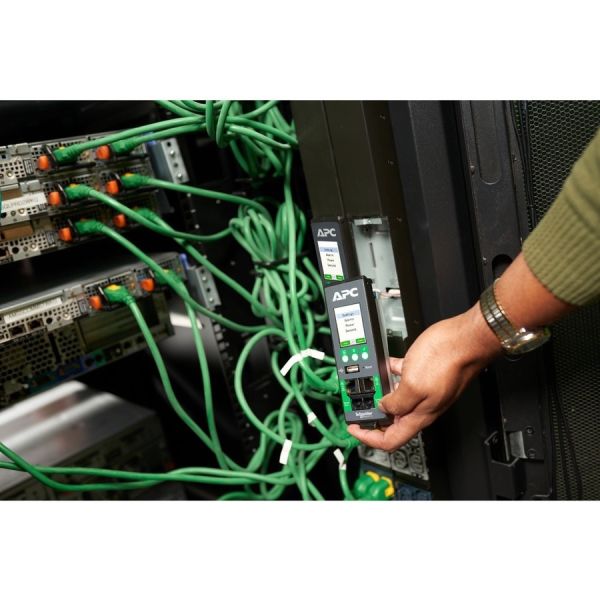

- PDU provides power control as remote controlled relay & load monitoring
- You can always avoid potential overloads with PDU meter
- IEC 60320 C13/C15/C19/C21 receptacle type to ensure maximum dependability and optimal performance
- Three Phase phase PDU for reliable performance with maximum productivity

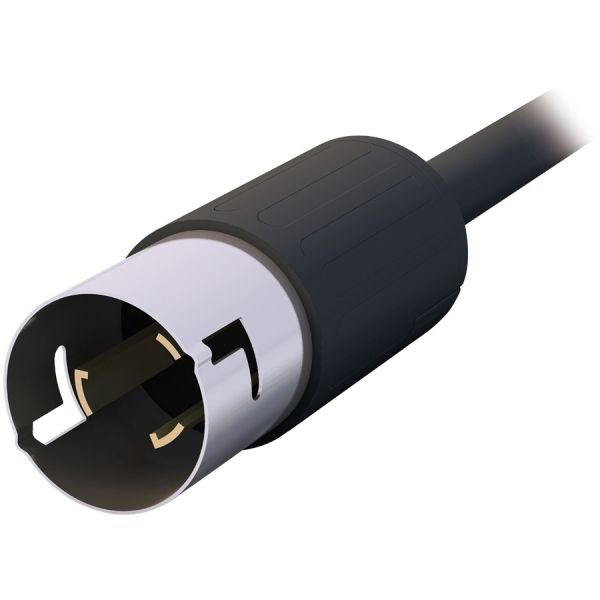

- CS8365C 50A plug/connector type for better, dependable connectivity and desired power output
- 208 V input voltage for optimal performance with maximum usability
- 208 V AC output voltage for better reliance and maximum usability
Product Specifications
-
Additional Warranty Information3 years repair or replace
-
Brand NameAPC by Schneider Electric
-
Certifications & StandardsTAA compliance
-
Cord Length5.91 ft
-
Country of OriginIndia
-
Depth3"
-
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552063021&lang=en-us
-
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
-
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) China Restriction of Hazardous Substances (China RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
-
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
-
Environmentally FriendlyYes
-
Form FactorRack
-
Green PremiumYes
-
Height70.1"
-
Input Current50 A
-
Input Voltage208 V
-
Input Voltage Range200 V AC - 240 V AC
-
Limited Warranty3 Year
-
Manufacturer Part NumberAPDU10451ME
-
Output Voltage208 V AC
-
PhaseThree Phase
-
Plug/Connector TypeCS8365C 50A
-
Power Rating (VA)14.40 kVA
-
Power Rating (Watt)14.40 kW
-
Product ColorBlack
-
Product LineNetShelter
-
Product NameNetShelter 42-Outlets PDU
-
Product TypePDU
-
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552063021&lang=en-us
-
REACH free of SVHCYes
-
Rack Height0U
-
Receptacle Detail21 x IEC 60320 C13/C15 21 x IEC 60320 C13/C15/C19/C21
-
Receptacle TypeIEC 60320 C13/C15 IEC 60320 C13/C15/C19/C21
-
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU10451ME_ROHS_DECLARATION&p_FileName=APDU10451MEKIT_ROHS_DECLARATION_US.pdf
-
WEEE StatementThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
-
Width2.2"
