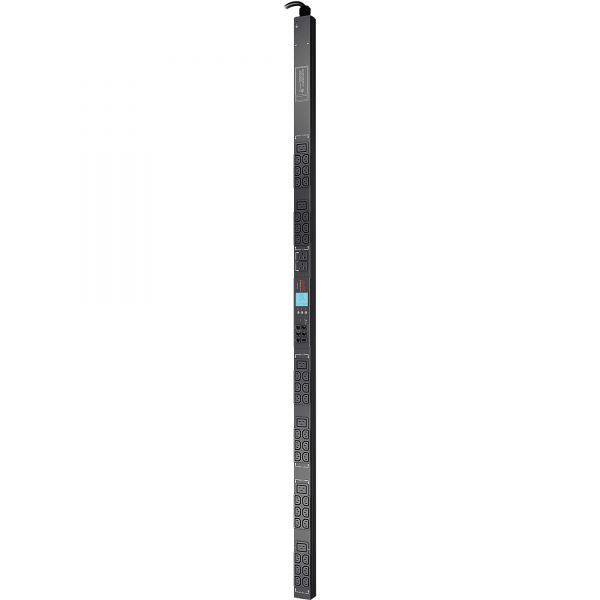

APC by Schneider Electric Metered Rack AP8861 44-Outlets 5.7kW PDU

Product Number: SYNX2748780
$876.61
Ships Free - This items ships free with your order
Delivered by Thu 12/5 Thu 12/5 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

APC by Schneider Electric Metered Rack AP8861 44-Outlets 5.7kW PDU
Metered - NEMA L21-20P - 208 V - 6 ft Cord Length - 0U - Rack-mountable
Description:
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8861 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-20P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
More from the Manufacturer
  • Ideal for colocation, large data centers or distributed IT sites
  • Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
  • Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
  • Stay on top by defining alarm thresholds in order to avoid overloaded circuits
  • Zero U toolless installation
  • Interactive LCD display
  • Active power measurements (volts, amps, kW, kWh)
  • Embedded log memory
  • 5.9' power cord, 2-year APC warranty
  • 1-Year Secure Network Management Card subscription included
  • Monitor load level efficiently with PDU meter
  • NEMA L21-20P plug/connector type for reliable, productive connectivity and optimal power output
  • 208 V input voltage for optimal performance with maximum usability
  • 120 V AC output voltage for maximum dependability and added productivity
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    2 years repair or replace
  • Brand Name
    APC by Schneider Electric
  • Cord Length
    6 ft
  • Depth
    1.7"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65033448&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
  • Environmentally Friendly
    Yes
  • Green Premium
    Yes
  • Height
    70.5"
  • Input Voltage
    208 V
  • Lead Free
    Yes
  • Limited Warranty
    2 Year
  • Management
    Protocols: SNMP Telnet
  • Manufacturer Part Number
    AP8861
  • Mercury Free
    Yes
  • Mount Type
    Rack-mountable
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    120 V AC 208 V AC
  • Package Contents
    Metered Rack AP8861 44-Outlets 5.7kW PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
  • Plug/Connector Type
    NEMA L21-20P
  • Product Line
    Metered Rack
  • Product Model
    AP8861
  • Product Name
    Metered Rack AP8861 44-Outlets 5.7kW PDU
  • Product Take Back Program
    Yes
  • Product Type
    PDU
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65033448&lang=en-us
  • REACH free of SVHC
    No
  • Rack Height
    0U
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8861_ROHS_DECLARATION&p_FileName=AP8861KIT_ROHS_DECLARATION_US.pdf
  • Width
    2.2"
