Eaton Tripp Lite Series 5.8kW Single-Phase Local Metered PDU, 200-240V Outlets (8 C19 and 40 C13), L6-30P, 10 ft. (3.05 m) Cord, 0U Vertical, TAA, 70 in.
Product Number: SYNX4313366
$571.00
Loading...
Loading...
Product Description
Eaton Tripp Lite Series 5.8kW Single-Phase Local Metered PDU, 200-240V Outlets (8 C19 and 40 C13), L6-30P, 10 ft. (3.05 m) Cord, 0U Vertical, TAA, 70 in.
NEMA L6-30P - 8 x IEC 60320 C19, 40 x IEC 60320 C13
Description:

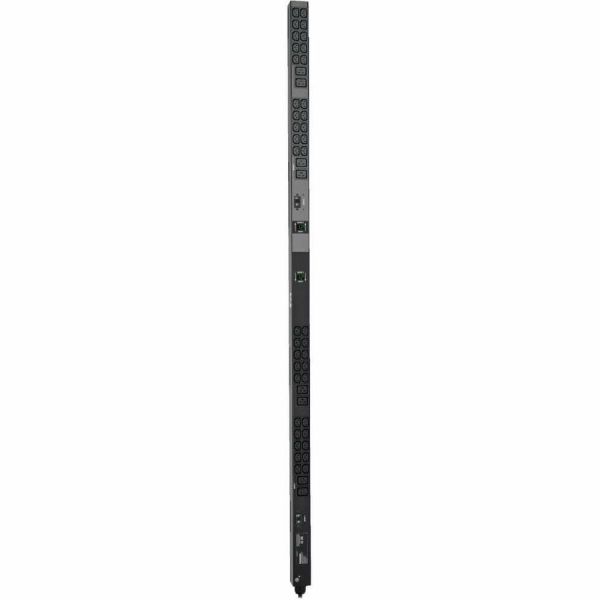

The 70-inch (178-centimeter) PDUMV30HV2 30A 208/240V 5.8kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers.

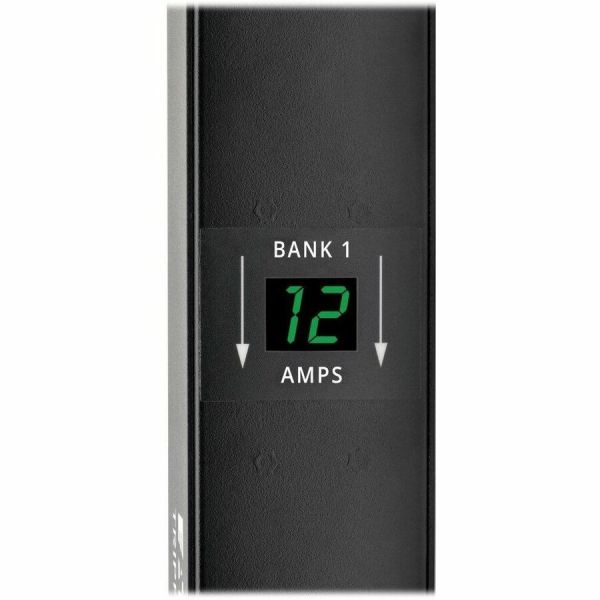

Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.
An ideal PDU for server rooms, network closets and data centers, the PDUMV30HV2's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The NEMA L6-30P input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.
More from the Manufacturer
Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.
An ideal PDU for server rooms, network closets and data centers, the PDUMV30HV2's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The NEMA L6-30P input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.
More from the Manufacturer
- Ideal for server rooms, network closets and data centers

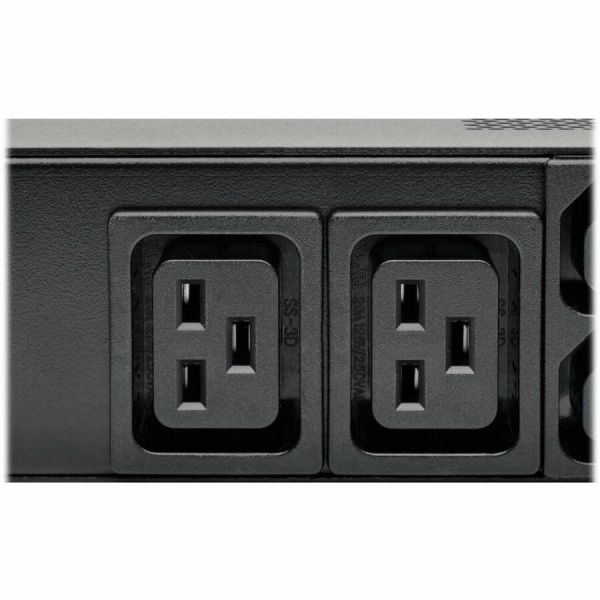

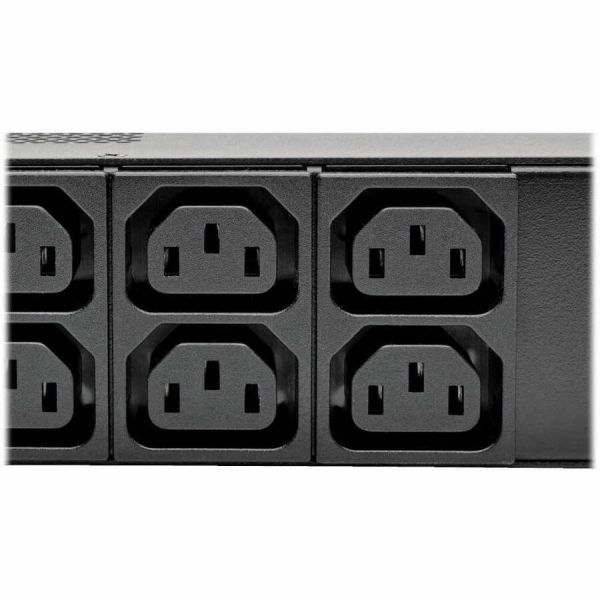

- Dual load banks with 24 outlets each (4 C19 and 20 C13)

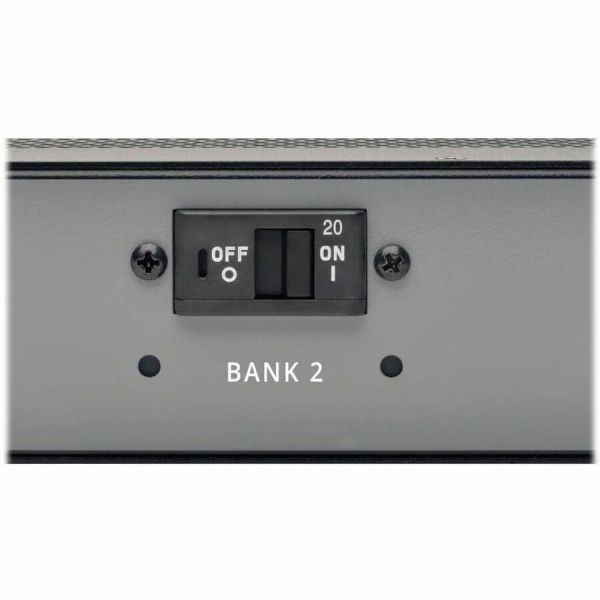

- Dedicated 20A circuit breakers protect output
- NEMA L6-30P input plug with 10-ft. (3 m) cord
- Ready for immediate toolless 0U installation
- IEC 60320 C19 receptacle type to ensure maximum productivity with added feasibility
- NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for maximum feasibility and added productivity
- 230 V AC output voltage for optimal performance with maximum feasibility
Product Specifications
-
Brand NameTripp Lite by Eaton
-
Country of OriginTaiwan
-
Depth2.5"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Height70"
-
Input Current30 A
-
Input Voltage230 V AC
-
Limited Warranty2 Year
-
Manufacturer Part NumberPDUMV30HV2
-
Mounting OrientationVertical
-
Output Voltage230 V AC
-
Package ContentsPDUMV30HV2 48-Outlet PDU Plug-lock inserts (8 C20, 40 C13) Spare installation buttons, 2.9mm/4.6 mm Ground screw Mounting hardware Owner's Manual
-
Plug/Connector TypeNEMA L6-30P
-
Power Rating5.80 kVA
-
Power Rating (Watt)5800 W
-
Product LineMetered
-
Product ModelPDUMV30HV2
-
Product NameMetered PDUMV30HV2 48-Outlet PDU
-
Product TypePDU
-
Protection TypeOverload Protection
-
Rack Height0U
-
Receptacle Detail40 x IEC 60320 C13 8 x IEC 60320 C19
-
Receptacle TypeIEC 60320 C13 IEC 60320 C19
-
Width2.2"
