Eaton Tripp Lite Series 2.4kW Single-Phase 120V Basic PDU - 13 NEMA 5-15/20R Outlets, L5-20P Input, 6 ft. (1.83 m) Cord, 1U Rack-Mount
Product Number: SYNX6022215
$147.01
Loading...
Loading...
Eaton Tripp Lite Series 2.4kW Single-Phase 120V Basic PDU - 13 NEMA 5-15/20R Outlets, L5-20P Input, 6 ft. (1.83 m) Cord, 1U Rack-Mount
Basic - NEMA L5-20P - 13 x NEMA 5-15/20R - 120 V AC - 1U - Horizontal/Vertical - Rack-mountable, Wall-mountable
Description:
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

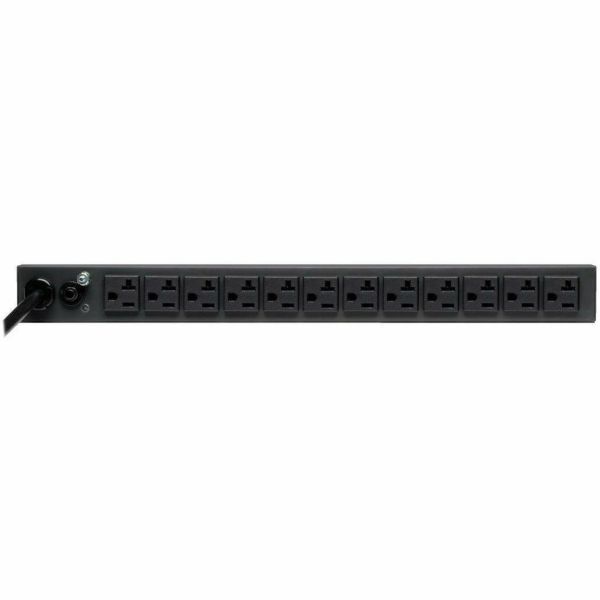

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1220T6 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A 6-ft. (1.83 m) cord with NEMA L5-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1220T6 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A 6-ft. (1.83 m) cord with NEMA L5-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
- 13 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Switchless design helps prevent accidental shutdowns that can lead to costly downtime

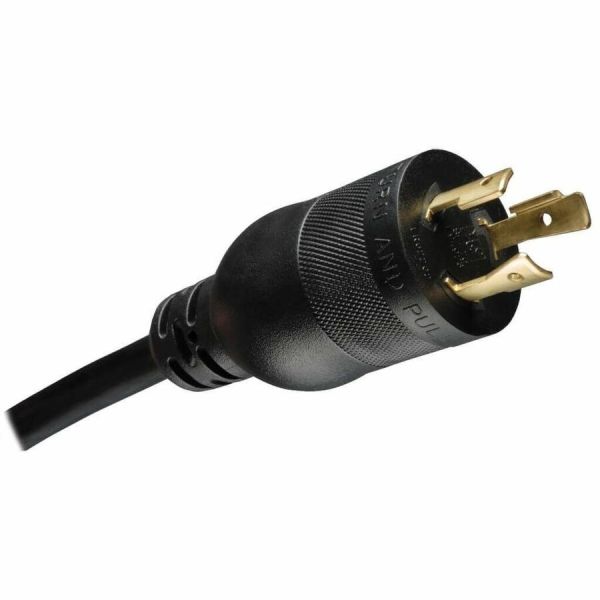

- 6-ft. (1.83 m) cord with NEMA L5-20P single-phase input connects to AC power source
- Flexible installation options include 1U and 0U rack, under counter and on wall
- 5-year limited warranty
- PDU provides power control as remote controlled relay & load monitoring
- Basic PDU is the space-saving and cost-effective way to deliver power
- NEMA 5-15/20R receptacle type to ensure maximum dependability and optimal performance
- Single Phase phase PDU provides optimal power output with added usability
- NEMA L5-20P plug/connector type for reliable, productive connectivity and optimal power output
- 120 V AC input voltage for optimal performance with maximum usability
- 100 V AC output voltage for optimal performance with maximum feasibility
-
Brand NameTripp Lite by Eaton
-
Country of OriginChina
-
Depth4.5"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Height1.8"
-
Input Current20 A
-
Input Voltage120 V AC
-
Limited Warranty5 Year
-
Manufacturer Part NumberPDU1220T6
-
Mount TypeRack-mountable Wall-mountable
-
Mounting OrientationHorizontal/Vertical
-
Output Voltage100 V AC 120 V AC 127 V AC
-
Package ContentsPDU1220T6 13-Outlets PDU Rack-mounting Hardware Owner's Manual
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA L5-20P
-
Power Rating (Watt)2500 W
-
Product ModelPDU1220T6
-
Product NamePDU1220T6 13-Outlets PDU
-
Product TypePDU
-
Protection TypeAccidental Power Shutdown Circuit Protection Overload Protection
-
Rack Height1U
-
Receptacle Detail13 x NEMA 5-15/20R
-
Receptacle TypeNEMA 5-15/20R
-
Width17.5"
