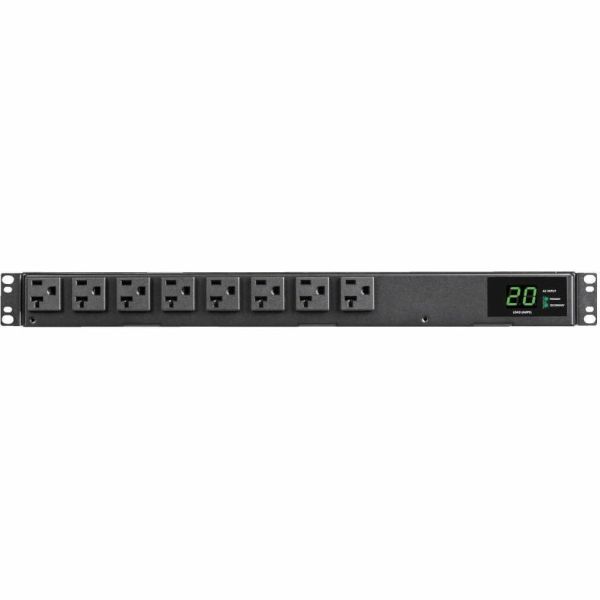

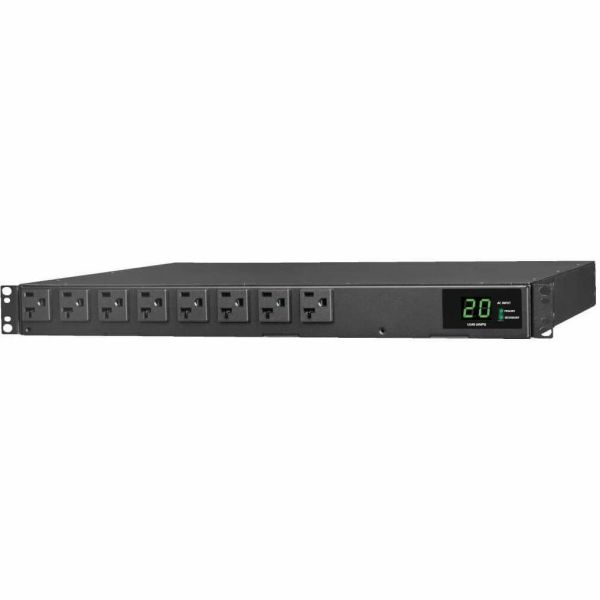

Eaton Tripp Lite Series 1.92kW 120V Single-Phase ATS/Local Metered PDU - 16 5-15/20R Outlets, Dual L5-20P/5-20P Inputs, 12 ft. Cords, 1U, TAA
Product Number: SYNX6335946
$432.43
Loading...
Loading...
Eaton Tripp Lite Series 1.92kW 120V Single-Phase ATS/Local Metered PDU - 16 5-15/20R Outlets, Dual L5-20P/5-20P Inputs, 12 ft. Cords, 1U, TAA
Metered Auto Transfer Switch - NEMA 5-20P, NEMA L5-20P - 16 x NEMA 5-15/20R - 120 V AC - 1U - Horizontal - Rack-mountable, Wall-mountable - TAA Compliant
Description:
Single-Phase 20A ATS PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20ATS features 16 NEMA 5-15/20R 120V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with NEMA L5-20P inputs (two 5-20P adapters are included) connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Mounts into 1U of Rack Space or on a Wall
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter.
TAA-Compliant for GSA Schedule Purchases
The PDUMH20ATS is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20ATS features 16 NEMA 5-15/20R 120V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with NEMA L5-20P inputs (two 5-20P adapters are included) connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Mounts into 1U of Rack Space or on a Wall
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter.
TAA-Compliant for GSA Schedule Purchases
The PDUMH20ATS is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- 16 NEMA 5-15/20R 120V outlets distribute AC power to connected equipment
- Digital ammeter for on-site real-time load monitoring helps prevent power overloads
- Dual 12 ft. cords with NEMA L5-20P inputs connect to separate power sources
- Installs in 1U of space in EIA-standard 19 in. racks using included mounting brackets
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
- PDU improves efficiency, uptime and growth of data centers
- Manage the load and monitor it perfectly with Metered Auto Transfer Switch anytime with the convenience
- NEMA 5-15/20R receptacle type to ensure maximum dependability and optimal performance
- Single Phase phase PDU provides dependable power output with maximum efficiency
- NEMA 5-20P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for maximum feasibility and added productivity
- 100 V AC output voltage for maximum dependability and added productivity
-
Brand NameTripp Lite by Eaton
-
Country of OriginTaiwan
-
Depth14.5"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Height1.8"
-
Input Current20 A
-
Input Voltage120 V AC
-
Limited Warranty2 Year
-
Manufacturer Part NumberPDUMH20ATS
-
Mount TypeRack-mountable Wall-mountable
-
Mounting OrientationHorizontal
-
Output Voltage100 V AC 120 V AC 127 V AC
-

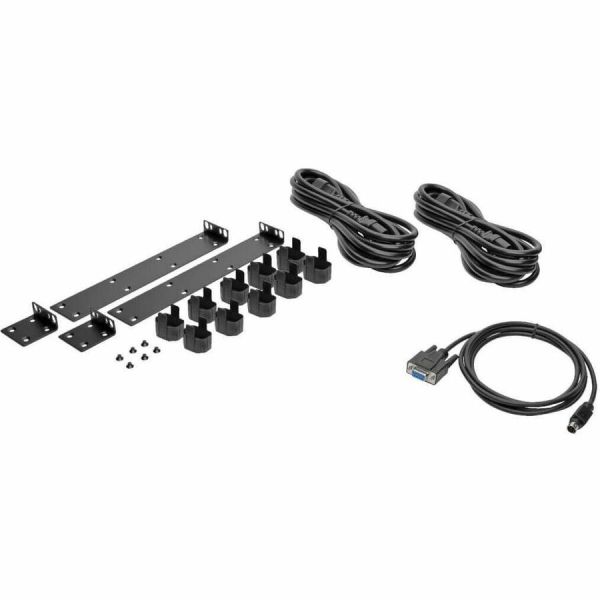

Package Contents16-Outlets PDU Detachable C19 To NEMA L5-20P Secondary Input Cord, 12 Ft. (3.7 m) 2 x L5-20R To 5-20P Plug Adapters Cable Retention Kit Rack-Mounting Hardware Owner's Manual
-
PhaseSingle Phase
-
Plug/Connector Detail2 x NEMA 5-20P 2 x NEMA L5-20P
-
Plug/Connector TypeNEMA 5-20P NEMA L5-20P
-
Power Rating (Watt)2030 W
-
Product Name16-Outlets PDU
-
Product TypePDU
-
Protection TypeCircuit Protection
-
Rack Height1U
-
Receptacle Detail16 x NEMA 5-15/20R
-
Receptacle TypeNEMA 5-15/20R
-
Width17.5"
