CyberPower PDU81001 100 - 120 VAC 15A Switched Metered-by-Outlet PDU
Product Number: SYNX4789459
$713.34
Loading...
Loading...

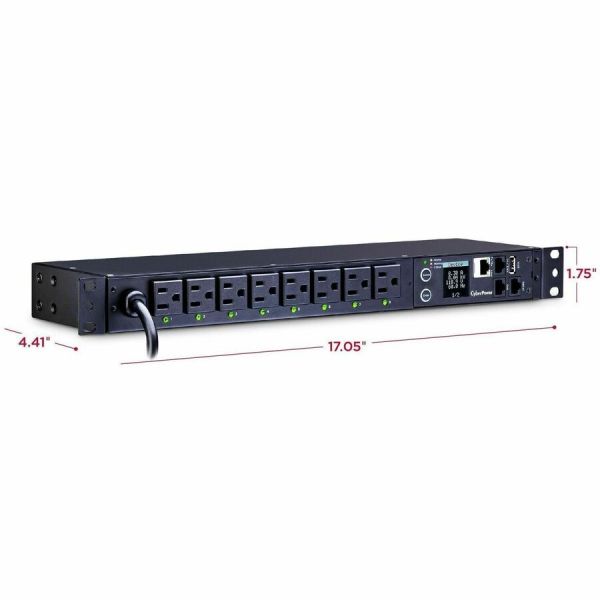

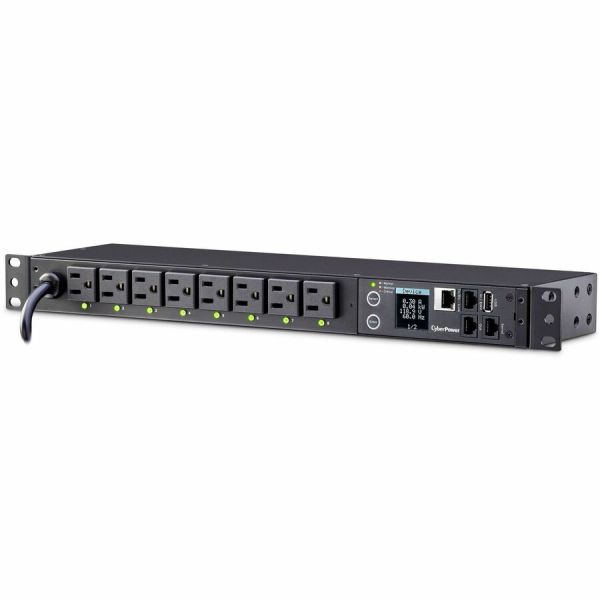

CyberPower PDU81001 100 - 120 VAC 15A Switched Metered-by-Outlet PDU
8 Outlets, 12 ft, NEMA 5-15P, Horizontal, 1U, LCD, 3YR Warranty
Description:
Streamline capacity planning and power management with the CyberPower PDU81001 switched, metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, automated load shedding, controlled power-cycling and more.
The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81001 is protected by a three-year limited warranty.
Provides active metering of each outlet, each circuit and PDU as a whole
Allows for local and remote on/off switching control of individual outlets
Provides immediate alerts about power events via email, SMS or SNMP traps
Connects to your LAN/WAN via standard RJ45 Ethernet connection
Includes 3-year limited warranty
The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81001 is protected by a three-year limited warranty.
Provides active metering of each outlet, each circuit and PDU as a whole
Allows for local and remote on/off switching control of individual outlets
Provides immediate alerts about power events via email, SMS or SNMP traps
Connects to your LAN/WAN via standard RJ45 Ethernet connection
Includes 3-year limited warranty
- Provides outlet-level power monitoring and individual outlet control for connected equipment.
- Input Plug Type: NEMA 5-15P, outlets: 8 NEMA 5-15R, input voltage: 100-120 V, Amps: 15A (Derated to 12A)
- Remote and local monitoring: enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
- Automatic event notifications: provide immediate updates about power events via email, SMS text, or SNMP Traps.
- PDU allows power to be more efficiently distributed and controlled
- NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
- NEMA 5-15P plug/connector type for efficient connectivity and feasible power output
- 120 V AC input voltage for better reliance and maximum dependability
-
Brand NameCyberPower
-
Country of OriginChina
-
Depth4.4"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Height1.8"
-
Input Current15 A
-
Input Voltage120 V AC
-
Limited Warranty3 Year
-
ManagementSNMP
-
Manufacturer Part NumberPDU81001
-
Mount TypeRack-mountable
-
Network (RJ-45)Yes
-
Package ContentsPDU81001 8-Outlet PDU 2 x Short Mounting Brackets 2 x Long Mounting Brackets 12 x M4x8 Screws 6 x M5X12 Screws/Washers Cord Retention Tray 6 x M3x6 Screws 12 x Cable Ties RJ45/DB9 Serial Cable User's Manual Registration & Download Cards
-
Plug/Connector TypeNEMA 5-15P
-
Product ModelPDU81001
-
Product NamePDU81001 8-Outlet PDU
-
Product SeriesSwitched Metered-by-Outlet PDU
-
Product TypePDU
-
Rack Height1U
-
Receptacle Detail8 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Width17.1"
