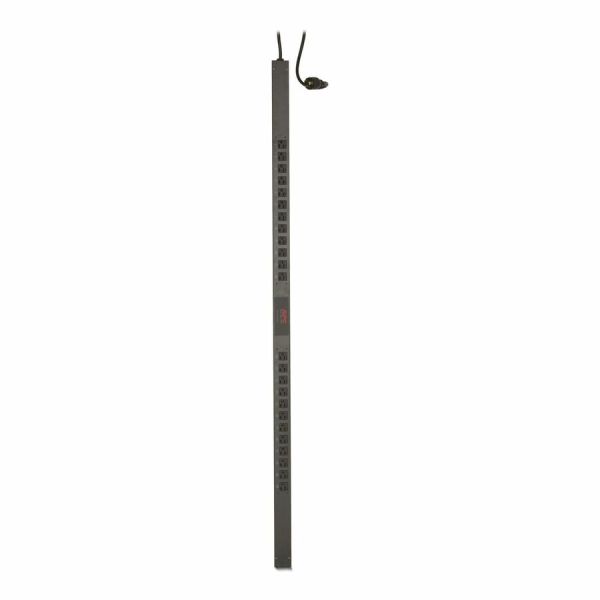

APC NetShelter Basic Rack PDU, Zero U, 20A, 120V, 24 NEMA 5-20 outlet

Product #: SYNX977265
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

APC NetShelter Basic Rack PDU, Zero U, 20A, 120V, 24 NEMA 5-20 outlet
Basic - NEMA L5-20P - 24 x NEMA 5-20R - 100 V, 120 V - 1920 W - 9.84 ft Cord Length - 0U - Vertical - Rack-mountable
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 24 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes cord retention brackets, an installation guide, rack mounting brackets, and a toolless mounting kit.
  • Supports up to 24 outlets, allowing for efficient power distribution in high-density environments
  • Mounts vertically in the rack, saving valuable rack space for other equipment
  • Easy installation with toolless mounting capabilities
  • Compatible with a variety of rack enclosures and power configurations
  • Evenly distributes power to rack-mount equipment; mounts vertically in rear of NetShelter VX
  • Multiple ways to install - using toolless mounting kit or mounting brackets
  • Provides additional clearance to prevent interference between the PDU and the side panel latch when installing
  • Easily connects to a power source without straining the 10' cord
  • Prevents electric surges from affecting electronic products
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Listed|UL Listed
  • Compatibility
    Cord Retention Bracket
  • Cord Length
    9.84 ft
  • Country of Origin
    India
  • Depth
    1.7"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759080&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Height
    63.7"
  • Input Voltage
    100 V 120 V
  • Lead Free
    Yes
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    AP7530
  • Mount Type
    Rack-mountable
  • Mounting Preference
    No Preference
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    120 V AC
  • Package Contents
    Basic Rack 1.92kVA PDU Cord retention bracket(s) Installation guide Rack mounting brackets Toolless mounting kit User manual
  • Parts Warranty/Labor
    2 Year
  • Placement
    Side
  • Plug/Connector Type
    NEMA L5-20P
  • Power Rating
    1.92 kVA
  • Power Rating (VA)
    1920 VA
  • Product Color
    Black
  • Product Line
    Basic Rack
  • Product Name
    Basic Rack 1.92kVA PDU
  • Product Take Back Program
    No
  • Product Type
    PDU
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759080&lang=en-us
  • REACH free of SVHC
    Yes
  • Rack Height
    0U
  • Receptacle Detail
    24 x NEMA 5-20R
  • Receptacle Type
    NEMA 5-20R
  • WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Width
    2.2"
