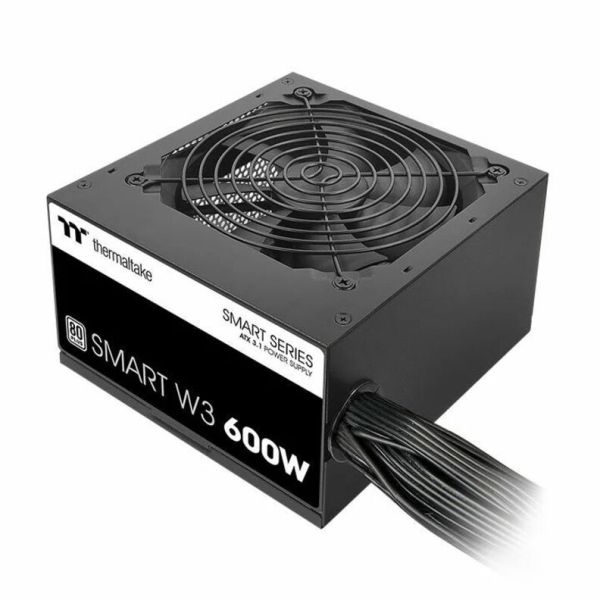

Thermaltake Smart W3 SP3-600AH2NLW 600W Power Supply
Product #:
ETLZ1081928284
+1View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Thermaltake Smart W3 SP3-600AH2NLW 600W Power Supply
Black - Internal - 120 V AC, 230 V AC Input - 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB Output - 600 W - Active PFC - 1 +12V Rails - PCI Express Connector - 1 Fan(s) - 80% Efficiency
Power up with Efficiency and Stability
The Smart W3 series is certified by 80 PLUS efficiency and designed to meet ATX 3.1 standards, offering 500W, 600W, and 700W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.
ATX 3.1 Ready
Smart W3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
2X Total Power Excursion
3X GPU Power Excursion
Silent Cooling
Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
High Quality 105°C/221°F Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart W3 series is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, Smart W3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
Non-Modular Soft Cable Design
Smart W3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
80 PLUS Certified and Intel C6/C7 States Ready
Smart W3 series saves energy through its high energy efficiency up to 80% and is certified to 80 PLUS. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
The Smart W3 series is certified by 80 PLUS efficiency and designed to meet ATX 3.1 standards, offering 500W, 600W, and 700W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.
ATX 3.1 Ready
Smart W3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
2X Total Power Excursion
3X GPU Power Excursion
Silent Cooling
Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
High Quality 105°C/221°F Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart W3 series is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, Smart W3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
Non-Modular Soft Cable Design
Smart W3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
80 PLUS Certified and Intel C6/C7 States Ready
Smart W3 series saves energy through its high energy efficiency up to 80% and is certified to 80 PLUS. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
- Supplies power to the electrical load to keep up with the power requirements
- 3.3 V DC ensures steady and uninterrupted power supply to your device
- Providing up to 600 W maximum output power
Product Specifications
-
Brand NameThermaltake
-
Certifications & StandardsCB FCC cTUVus ICES
-
Depth5.5"
-
Efficiency80%
-
Fan Bearing TypeFluid Dynamic Bearing
-
Fan Diameter120 mm
-
Form FactorInternal
-
Height3.4"
-
Input Frequency60Hz
-
Input Voltage120 V AC 230 V AC
-
Limited Warranty5 Year
-
Manufacturer Part NumberPS-SPW-0600NNFAWU-1
-
Maximum Operating Temperature104°F (40°C)
-
Minimum Operating Temperature41°F (5°C)
-
ModularNo
-
Number of (4+4 pin) CPU Power Connectors1
-
Number of (6+2 pin) PCI Express Power Connectors2
-
Number of +12V Rails1
-
Number of Fans1
-
Number of SATA Power Connectors4
-
Output Power600 W
-
Output Voltage3.3 V DC 5 V DC 12 V DC -12 V DC 5 V SB
-
PCI Express ConnectorYes
-
Power Factor Correction (PFC)Active
-
Product LineSmart W3
-
Product ModelSP3-600AH2NLW
-
Product NameSmart W3 SP3-600AH2NLW 600W Power Supply
-
Product TypePower Supply
-
Protection TypeOver Current Over Power Over Temperature Over Voltage Short Circuit Under Voltage
-
Width5.9"
