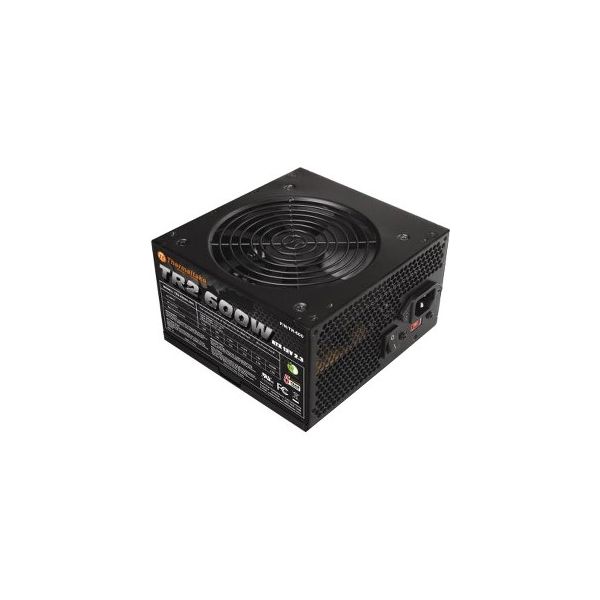

Thermaltake TR2-600NL2NC ATX12V & EPS12V Power Supply
Product Number: SYNX3044532
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Thermaltake TR2-600NL2NC ATX12V & EPS12V Power Supply
Internal - 110 V AC, 220 V AC Input - 600 W - 2 +12V Rails - ATI CrossFire Supported - NVIDIA SLI Supported - 72% Efficiency
Description:
TR2 series is designed with mainstream PC in mind. With Thermaltake's state-of-the-art circuitry design capability and advanced packaging technology, it is capable of providing the same level of high efficiency and power protection that you have come to expect from Thermaltake's full range of power supply. TR2 series power supply all carries an industry-leading 5 Year Limited Warranty for the ultimate piece of mind.
Related Articles
Need more information?
Ask a Question
Product Specifications
-
ATI CrossFire SupportedYes
-
Brand NameThermaltake
-
CompatibilityIntel CPUs: Core i5 Core i7
-
Depth5.5"
-
Efficiency72%
-
Form FactorInternal
-
Height3.4"
-
Input Voltage110 V AC 220 V AC
-
Input Voltage Range115 V AC to 230 V AC
-
Input Voltage TypeAC
-
Limited Warranty5 Year
-
MTBF100000 Hour
-
Manufacturer Part NumberTR-600
-
NVIDIA SLI SupportedYes
-
Number of +12V Rails2
-
Number of Fans1
-
Output Power600 W
-
Output Voltage-12 V DC @ 300 mA 12 V DC @ 20 A 12 V DC @ 23 A 3.3 V DC @ 22 A 5 V DC @ 18 A 5 V DC @ 2.50 A
-
Plug/ConnectorATX Logic on-off Power Rocker Switch
-
Product ModelTR2-600NL2NC
-
Product NameTR2-600NL2NC ATX12V & EPS12V Power Supply
-
Product SeriesTR2
-
Product TypePower Supply
-
Protection TypeOver Current Over Power Over Temperature Over Voltage Overload Short Circuit Under Voltage
-
Receptacles1 x 20+4pin ATX Motherboard 1 x 4+4pin ATX12V Motherboard 1 x 4-pin SP4 Floppy Drive 1 x 6+2pin PCI-E 1 x 6-pin PCI-E 4 x 4-pin LP4 Peripheral Device 6 x Serial ATA
-
Width5.9"
