Vertiv Liebert GXT5 3000VA 120V UPS with SNMP/Webcard
Product Number: SYNX5584848
$3,153.25
Loading...
Loading...
Product Description

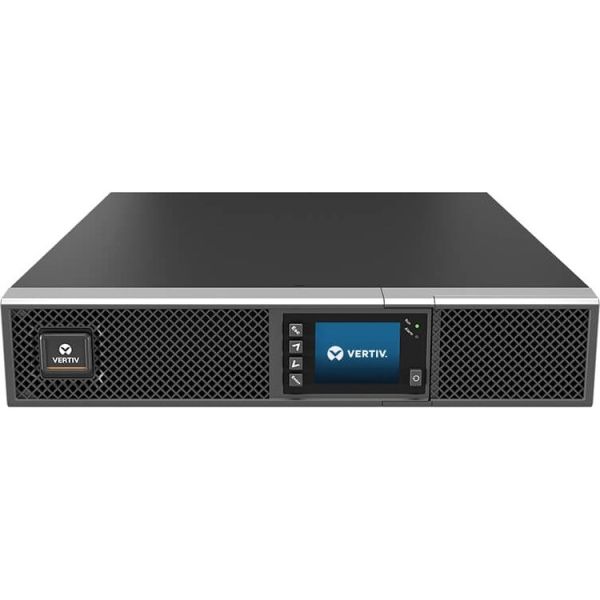

Vertiv Liebert GXT5 3000VA 120V UPS with SNMP/Webcard
2U Rack/Tower - 3 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - 1 x NEMA L5-30R, 6 x NEMA 5-15/20R
Description:
The Vertiv Liebert GXT5, 3000VA/2700W, Online Double Conversion UPS comes with Liebert RDU101 Communications Card is a 2U compact UPS system for ensuring health and availability of IT infrastructure. This intelligent and efficient UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This single-phase UPS can support a wide range of power environment including 110/115/120/125V AC power. The Liebert RDU101 communications card (for installation) with the free Vertiv Trellis Power Insight Application provides remote management capabilities for viewing up to 100 distributed units and supporting real-time environmental monitoring and alarm notifications. With Liebert RDU101, users can make more informed decisions and fast event resolution. The Vertiv Liebert GXT5 UPS has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It offers hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. The unit comes with a rack mounting hardware kit and base for tower installation in open environments. This UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a three-year factory warranty. The Vertiv Liebert GXT5 UPS provides premium power protection for critical infrastructure in centralized and edge applications.
More from the Manufacturer
More from the Manufacturer
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
- 3 batteries for better reliance and maximum dependability
- 12V battery size for better reliance and dependable usability
- 3 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Lead Acid battery chemistry delivers energy to the mission critical equipment through an easily controlled reaction
- NEMA L5-30P plug/connector type for convenient usage with added dependability
- NEMA L5-30R receptacle type offers maximum safety, convenience, and increased usability
- Single Phase phase for better reliability and ensure maximum productivity
- Double Conversion Online UPS with mission critical equipment application/usage to ensure maximum productivity with added feasibility
Product Specifications
-
Additional InformationCircuit Breaker: 30A Diagnostic LEDs: Full Color LCD Backup/Run Time (With Optional Battery): Scalable, Up to 10 EBC's Sound Emission: < 48db
-
Application/UsageMission Critical Equipment
-
Assembly RequiredNo
-
Backup/Run Time With External Battery Cabinet (Full Load)17 Minute
-
Backup/Run Time With External Battery Cabinet (Half Load)43.50 Minute
-
Battery ChemistryLead Acid
-
Battery Life5 Year
-
Battery Size12V
-
Brand NameLiebert
-
Certifications & StandardsUL1778, 4th Ed. FCC Part 15 Class A ANSI C62.41 Cat. B ISTA 1A
-
Circuit BreakerYes
-
Cord Length10 ft
-
Country of OriginChina
-
DC System Voltage12 V DC
-
Depth21.3"
-
EPO PortYes
-
Emergency Power OFFYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) 2 Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmental SensorsHumidity Sensor Leak Detection Sensor Temperature Sensor
-
Environmentally FriendlyYes
-

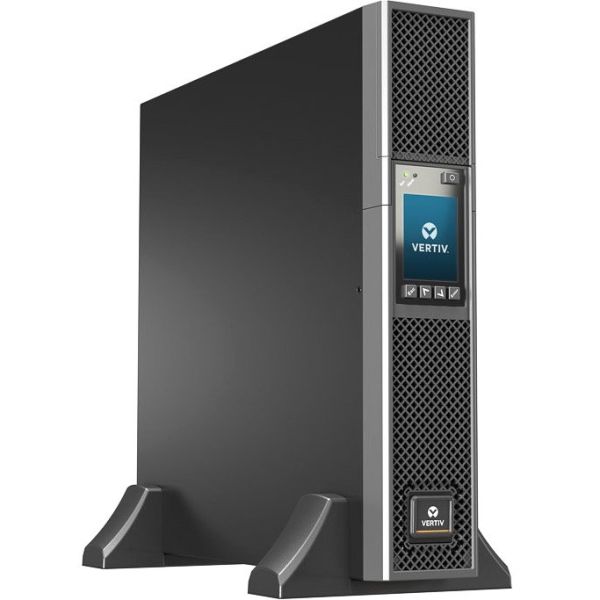

Form FactorRack/Tower
-
Height3.3"
-
Hot PluggableYes
-
Hot SwappableYes
-
Input Current24 A
-
Input Frequency60 Hz
-
Input Voltage120 V AC
-
Input Voltage Range110 V AC - 125 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)3000 VA
-
Load Capacity (Watt)2700 W
-
Manufacturer Part NumberGXT5-3000LVRT2UXLN
-
Maximum Operating Elevation9842.52 ft
-
Maximum Operating Temperature104°F (40°C)
-
Maximum Storage Elevation49212.60 ft
-
Modem (RJ-11)No
-
Network (RJ-45)Yes
-
Network ManagementSNMP Manageable
-
Number of Batteries3
-
Number of External Battery Cabinets1
-
Output Current25 A
-
Output Power4500 W
-
Output Voltage120 V AC
-
Package ContentsTower Stand USB Cable User Guide Safety Instruction Manual GXT5 3000VA 120V UPS with SNMP/Webcard 4 x Post Rack Mounting
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA L5-30P
-
Product ColorBlack
-
Product LineFlexPower
-
Product NameGXT5 3000VA 120V UPS with SNMP/Webcard
-
Product SeriesGXT
-
Product TypeDouble Conversion Online UPS
-
Rack Height2U
-
Receptacle Detail1 x NEMA L5-30R
-
Receptacle TypeNEMA L5-30R NEMA 5-15/20R
-
Serial PortYes
-
Software IncludedFree Download - Power Insight 2.2
-

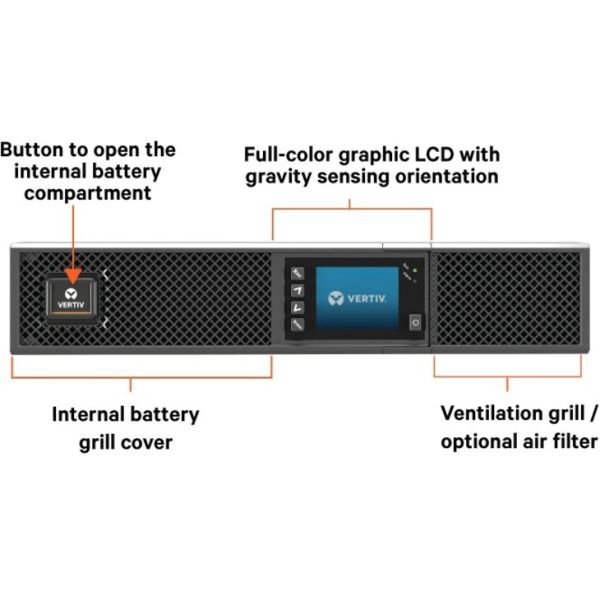

Status IndicatorsColor LCD
-
Storage Temperature-4°F (-20°C) - 140°F (60°C)
-
Transfer Time0 ns
-
Typical Battery Recharge Time3 Hour
-
USBYes
-
USB (HID Compliant) PortYes
-
User Selectable OutputTypical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3%
-
Utility (AC) Mode Overload>200% for 250ms 150- 200% for 2 seconds 125- 150% for 10 seconds 105-125% for 15 seconds
-
VGANo
-
Waveform TypePure Sine Wave
-
Width16.9"
