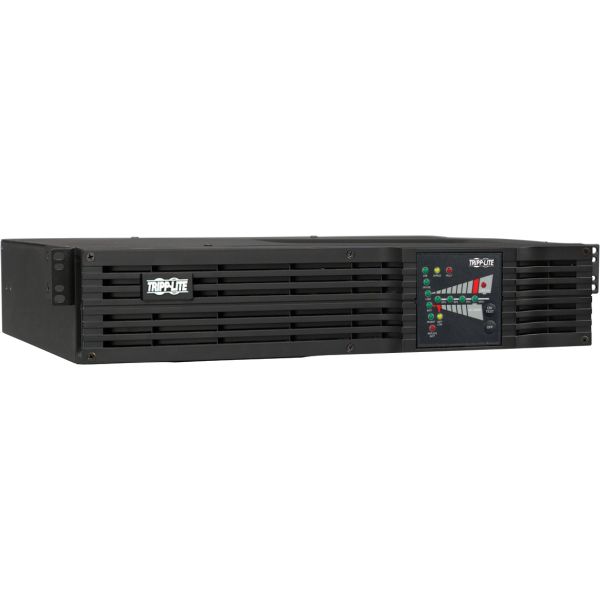

Tripp Lite by Eaton UPS 1500VA 1200W Smart Online Rackmount 100V-120V USB DB9 2URM

Product Number: SYNX1061147
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Tripp Lite by Eaton UPS 1500VA 1200W Smart Online Rackmount 100V-120V USB DB9 2URM
1500VA/1200W - 5 Minute Full Load - 6 x NEMA 5-15R
Description:
Requiring only two rack spaces (2U) in a standard rack enclosure, Tripp Lite's SU1500RTXL2Ua SmartOnline UPS System protects connected equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Featuring true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. Internal batteries support connected equipment during blackouts, and runtime is expandable with optional external battery packs. The SU1500RTXL2Ua has six outlets arranged in two individually controllable load banks that can be used to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert UPS monitoring and unattended shutdown software provides management support for an unlimited number of network UPS systems.
  • 1500VA / 1.5kVA / 1200 watt on-line double-conversion 2U rack/tower UPS
  • 100/110/120V +/-2% output at 50/60Hz, high efficiency economy mode option
  • Expandable runtime, Hot-swap batteries; 19 in / 48.3cm installed depth
  • USB, RS232 & EPO ports; support for SNMP/WEB card options
  • Front panel status LEDs with detailed load and battery metering
  • 2 independently switchable output load banks
  • NEMA 5-15P input; 5-15R outlets
  • Double Conversion Online UPS allows convenient, long-time usage with increased efficiency
  • Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
  • 5 Hour typical battery recharge time for better convenience and prolonged, productive usage
  • NEMA 5-15P plug/connector type for a secure, feasible operation
  • NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
  • 100 V AC input voltage for optimal performance with maximum usability
  • 100 V AC output voltage for optimal performance with maximum feasibility
  • Rack/Tower form factor for your convenience and simplicity of usage
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Information
    SmartOnline high-performance UPS system is ideal for critical voice, data, medical and industrial network applications Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve power problems not addressed by other UPS types
  • Brand Name
    Tripp Lite by Eaton
  • Bypass Switch
    Automatic
  • Country of Origin
    China
  • Dataline Protection
    RJ-45
  • Depth
    19"
  • Emergency Power OFF
    Yes
  • Form Factor
    Rack/Tower
  • Height
    3.5"
  • Hot Swappable
    Yes
  • Input Current
    12 A
  • Input Voltage
    110 V AC 100 V AC 120 V AC
  • Limited Warranty
    2 Year
  • Load Capacity
    1500 VA/1200 W
  • Manufacturer Part Number
    SU1500RTXL2UA
  • Network Management
    SNMP Manageable
  • Output Voltage
    120 V AC 100 V AC 110 V AC
  • Package Contents
    SMART ONLINE UPS 1500VA XL RM 2U TWR 120V 5-15P 6OUT USB SER SLOT SU1500RTXL2Ua Online Double-Conversion UPS System PowerAlert Software and cabling Mounting hardware for 4 post rack enclosures Instruction manual with warranty information
  • Plug/Connector Type
    NEMA 5-15P
  • Product Line
    SmartOnline
  • Product Model
    SU1500RTXL2Ua
  • Product Name
    SmartOnline SU1500RTXL2Ua 1500VA Tower/Rack-mountable UPS
  • Product Type
    Double Conversion Online UPS
  • Rack Height
    2U
  • Receptacle Detail
    6 x NEMA 5-15R
  • Receptacle Type
    NEMA 5-15R
  • Recycled
    No
  • Serial Port
    Yes
  • Software Included
    PowerAlert Software
  • Typical Battery Recharge Time
    5 Hour
  • USB
    Yes
  • Width
    17.5"
