Tripp Lite by Eaton AVR Series Ultra-Compact Line-Interactive UPS, 12 Outlets, 900 VA, 420 J

Product Specifications

• AVR
  Yes
• AVR Range
  Boost +18% / Buck -15%
• Additional Information
  Sine wave 120V +14% / -12% (line mode) Line Mode: Passes line frequency of 60Hz +/-10% Battery Mode: Inverter output regulated to 60Hz +/-0.5Hz Appearance: All black ultra-compact housing Output voltage regulation: PWM sine wave 115V +/-5% (battery mode) Output frequency regulation:
• Additional Warranty Information
  3-Year Limited
• Alarm
  Battery Backup Fault Low Battery Overload Replace Battery
• Assembly Required
  No
• Automatic Voltage Regulation (AVR)
  Yes
• Backup Time at Half Load
  10 min @ 240 W
• Batteries
  Lead Acid Hot-swappable
• Battery Chemistry
  Lead Acid
• Battery Run Time
  3 min
• Brand Name
  Tripp Lite by Eaton
• Certifications & Standards
  UL Listed Certification
• Charge Time
  8 hr
• Color
  Black
• Color(s)
  Black
• Color Family
  Black
• Connected Equipment Guarantee/Warranty
  $100,000 Ultimate Lifetime Insurance
• Connector/Port/Interface
  USB
• Cord Length
  6 ft
• Country of Origin
  CN
• DC System Voltage
  12 V DC
• Depth
  12 in.
• Diagnostics/Alarm/Status Light
  Alarm LED
• Dimensions
  3-1/10 in. X 7-31/64 in. X 12 in.
• Disclaimer Statement
  Run Time based on single PC load with 15" flat panel monitor.
• EMI/RFI Noise Filter
  Yes
• Environmental Compliance
  Restriction of Hazardous Substances (RoHS)
• Features
  UL Listed
• Form Factor
  Ultra-compact Desktop/Tower/Wall Mount
• Frequency Response
  50Hz to 20kHz
• Global Product Type
  Backup Systems
• Height
  3-1/10 in.
• Housing Material
  ABS Plastic
• Input Frequency
  60 Hz
• Input Voltage
  120 V
• Jacks/Ports
  RJ11
• Joules Of Surge Protection
  420 J
• Limited Warranty
  3 Year
• Lines
  1
• Load Capacity (VA)
  900 VA
• Load Capacity (Watt)
  480 W
• Manufacturer
  TRIPP LITE
• Manufacturer Part Number
  AVR900U
• Manufacturer Website Address
  www.tripplite.com
• Marketing Information

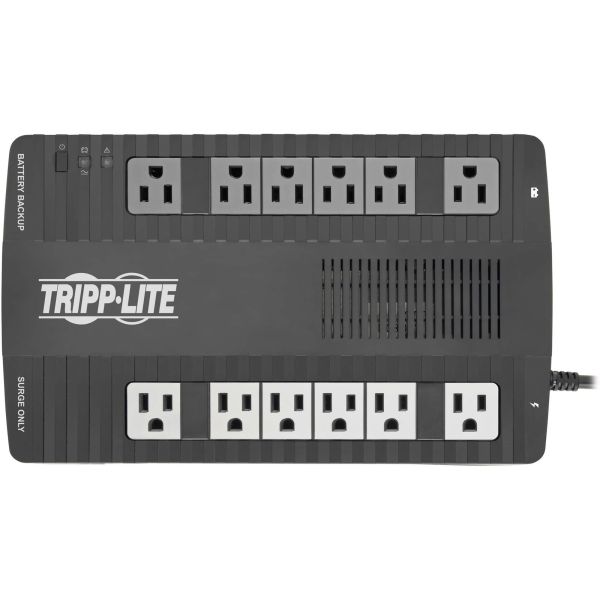

  Tripp Lite's AVR900U line-interactive UPS offers complete protection for PCs, workstations and other sensitive electronics in an ultra-compact, mountable housing. Prevents data loss and system downtime by providing battery-supported AC output during blackouts and Automatic Voltage Regulation (AVR) during brownouts and overvoltages. Includes 12 output receptacles, 4 of which are widely spaced to accommodate large transformer blocks without obstructing adjacent outlets. 6 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from power loss. 6 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support. Single-line telephone suppression jacks protect modems, fax machines, cordless phones or other equipment with a DSL or standard dialup RJ-11 phone line connection. Built-in splitter protects two devices sharing a single line. USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown in case of extended power failure. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 900VA/480 watt power-handling ab
• Maximum Operating Temperature
  104°F (40°C)
• Model
  UPS 900VA 480W Desktop Battery Back Up AVR Compact 120V USB RJ11
• Model Name/Number
  AVR900U
• Multimedia Protection
  DSL/Telephone
• Noise Protection
  EMI/RFI Noise Suppression
• Number of Battery & Surge Outlets
  6
• Number of Outlets
  12
• Number of Outlets/Type
  6 Surge Only 6 UPS/Surge
• Number of Surge-only Outlets
  6
• Number of USB Ports
  0
• Output Frequency
  60 Hz
• Output Voltage
  110 V; 115 V; 120 V
• Package Contents
  AVR 900VA Desktop UPS Owner's manual
• Phase
  Single Phase
• Plug/Connector Type
  NEMA 5-15P
• Post-Consumer Recycled Content Percent
  0%
• Power Capacity
  900 VA
• Pre-Consumer Recycled Content Percent
  0%
• Product Name
  AVR 900VA Desktop UPS
• Product Series
  AVR
• Product Type
  Standalone Uninterruptable Power Supply (UPS)
• Protection Type
  DSL Fax Modem Phone Power DSL Fax Modem Phone Power
• Receptacle Detail
  12 x NEMA 5-15R
• Receptacle Type
  NEMA 5-15R
• Recycled
  No
• Refurbished
  N
• Replaceable Battery
  Yes
• Software Included
  PowerAlert Software
• Status Indicators
  2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
• Storage Temperature
  5°F (-15°C) - 113°F (45°C)
• Surge Energy Rating
  316 J
• System VA
  900 VA
• Telephone/Internet Protection
  DSL Fax Modem Phone
• Total Recycled Content Percent
  0%
• Transfer Time
  6 ms
• Typical Battery Recharge Time
  8 Hour
• USB
  Yes
• USB (HID Compliant) Port
  Yes
• Waveform Type
  Pulse-width Modulated Sine Wave
• Weight (Approximate)
  15.30 lb
• Width
  7-31/64 in.
