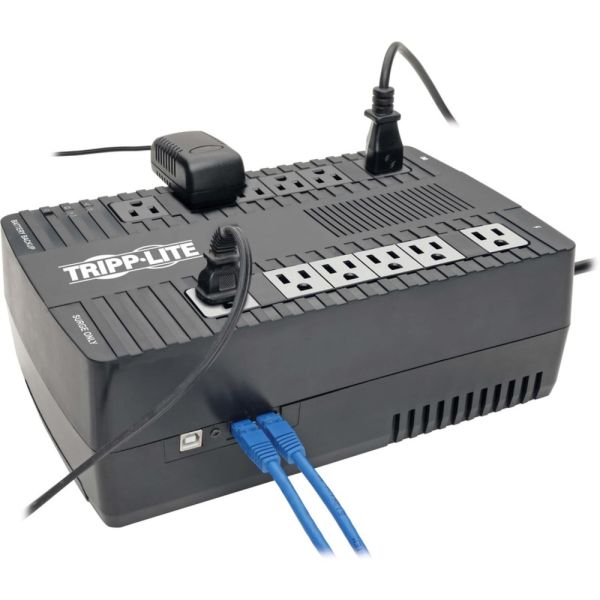

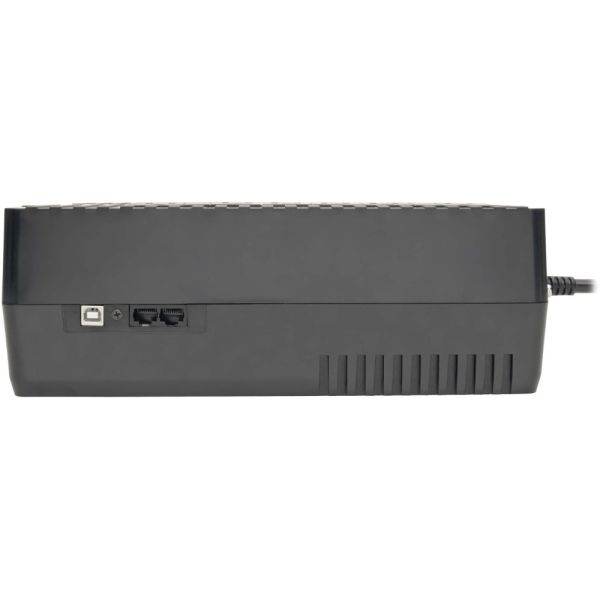

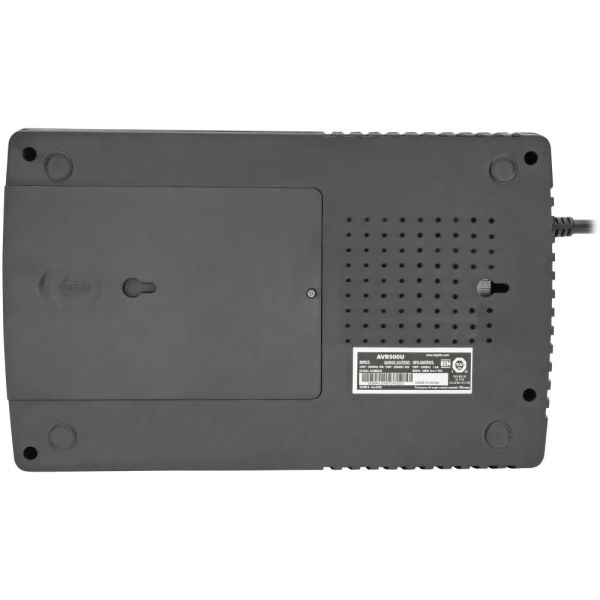

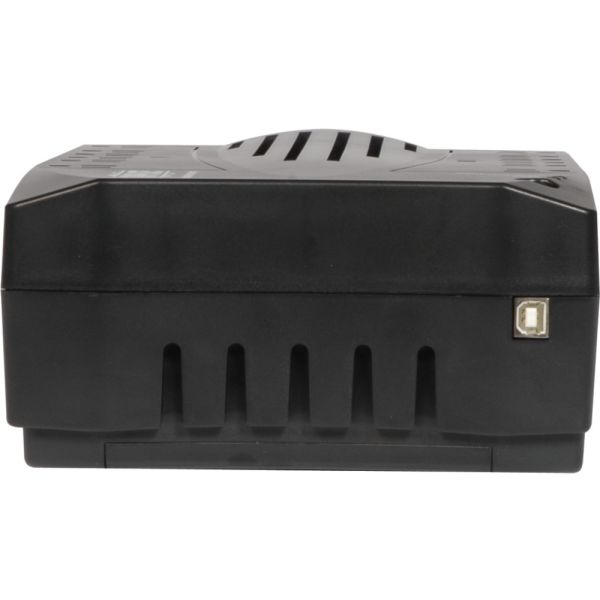

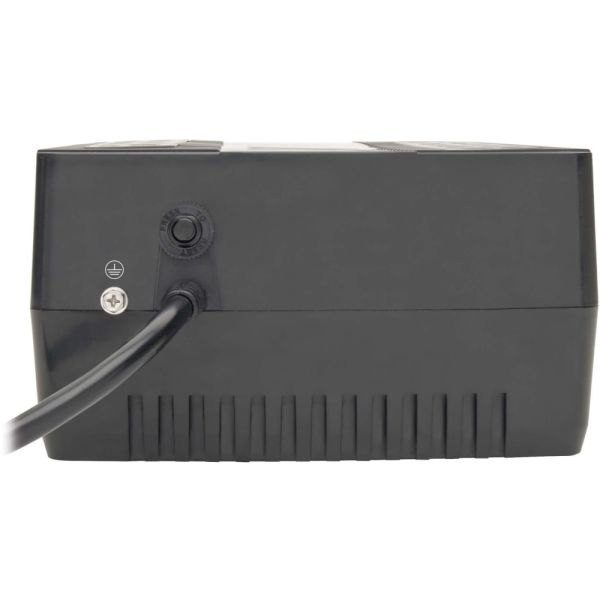

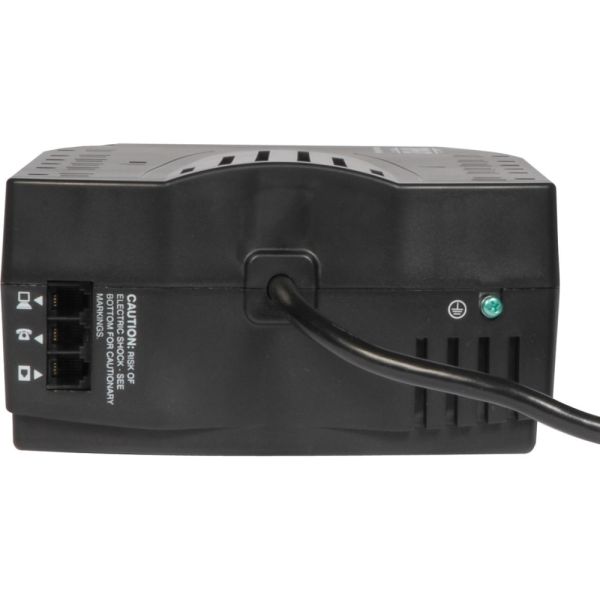

Tripp Lite by Eaton AVR Series Ultra-Compact Line-Interactive UPS, 12 Outlets, 900 VA, 420 J
Product Number: TRPAVR900UOther Product Options
Tripp Lite by Eaton AVR Series Ultra-Compact Line-Interactive UPS, 12 Outlets, 900 VA, 420 J
Ultra-compact Desktop/Tower/Wall Mount - AVR - 8 Hour Recharge - 2.70 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - USB - 12 x NEMA 5-15R - 6 x Battery/Surge Outlet
$129.37
Loading...
Loading...
Tripp Lite by Eaton AVR Series Ultra-Compact Line-Interactive UPS, 12 Outlets, 900 VA, 420 J
Ultra-compact Desktop/Tower/Wall Mount - AVR - 8 Hour Recharge - 2.70 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - USB - 12 x NEMA 5-15R - 6 x Battery/Surge Outlet
Description:
AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
More from the Manufacturer
More from the Manufacturer
- UPS circuits prevent interruption or data loss during power failures
- AVR power conditioning keeps operation during brownouts and overvoltages
- Surge-only outlets offer protection for items not requiring battery support
- AC and dataline surge suppression prevents connected equipment damage
- Perfect for protecting desktop computers, network workstations and more
- Helps save energy — designed to limit the energy used by other products, potentially helping you reduce your carbon footprint and save money.
Read More
-
AVRYes
-
AVR RangeBoost +18% / Buck -15%
-
Additional InformationSine wave 120V +14% / -12% (line mode) Line Mode: Passes line frequency of 60Hz +/-10% Battery Mode: Inverter output regulated to 60Hz +/-0.5Hz Appearance: All black ultra-compact housing Output voltage regulation: PWM sine wave 115V +/-5% (battery mode) Output frequency regulation:
-
Additional Warranty Information3-Year Limited
-
AlarmBattery Backup Fault Low Battery Overload Replace Battery
-
Assembly RequiredNo
-
Automatic Voltage Regulation (AVR)Yes
-
Backup Time at Half Load10 min @ 240 W
-
BatteriesLead Acid Hot-swappable
-
Battery ChemistryLead Acid
-
Battery Run Time3 min
-
Brand NameTripp Lite by Eaton
-
Certifications & StandardsUL Listed Certification
-
Charge Time8 hr
-
ColorBlack
-
Color(s)Black
-
Color FamilyBlack
-
Connected Equipment Guarantee/Warranty$100,000 Ultimate Lifetime Insurance
-
Connector/Port/InterfaceUSB
-
Cord Length6 ft
-
Country of OriginCN
-
DC System Voltage12 V DC
-
Depth12 in.
-
Diagnostics/Alarm/Status LightAlarm LED
-
Dimensions3-1/10 in. X 7-31/64 in. X 12 in.
-
Disclaimer StatementRun Time based on single PC load with 15" flat panel monitor.
-
EMI/RFI Noise FilterYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
FeaturesUL Listed
-
Form FactorUltra-compact Desktop/Tower/Wall Mount
-
Frequency Response50Hz to 20kHz
-
Global Product TypeBackup Systems
-
Height3-1/10 in.
-
Housing MaterialABS Plastic
-
Input Frequency60 Hz
-
Input Voltage120 V
-
Jacks/PortsRJ11
-
Joules Of Surge Protection420 J
-
Limited Warranty3 Year
-
Lines1
-
Load Capacity (VA)900 VA
-
Load Capacity (Watt)480 W
-
ManufacturerTRIPP LITE
-
Manufacturer Part NumberAVR900U
-
Manufacturer Website Addresswww.tripplite.com
-
Marketing InformationTripp Lite's AVR900U line-interactive UPS offers complete protection for PCs, workstations and other sensitive electronics in an ultra-compact, mountable housing. Prevents data loss and system downtime by providing battery-supported AC output during blackouts and Automatic Voltage Regulation (AVR) during brownouts and overvoltages. Includes 12 output receptacles, 4 of which are widely spaced to accommodate large transformer blocks without obstructing adjacent outlets. 6 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from power loss. 6 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support. Single-line telephone suppression jacks protect modems, fax machines, cordless phones or other equipment with a DSL or standard dialup RJ-11 phone line connection. Built-in splitter protects two devices sharing a single line. USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown in case of extended power failure. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 900VA/480 watt power-handling ab
-
Maximum Operating Temperature104°F (40°C)
-
ModelUPS 900VA 480W Desktop Battery Back Up AVR Compact 120V USB RJ11
-
Model Name/NumberAVR900U
-
Multimedia ProtectionDSL/Telephone
-
Noise ProtectionEMI/RFI Noise Suppression
-
Number of Battery & Surge Outlets6
-
Number of Outlets12
-
Number of Outlets/Type6 Surge Only 6 UPS/Surge
-
Number of Surge-only Outlets6
-
Number of USB Ports0
-
Output Frequency60 Hz
-
Output Voltage110 V; 115 V; 120 V
-
Package ContentsAVR 900VA Desktop UPS Owner's manual
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA 5-15P
-
Post-Consumer Recycled Content Percent0%
-
Power Capacity900 VA
-
Pre-Consumer Recycled Content Percent0%
-
Product NameAVR 900VA Desktop UPS
-
Product SeriesAVR
-
Product TypeStandalone Uninterruptable Power Supply (UPS)
-
Protection TypeDSL Fax Modem Phone Power DSL Fax Modem Phone Power
-
Receptacle Detail12 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
RecycledNo
-
RefurbishedN
-
Replaceable BatteryYes
-
Software IncludedPowerAlert Software
-
Status Indicators2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
-
Storage Temperature5°F (-15°C) - 113°F (45°C)
-
Surge Energy Rating316 J
-
System VA900 VA
-
Telephone/Internet ProtectionDSL Fax Modem Phone
-
Total Recycled Content Percent0%
-
Transfer Time6 ms
-
Typical Battery Recharge Time8 Hour
-
USBYes
-
USB (HID Compliant) PortYes
-
Waveform TypePulse-width Modulated Sine Wave
-
Weight (Approximate)15.30 lb
-
Width7-31/64 in.
