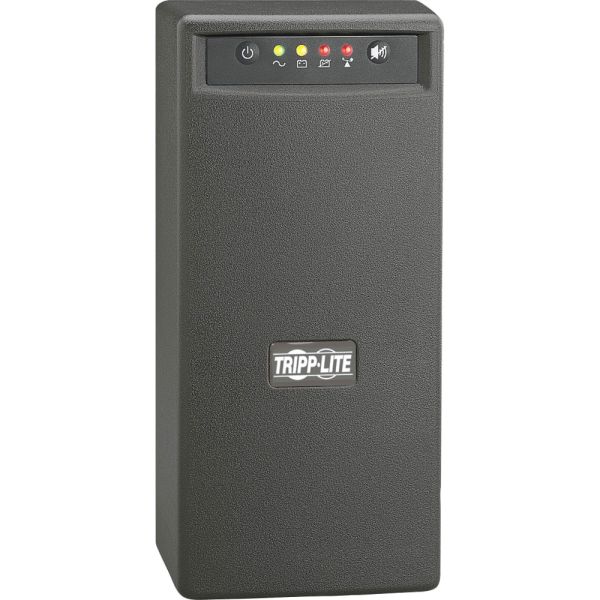

Tripp Lite by Eaton OmniVS Line-Interactive UPS Tower, 8 Outlets, 1,000 VA, 510 J

Product Specifications

• Additional Information
  The full load runtime is 3.5 minutes. Half load runtime is 14 minutes.
• Additional Warranty Information
  2 year warranty. $200,000 connected equipment insurance (USA & Canada Only).
• Alarm
  On Battery
• Assembly Required
  No
• Automatic Voltage Regulation (AVR)
  Yes
• Backup Time at Full Load
  3.5 min @ 500 W
• Backup Time at Half Load
  14 min @ 250 W
• Battery Chemistry
  Lead Acid
• Battery Life
  6 Year
• Battery Recharge Time
  4 h
• Battery Run Time
  3.5 min
• Brand Name
  Tripp Lite by Eaton
• Certifications & Standards
  UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
• Charge Time
  2 hr
• Color(s)
  Black
• Connected Equipment Guarantee/Warranty
  $200,000 Ultimate Lifetime Insurance
• Connector/Port/Interface
  USB
• Cord Length
  6 ft
• Country of Origin
  CN
• Dataline Protection
  RJ-45
• Depth
  7-1/4 in.
• Diagnostics/Alarm/Status Light
  Alarm LED
• Dimensions
  10-8/10 in. X 5-1/4 in. X 7-1/4 in.
• Disclaimer Statement
  Run Time based on single PC load with 15" flat panel monitor.
• Emergency Power Off (EPO)
  No
• Form Factor
  Tower
• Global Product Type
  Backup Systems
• Height
  10-8/10 in.
• Input Frequency
  60 Hz 60 Hz
• Input Voltage
  110 V AC
• Jacks/Ports
  RJ11 RJ45
• Joules Of Surge Protection
  510 J
• Limited Warranty
  3 Year
• Lines
  1
• Load Capacity (VA)
  1000 VA
• Load Capacity (Watt)
  500 W
• Manufacturer
  TRIPP LITE
• Manufacturer Part Number
  OMNIVS1000
• Manufacturer Website Address
  www.tripplite.com
• Marketing Information
  Line interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 83 volts back to usable levels without using battery power. Includes six battery-supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line RJ phone suppression jacks protect modem, fax machine or cordless phone with a standard dial-up/DSL phone connection. Offers 7-minute battery run-time with a full load of 1000VA/500 watts and 18 minutes with a half load of 500VA/250 watts.
• Maximum Operating Temperature
  122°F (50°C)
• Model
  UPS 1000VA 500W Battery Back Up Tower AVR 120V USB RJ45
• Model Name/Number
  Omni VS OMNIVS1000
• Multimedia Protection
  DSL/Ethernet/Telephone
• Network Management
  Not Applicable
• Number of Outlets
  8
• Number of Outlets/Type
  6 UPS/Surge 2 Surge Only
• Output Voltage
  120 V AC
• Package Contents
  OMNIVS1000 Line Interactive UPS USB and telephone cable User manual with warranty information
• Plug/Connector Type
  NEMA 5-15P
• Post-Consumer Recycled Content Percent
  0%
• Power Capacity
  1000 VA
• Pre-Consumer Recycled Content Percent
  0%
• Product Color
  Black
• Product Line
  Omni
• Product Name
  8-Outlet Line Interactive UPS System
• Product Series
  VS
• Product Type
  Standalone Uninterruptable Power Supply (UPS)
• Protection Type
  DSL Ethernet Fax Modem Phone Power DSL Ethernet Fax Modem Phone Power
• React Time
  Instantaneous
• Receptacle Detail
  2 x NEMA 5-15R 6 x NEMA 5-15R
• Receptacle Type
  NEMA 5-15R
• Recycled
  No
• Refurbished
  N
• Shipping Dimensions
  14" Height x 8.50" Width x 10.50" Depth
• Shipping Weight (Approximate)
  24.60 lb
• Status Indicators
  4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation
• Surge Energy Rating
  480 J
• System Requirements
  TYPICAL APPLICATIONS: Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common.
• System VA
  1,000 VA
• Telephone/Internet Protection
  DSL Ethernet Fax Modem Phone
• Temperature
  32?F (0?C) to 104?F (40?C) Operating 5?F (-15?C) to 122?F (50?C) Storage
• Total Recycled Content Percent
  0%
• Transfer Time
  4 ms
• Typical Battery Recharge Time
  4 Hour
• USB
  Yes
• Waveform Type
  Pulse-width Modulated Sine Wave
• Weight (Approximate)
  21 lb
• Width
  5-1/4 in.
