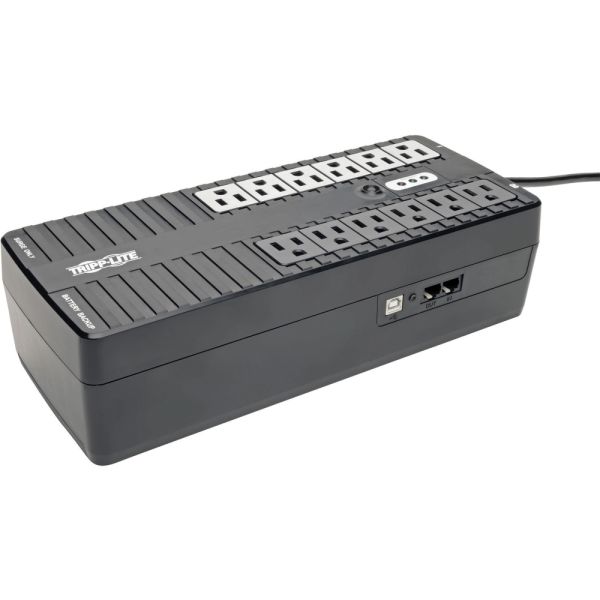

Tripp Lite by Eaton Internet Office Ultra-Compact Desktop Standby UPS, 12 Outlets, 750 VA, 420 J

Product Specifications

• Additional Information
  INTERNET750U standby UPS offers complete protection from blackouts, brownouts and surges on AC and tel/DSL dataline connections 12 widely spaced outlets accommodate large transformer plugs without blocking outlets 6 battery-supported outlets protect computers and vital system peripherals. 6 surge suppression-only outlets protect system accessories that do not require battery support Provides battery-derived AC output during blackouts and brownouts 750VA/450W power handling ability supports a variety of PCs, workstations and other sensitive electronics Supports entry-level PC systems up to 35 min. during blackouts Single-line tel/DSL surge suppression with line splitter protects two directly connected modems, fax machines or cordless phones sharing a single phone line connection USB port, FREE PowerAlert Software and cabling provide monitoring of site power conditions HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment; ideal for unattended kiosk applications Hot-swap battery replacement supported via battery access door Space-saving ultra-compact housing Keyhole mounting flanges enable secure wallmount installation $100,000 Ultimate Lifetime Insurance protects connected equipment from surge damage (USA & Canada only)
• Additional Warranty Information
  3-Year Limited
• Alarm
  Self-test Operation On Battery
• Application/Usage
  Audio System Blu-ray Player Commercial Desktop Computer Digital Signage DVR Gaming Console Home Theater Home/Office Media Center Media Player Printer Router Server TV
• Assembly Required
  No
• Automatic Voltage Regulation (AVR)
  No
• Backup/Run Time
  0.18 Hour 265.17 W Half Load 0.04 Hour 530.33 W Full Load
• Backup Time at Full Load
  3 min @ 750 V
• Backup Time at Half Load
  11 min @ 225 W
• Battery Chemistry
  Lead Acid
• Battery Life
  6 Year
• Battery Recharge Time
  4 h
• Battery Run Time
  2 min
• Brand Name
  Tripp Lite by Eaton
• Certifications & Standards
  UL1778 (USA) cUL (Canada) FCC Class B (emissions) NOM (Mexico) FCC Part 68 / Industry Canada (telecommunications) Conforms to IEEE 587 / ANSI C62.41 specifications
• Charge Time
  6.5 hr
• Color
  Black
• Color(s)
  Black
• Color Family
  Black
• Connected Equipment Guarantee/Warranty
  $100,000 Ultimate Lifetime Insurance
• Connector/Port/Interface
  USB
• Cord Length
  5 ft
• Country of Origin
  CN
• Dataline Protection
  RJ-11
• Depth
  12 in.
• Dimensions
  3-1/10 in. X 7-31/64 in. X 12 in.
• Directly Connected Equipment Guarantee
  $100000
• Disclaimer Statement
  Run Time based on single PC load with 15" flat panel monitor.
• Emergency Power Off (EPO)
  No
• Energy Efficiency Certification
  ENERGY STAR 2.0
• Form Factor
  Ultra-compact Desk-mount
• Frequency Response
  50Hz to 20kHz
• Global Product Type
  Backup Systems
• Height
  3-1/10 in.
• Hot Swappable
  Yes
• Input Frequency
  60 Hz 60 Hz
• Input Voltage
  110 V AC
• Joules Of Surge Protection
  420 J
• Limited Warranty
  3 Year
• Load Capacity (VA)
  750 VA
• Load Capacity (Watt)
  450 W
• Manufacturer
  TRIPP LITE
• Manufacturer Part Number
  INTERNET750U
• Manufacturer Website Address
  www.tripplite.com
• Marketing Information
  Use Internet Office UPS to stay connected to the Internet and work through short blackouts with phone/modem/DSL protection, a USB port and PowerAlert Software (website download). 1-RJ11 and 1 USB port protection.
• Maximum Operating Temperature
  104°F (40°C)
• Model
  UPS 750VA 450W Eco Green Battery Back Up Compact 120V USB RJ11 50/60Hz
• Modem (RJ-11)
  Yes
• Network Management
  Not Applicable
• Number of Battery & Surge Outlets
  6
• Number of Outlets
  12
• Number of Outlets/Type
  6 UPS/Surge 6 Surge Only
• Number of Surge-only Outlets
  6
• Output Voltage
  120 V AC
• Package Contents
  USB cable and phone cord Internet Office 750VA UPS Instruction manual with warranty information
• Plug/Connector Type
  NEMA 5-15P
• Post-Consumer Recycled Content Percent
  0%
• Power Capacity
  750 VA
• Pre-Consumer Recycled Content Percent
  0%
• Product Color
  Black
• Product Model
  INTERNET750U
• Product Name
  750VA 6UPS/Surge and 6 Surge UPS System
• Product Type
  Standalone Uninterruptable Power Supply (UPS)
• Protection Type
  Black Out Brownout Line Noise Over Voltage Surge
• React Time
  Instantaneous
• Receptacle Detail
  12 x NEMA 5-15R
• Receptacle Type
  NEMA 5-15R
• Recycled
  No
• Refurbished
  N
• Shipping Dimensions
  5.50" Height x 14.50" Width x 9.75" Depth
• Shipping Weight (Approximate)
  16.50 lb
• Software Included
  PowerAlert Software
• Status Indicators
  2 LEDs indicate on/off and overload/check battery
• Surge Energy Rating
  380 J
• System Requirements
  TYPICAL APPLICATIONS: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices.
• System VA
  750 VA
• Telephone/Internet Protection
  Fax Modem Phone
• Temperature
  32?F (0?C) to 104?F (40?C) Operating
• Total Recycled Content Percent
  0%
• Transfer Time
  4 ms
• Typical Battery Recharge Time
  4 Hour
• USB
  Yes
• Waveform Type
  Pulse-width Modulated Sine Wave
• Weight (Approximate)
  15.50 lb 8.70 lbs.
• Width
  7-31/64 in.
