APC by Schneider Electric Smart-UPS 1500 LCD RM 2U 100V
Product Number: SYNX3370819
$1,267.05
Loading...
Loading...

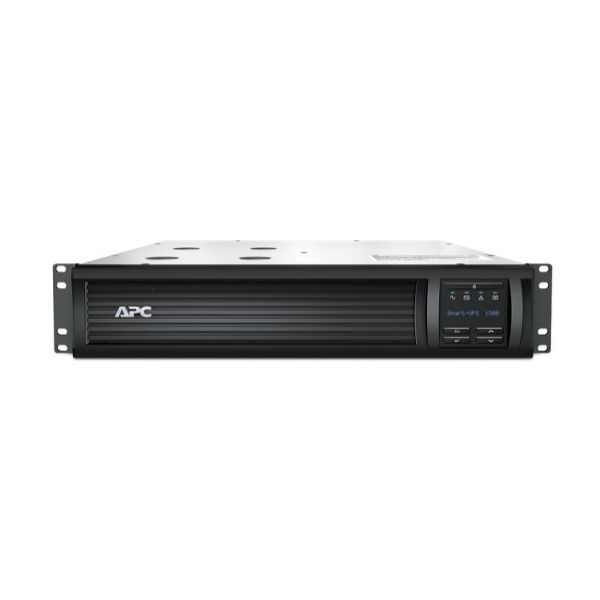

APC by Schneider Electric Smart-UPS 1500 LCD RM 2U 100V
2U Rack-mountable - 4 Hour Recharge - 110 V AC Input - 100 V AC Output - Sine Wave - Serial Port - USB - 6 x NEMA 5-15R - 6 x Battery/Surge Outlet
Description:
APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
- Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency - Reduces utility costs, generates less heat.

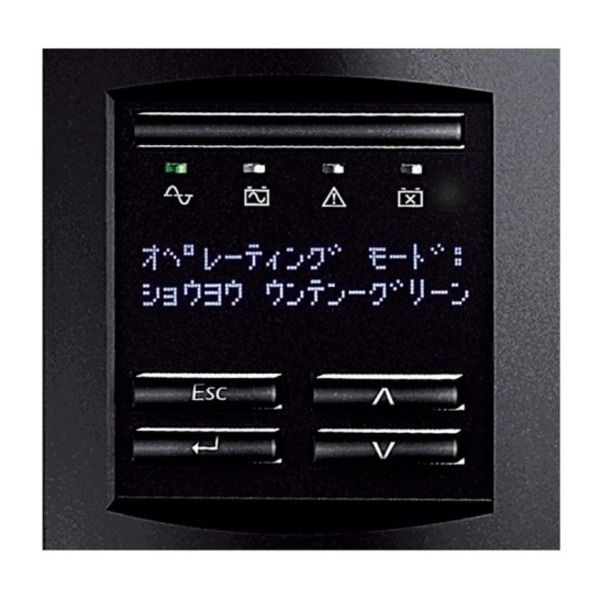

- Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot - Customize UPS capabilities with management cards.
- Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
- Experience higher efficiency with lower energy cost
- Prevent critical data loss by staying powered during a blackout with up to 1200 W load capacity
- 1200 VA load capacity provides sufficient backup during power failures
- 4 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Lead Acid battery chemistry for your convenience and better usability
- NEMA 5-15P plug/connector type for a secure, feasible operation
- NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
- 110 V AC input voltage for optimal performance with maximum usability
- 100 V AC output voltage for optimal performance with maximum feasibility
- Rack-mountable line-interactive ups allows easy and convenient usage without any hassle
- 1200 W load capacity - backup power for your valuable electronics
- 1200 VA load capacity - work without any interruption during power outages
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- 110 V AC input voltage for maximum feasibility and added productivity
- 100 V AC output voltage for better reliance and maximum usability
- Rack-mountable line-interactive ups allows maximum space utilization with easy and convenient access to the keyboard
Related Articles
Need more information?
Ask a Question
-
Additional InformationThis product is for Japan only
-
Battery ChemistryLead Acid
-
Brand NameAPC by Schneider Electric
-
Certifications & StandardsUL 1778 VCCI Class A UL 1449
-
Depth18.4"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Height3.4"
-
Hot SwappableYes
-
Input Voltage110 V AC
-
Limited Warranty2 Year
-
Load Capacity (VA)1200 VA
-
Load Capacity (Watt)1200 W
-
Manufacturer Part NumberSMT1500RMJ2U
-
Number of Battery & Surge Outlets6
-
Output Voltage100 V AC
-
Package ContentsSmart-UPS 1500 LCD RM 2U 100V Documentation CD Installation guide Rack mounting support rails Smart UPS signalling RS-232 cable
-
Plug/Connector TypeNEMA 5-15P
-
Product ColorBlack
-
Product LineSmart-UPS
-
Product NameSmart-UPS 1500 LCD RM 2U 100V
-
Product TypeLine-interactive UPS
-
Rack Height2U
-

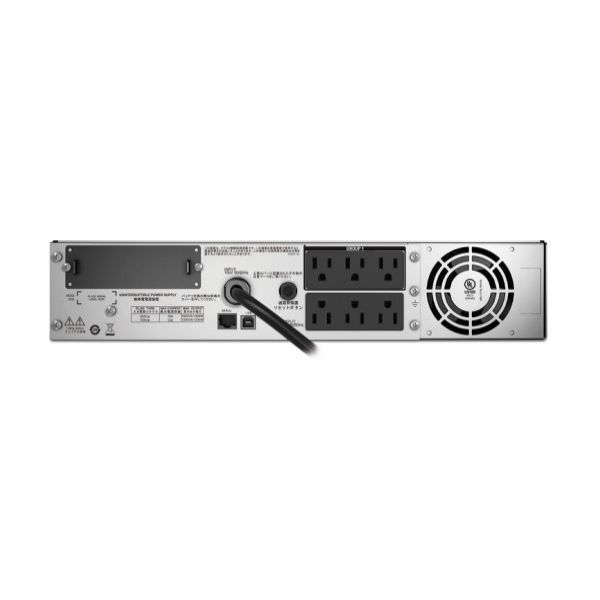

Receptacle Detail6 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Serial PortYes
-
Typical Battery Recharge Time4 Hour
-
USBYes
-
Waveform TypeSine Wave
-
Width17"
