Minuteman PRO-RT PRO1500RT2U 1500VA Tower/Rack/Wall Mountable UPS
Product Number: SYNX5295927
$432.91
Loading...
Loading...
Product Description
Minuteman PRO-RT PRO1500RT2U 1500VA Tower/Rack/Wall Mountable UPS
2U Tower/Rack/Wall Mountable - 4 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-15R
Description:
Perfect Protection For Rack-Mount Systems
The PRO-RT Series is a value-priced, yet feature-rich UPS incorporating line-interactive technology that preserves battery power by providing voltage regulation during brownouts or voltage sags. The PRO-RT Series can be used to support servers, telecom or VoIP systems, security systems, plus many other applications.
The PRO-RT UPSs include many useful features such as load-shedding with two load banks, independent battery bypass, plus auto-re-start when power is restored after an extended power outage.
Versatile Communications
Each PRO-RT model is compatible with Minuteman's free downloadable SentryHD power management and diagnostic software. When installed on a workstation or server, the user gains complete control over monitoring and managing the UPS using a convenient web browser-based interface. The SentryHD software communicates via a built-in USB port on the UPS. In addition, managing the UPS within a Network Management System (NMS) is easy with the installation of an optional SNMP card.

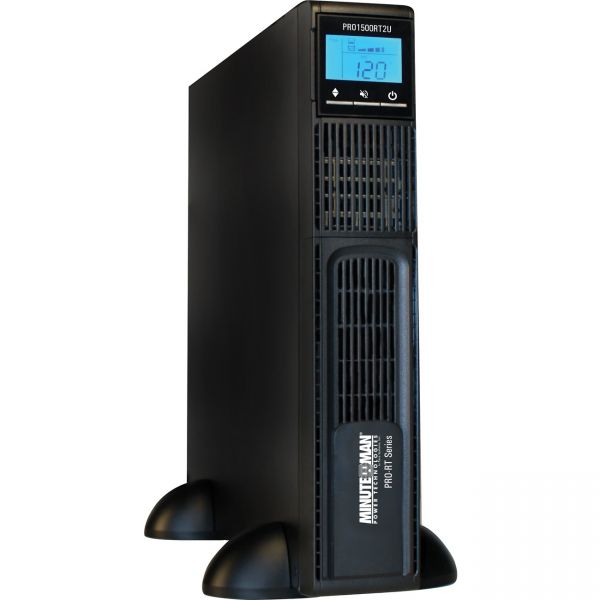

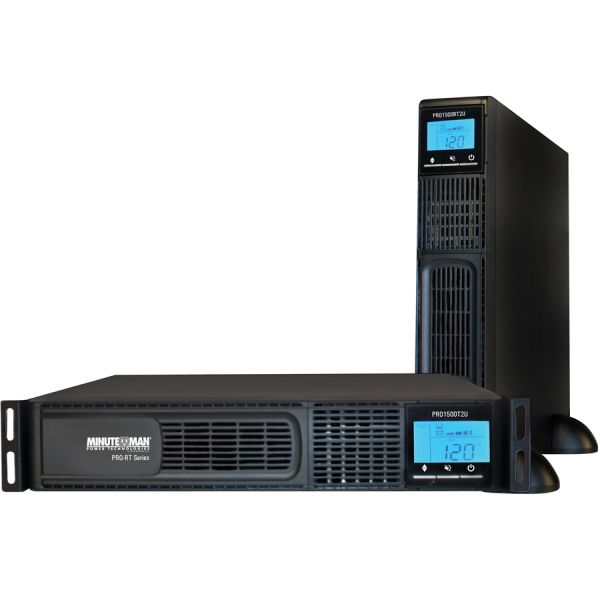

Designed for versatility, the PRO-RT models can be mounted in a standard rack using the attached rackmount ears. All units can also be installed as a tower using the included feet. An optional kit is available for mounting the unit to a wall.
High-end Features - Budget Friendly Price
The PRO-RT offers many features normally found on higher priced models, including an LCD status display which shows the following:
Input / Output voltage and frequency
Monitor the status of your utility power
UPS and battery mode / status
Eliminate guesswork with straightforward display of the unit's status
Load capacity
Load indicator shows how much electrical load is being placed on the unit
Estimated runtime based on connected load
Find out how much backup time remains during a blackout right on the unit
Ideally Suited to Protect:
Network Equipment
Servers
Workstations
VoIP Communications
IP and Analog Video Equipment
The PRO-RT Series is a value-priced, yet feature-rich UPS incorporating line-interactive technology that preserves battery power by providing voltage regulation during brownouts or voltage sags. The PRO-RT Series can be used to support servers, telecom or VoIP systems, security systems, plus many other applications.
The PRO-RT UPSs include many useful features such as load-shedding with two load banks, independent battery bypass, plus auto-re-start when power is restored after an extended power outage.
Versatile Communications
Each PRO-RT model is compatible with Minuteman's free downloadable SentryHD power management and diagnostic software. When installed on a workstation or server, the user gains complete control over monitoring and managing the UPS using a convenient web browser-based interface. The SentryHD software communicates via a built-in USB port on the UPS. In addition, managing the UPS within a Network Management System (NMS) is easy with the installation of an optional SNMP card.
Designed for versatility, the PRO-RT models can be mounted in a standard rack using the attached rackmount ears. All units can also be installed as a tower using the included feet. An optional kit is available for mounting the unit to a wall.
High-end Features - Budget Friendly Price
The PRO-RT offers many features normally found on higher priced models, including an LCD status display which shows the following:
Input / Output voltage and frequency
Monitor the status of your utility power
UPS and battery mode / status
Eliminate guesswork with straightforward display of the unit's status
Load capacity
Load indicator shows how much electrical load is being placed on the unit
Estimated runtime based on connected load
Find out how much backup time remains during a blackout right on the unit
Ideally Suited to Protect:
Network Equipment
Servers
Workstations
VoIP Communications
IP and Analog Video Equipment
- Line-interactive UPS allows convenient, long-time usage with increased efficiency
- Prevent critical data loss by staying powered during a blackout with up to 1050 W load capacity
- Keep your sensitive devices powered with a backup of up to 4 minute at full load
- 1500 VA load capacity - work without any interruption during power outages
- Lead Acid battery chemistry delivers energy to the fax machine through an easily controlled reaction
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
- Line-interactive UPS with fax machine application/usage to ensure maximum usability and reliable power supply
- 120 V AC input voltage for maximum feasibility and added productivity
- 120 V AC output voltage for better reliance and maximum usability
Product Specifications
-
Application/UsageData Storage Fax Machine Modem Network Security System Server Telephone System Video Equipment VoIP Phone System Workstation
-
Battery ChemistryLead Acid
-
Brand NameMinuteman
-
Certifications & StandardscTUVus
-
Country of OriginChina
-
Dataline ProtectionRJ-11/RJ-45
-
Depth20.1"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2
-
Environmentally FriendlyYes
-
Form FactorTower/Rack/Wall Mountable
-
Height3.4"
-
Hot SwappableYes
-
Input Frequency60 Hz
-
Input Voltage120 V AC
-
Input Voltage Range90 V AC - 150 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)1500 VA
-
Load Capacity (Watt)1050 W
-
Manufacturer Part NumberPRO1500RT2U
-
Maximum Operating Elevation9842.52 ft
-
Maximum Storage Elevation10000 ft
-
Network (RJ-45)Yes
-
Operating Humidity5% - 95%
-
Output Frequency60 Hz
-
Output Voltage120 V AC
-
Plug/Connector TypeNEMA 5-15P
-
Product ModelPRO1500RT2U
-
Product NamePRO-RT PRO1500RT2U 1500VA Tower/Rack/Wall Mountable UPS
-
Product SeriesPRO-RT
-
Product TypeLine-interactive UPS
-
Rack Height2U
-
Receptacle Detail8 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Storage Temperature32°F (0°C) - 104°F (40°C)
-
Surge Energy Rating960 J
-
Transfer Time10 ms
-
Waveform TypeSimulated Sine Wave
-
Width18.9"
