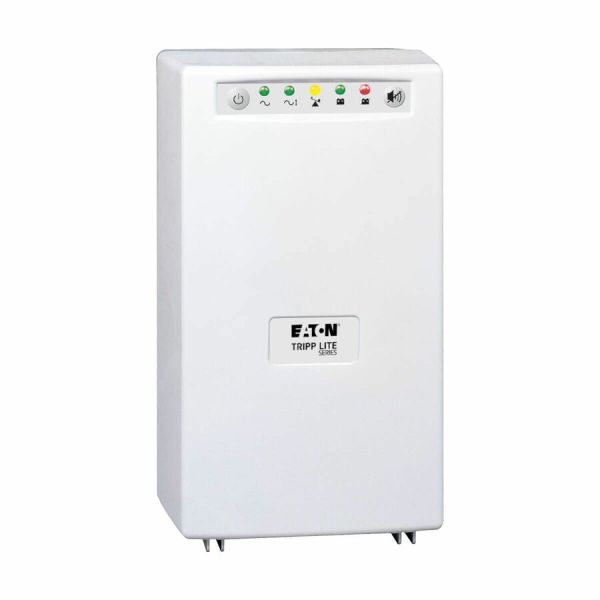

Eaton Tripp Lite Series SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, DB9

Product #: SYNX939749
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Eaton Tripp Lite Series SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, DB9
700VA/450W - 18 Minute Full Load - 4 x NEMA 5-15R
Tripp Lite's SMART700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load, or 18 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART700HG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6 ft. cord for flexibility in placement. All four outlets provide both backup protection and surge protection, rated to 480 joules. The SMART700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's free downloadable PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.
Application Usage
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART700HG in this type of application will void the battery warranty. For mobile applications, Tripp Lite recommends the SMART700HGL with lithium iron phosphate (LiFePo4) battery.
More from the Manufacturer
  • 700VA line interactive tower UPS
  • Maintains 120V nominal output over an input range of 82 to 142V
  • Professional features include serial port, hospital grade plug & outlets, built-in isolation transformer and UL60601-1 listing
  • Input: NEMA 5-15P (120V 15A) / Output: 4 NEMA 5-15R (120V)
  • Leakage current less than 100 microamps
  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 18 minute at full load
  • Prevent critical data loss by staying powered during a blackout with up to 450 W load capacity
  • 700 VA load capacity provides sufficient backup during power failures
  • 4 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
  • Lead Acid battery chemistry for your convenience and better usability
  • NEMA 5-15P plug/connector type for convenient usage with added dependability
  • NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
  • 120 V AC input voltage for maximum feasibility and added productivity
  • 120 V AC output voltage for better reliance and maximum usability
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Ideal UPS protection for applications in medical patient-care areas where UL2601-1 listed medical electrical equipment is required Maintains less than 300 microamps leakage current for UPS and all connected equipment Built-in isolation transformer with faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes Line-interactive voltage regulation corrects brownouts and overvoltages from 81 to 143 volts back to usable 120V output levels, without using battery power Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections Full line isolation offers a higher degree of safety and prevents operational problems in sensitive electronic equipment Resistant to electrostatic discharge Supports loads up to 700VA / 450 watts 42 minutes half load runtime (with 350VA load), 18 minutes full load runtime (with 700VA load) 4 protected hospital-grade outlets; 6-ft. cord RS-232 and USB monitoring ports for remote monitoring and unattended shutdown SNMP compatible with separate purchase SNMPWEBSOLO ethernet adapter accessory PowerAlert unattended shutdown software available via free download from www.tripplite.com (cabling included) Complete surge protection, line isolation and EMI/RFI noise filtering 2 year product warranty Battery replacement door Grounding lug 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace
  • Alarm
    Low Battery On Battery Overload
  • Battery Chemistry
    Lead Acid
  • Battery Life
    6 Year
  • Brand Name
    Tripp Lite series
  • Certifications & Standards
    UL1778 (USA, Series AGSM700PSR3HG), UL2601-1 (Medical), cUL (Canada), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications
  • Cord Length
    6 ft
  • Country of Origin
    China
  • Depth
    9"
  • Form Factor
    Tower
  • Height
    12.5"
  • Hot Swappable
    Yes
  • Input Voltage
    120 V AC
  • Limited Warranty
    2 Year
  • Load Capacity (VA)
    700 VA
  • Load Capacity (Watt)
    450 W
  • Manufacturer Part Number
    SMART700HG
  • Maximum Operating Temperature
    104°F (40°C)
  • Network Management
    SNMP Manageable
  • Output Voltage
    120 V AC
  • Package Contents
    SmartPro 700HG UPS SMART 700HG Medical Grade UPS System One USB and One DB9 monitoring cable Warranty information Instruction manual
  • Plug/Connector Type
    NEMA 5-15P
  • Product Line
    SmartPro
  • Product Name
    SmartPro 700HG UPS
  • Product Type
    Line-interactive UPS
  • Receptacle Detail
    4 x NEMA 5-15R
  • Receptacle Type
    NEMA 5-15R
  • Status Indicators
    5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning
  • Transfer Time
    4 ms
  • Typical Battery Recharge Time
    4 Hour
  • USB
    Yes
  • Width
    7"
