Eaton Tripp Lite Series SmartOnline 1500VA 1350W 120V Double-Conversion UPS - 6 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, Tower
Product Number: SYNX3534324
$1,268.19
Loading...
Loading...
Product Description
Eaton Tripp Lite Series SmartOnline 1500VA 1350W 120V Double-Conversion UPS - 6 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, Tower
Tower - 3 Hour Recharge - 4.50 Minute Stand-by - 100 V AC, 110 V AC, 120 V AC, 127 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Serial Port - USB - 6 x NEMA 5-15R
Description:
Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data LossThis on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation isolates sensitive equipment from power problems on the AC line. The SmartOnline SU1500XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power OutagesThe field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48V, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

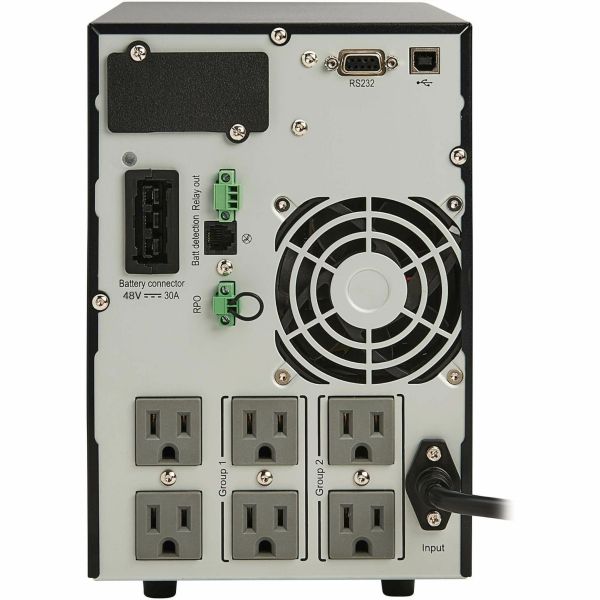

NEMA 5-15R Outlets Protect Your Connected ComponentsSix NEMA 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform BetterThis UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Clear LCD Interface Keeps You Informed at a GlanceThe menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power.
More from the Manufacturer
Reliable, Expandable Battery Backup Keeps You Operational Through Power OutagesThe field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48V, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA 5-15R Outlets Protect Your Connected ComponentsSix NEMA 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform BetterThis UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Clear LCD Interface Keeps You Informed at a GlanceThe menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power.
More from the Manufacturer
- Updated design for 2023
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Optional WEBCARDLXE network card enables full remote access and control
- Menu-driven LCD keeps you up to date with status info and other vital analytics
- Double Conversion Online UPS provides optimal and uninterrupted power supply for maximum usability
- Keep your sensitive devices powered with a backup of up to 5.80 minute at full load
- 1350 W load capacity - backup power for your valuable electronics
- 1500 VA load capacity - work without any interruption during power outages
- Overload protection feature usually operates on an inverse time curve where the stable time becomes less as the current increases
- 3 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Replaceable battery for optimal performance with maximum charged dependability
- Lead Acid battery chemistry delivers energy to the network device through an easily controlled reaction
- NEMA 5-15P plug/connector type for convenient usage with added dependability
- NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
Product Specifications
-
AlarmRemote Shutdown UPS StartUp Power Failure Overload UPS Fault Low Battery
-
Application/UsageNetwork Device IT Equipment
-
Backup/Run Time (Full Load)5.80 Minute
-
Backup/Run Time (Half Load)16.50 Minute
-
Battery CharacteristicsValve-regulated
-
Battery ChemistryLead Acid
-
Brand NameTripp Lite series
-
Bypass SwitchAutomatic
-
Certifications & StandardsUL1778 CSA NOM FCC Part 15 Category A (EMI)
-
Country of OriginChina
-
Depth17.1"
-
DisplayLCD
-
Emergency Power OFFYes
-
Energy StarYes
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorTower
-
Height9.9"
-
Hot SwappableYes
-
Input Voltage120 V AC
-
Limited Warranty2 Year
-
Load Capacity (VA)1500 VA
-
Load Capacity (Watt)1350 W
-
Manufacturer Part NumberSU1500XLCD
-
Maximum Operating Temperature104°F (40°C)
-
Minimum Operating Temperature32°F (0°C)
-
Network ManagementSNMP
-
Output Frequency60 Hz
-
Output Voltage110 V AC 120 V AC 100 V AC
-
Overload ProtectionYes
-
Package ContentsUSB Cable SmartOnline SU1500XLCD 1500VA Tower UPS DB9 Cable Quick Start Guide
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA 5-15P
-
Product LineSmartOnline
-
Product ModelSU1500XLCD
-
Product NameSmartOnline SU1500XLCD 1500VA Tower UPS
-
Product TypeDouble Conversion Online UPS
-
Rack Height2U
-
Receptacle Detail6 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Serial PortYes
-
Software IncludedPowerAlert Software
-
Surge Energy Rating190 J
-
Transfer Time0 ns
-
Typical Battery Recharge Time3 Hour
-
USBYes
-
Waveform TypePure Sine Wave
-
Width6.3"
