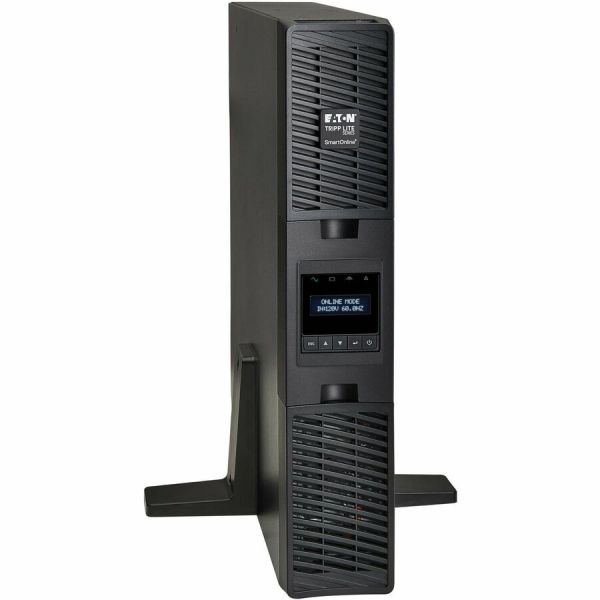

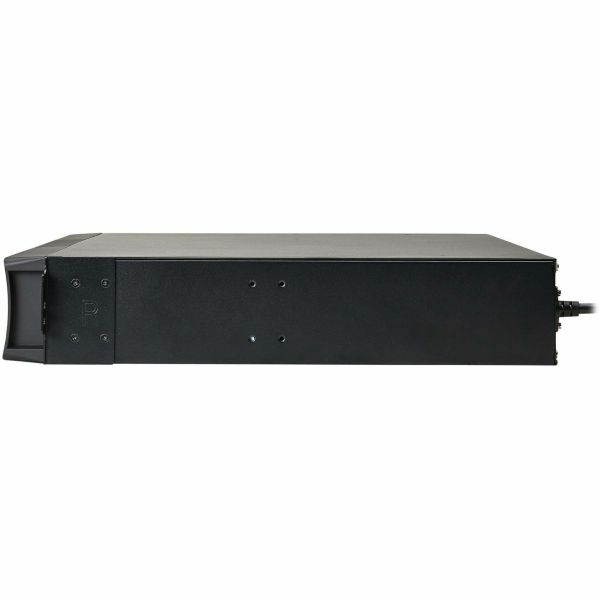

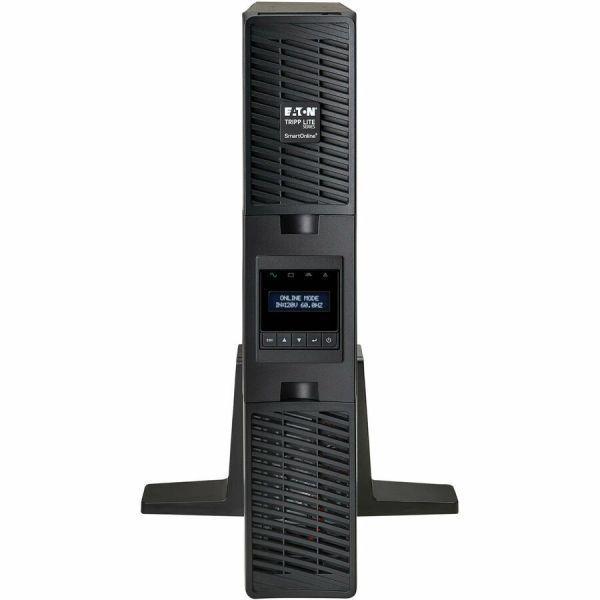

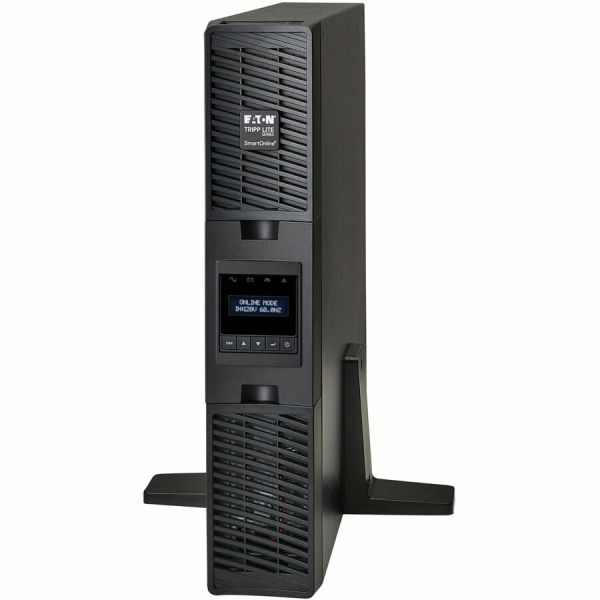

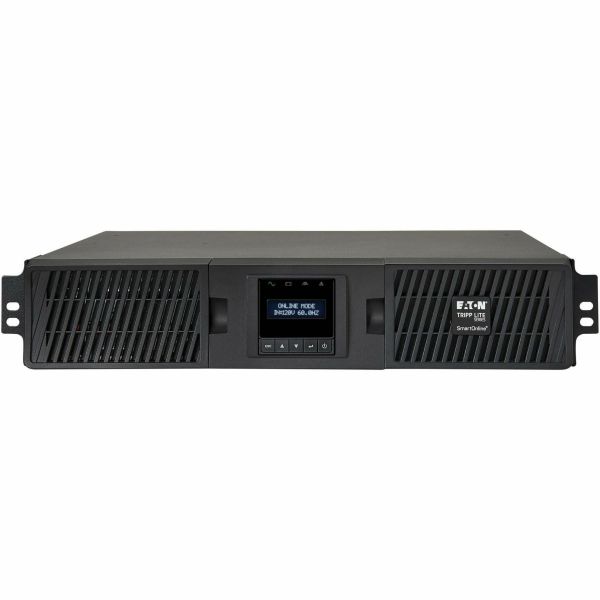

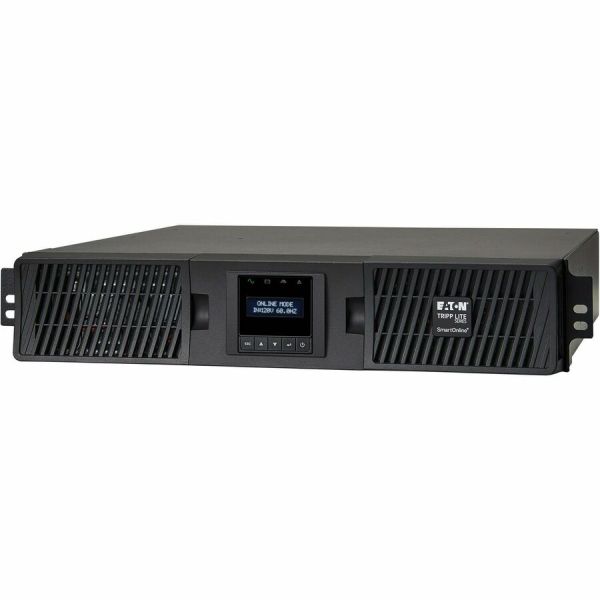

Eaton Tripp Lite Series SmartOnline 1500VA 1350W 120V Double-Conversion UPS - 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower
Product Number: SYNX4508026
$1,835.89
Loading...
Loading...
Product Description
Eaton Tripp Lite Series SmartOnline 1500VA 1350W 120V Double-Conversion UPS - 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower
2U Tower/Rack/Wall Mountable - 4.20 Minute Stand-by - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC Output - 6 x NEMA 5-15R
Description:
Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline SU1500RTXLCDN provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48RT, sold separately).
Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA Outlets Protect Your Connected Components
Eight 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown
More from the Manufacturer
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline SU1500RTXLCDN provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48RT, sold separately).
Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA Outlets Protect Your Connected Components
Eight 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown
More from the Manufacturer
- Updated design for 2023 Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Zero transfer time between online and battery modes for uninterrupted operation
- Included WEBCARDLXE network card enables full remote access and control 24/7
- Menu-driven LCD keeps you up to date with status info and other vital analytics
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Keep your sensitive devices powered with a backup of up to 5.80 minute at full load
- Prevent critical data loss by staying powered during a blackout with up to 1350 W load capacity
- 1500 VA load capacity - work without any interruption during power outages
- Overload protection feature protects a motor by sensing the current going to the motor to prevent malfunction
- 3 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- Replaceable battery for optimal performance with maximum charged dependability
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
Product Specifications
-
AlarmRemote Shutdown UPS StartUp Power Failure Overload UPS Fault Low Battery
-
Application/UsageNetwork Device IT Equipment
-
Backup/Run Time (Full Load)5.80 Minute
-
Backup/Run Time (Half Load)16.50 Minute
-
Battery CharacteristicsValve-regulated
-
Battery ChemistryLead Acid
-
Brand NameTripp Lite series
-
Country of OriginChina
-
Depth17.7"
-
DisplayLCD
-
Energy StarYes
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorRack/Tower
-
Height3.4"
-
Hot SwappableYes
-
Input Voltage120 V AC
-
Limited Warranty2 Year
-
Load Capacity (VA)1500 VA
-
Load Capacity (Watt)1350 W
-
Manufacturer Part NumberSU1500RTXLCDN
-
Maximum Operating Temperature104°F (40°C)
-
Minimum Operating Temperature32°F (0°C)
-
Network ManagementNetwork Card
-
Output Frequency60 Hz
-
Output Voltage100 V AC 110 V AC 115 V AC 120 V AC 127 V AC
-
Overload ProtectionYes
-
Package ContentsUSB Cable DB9 Cable SmartOnline SU1500RTXLCDN 1500VA Rack/Tower UPS WEBCARDLXE Network Management Card Rack-mounting Hardware Tower support Stands Safety Instructions Quick Start Guide
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA 5-15P
-
Product LineSmartOnline
-
Product ModelSU1500RTXLCDN
-
Product NameSmartOnline SU1500RTXLCDN 1500VA Rack/Tower UPS
-
Product TypeDouble Conversion Online UPS
-
Rack Height2U
-
Receptacle TypeNEMA 5-15R
-
Serial PortYes
-
Surge Energy Rating190 J
-
USBYes
-
Waveform TypePure Sine Wave
-
Width17.3"
