Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop
Product Number: ETLZ1079164939
$127.47
Loading...
Loading...
Product Description
Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop
Desktop/Surface/Wall Mountable UPS - 8 Hour Recharge - 1.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - 4 x NEMA 5-15R - 4 x Battery/Surge Outlet Backup Battery
Description:

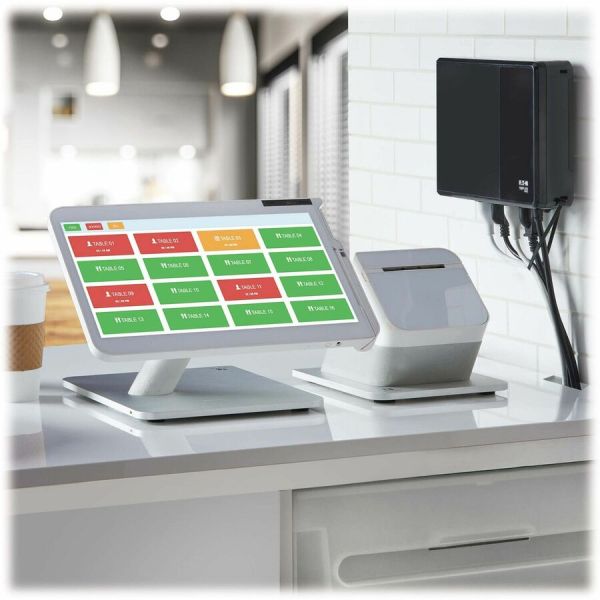

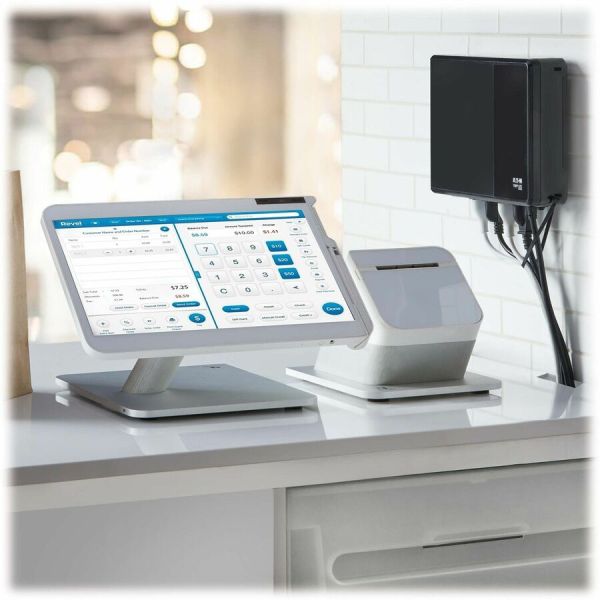

600VA/300W/120V Battery Backup for PCs and Retail Point-of-Sale Applications

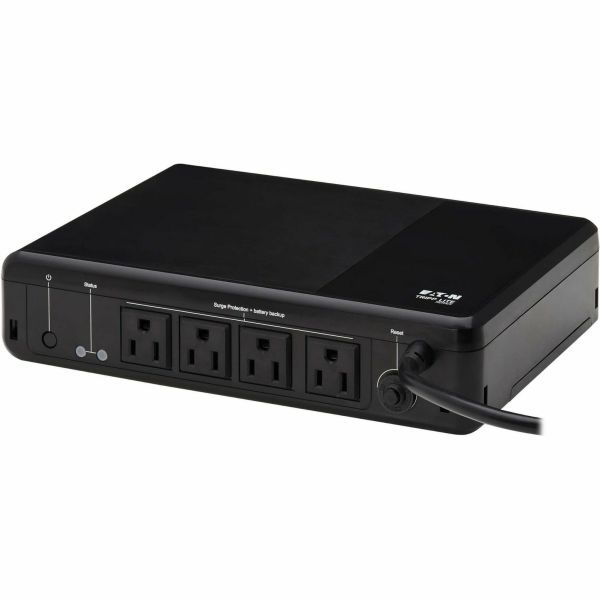

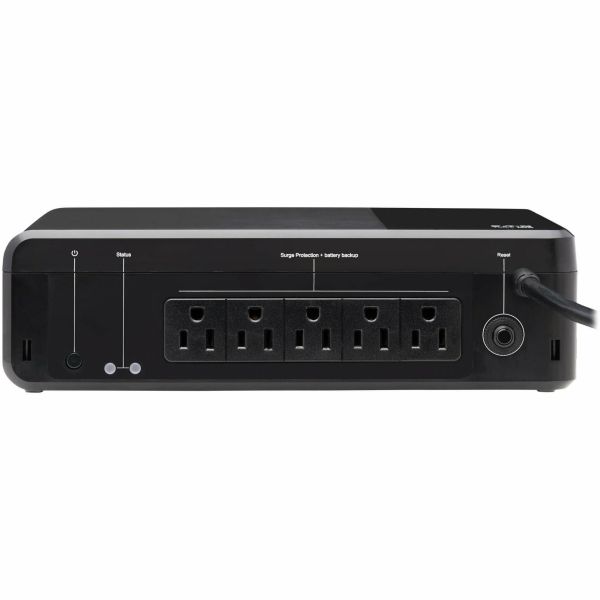

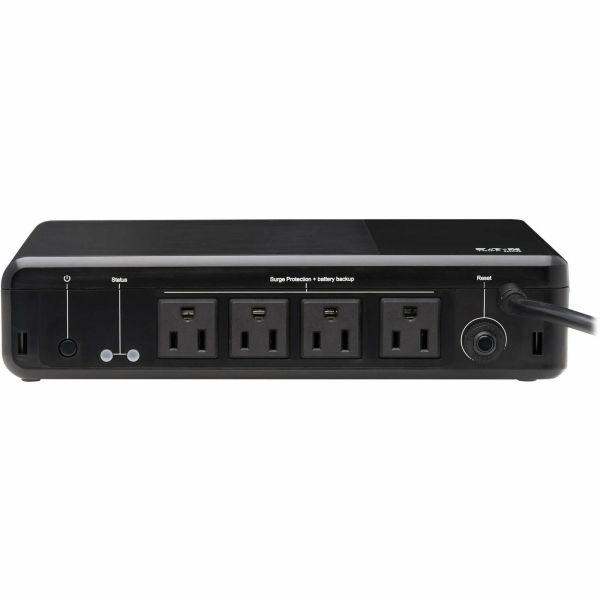

The BC600R standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It's easy to set up in minutes. Just plug the BC600R into a properly grounded wall outlet, press the power button and connect equipment to the UPS outlets. For easy access, the input power cable, outlets, power button and status LEDs are all on the same side.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts and brownouts, the BC600R switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable VRLA battery fully charged, so backup power is always available. The BC600R restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit.
Easy Preventative Maintenance and Initial Troubleshooting
The BC600R's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.
Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better
Rated for 190 joules of surge suppression, the BC600R and its four NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The BC600R also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can destroy data and contribute to lengthy downtime.
More from the Manufacturer
The BC600R standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It's easy to set up in minutes. Just plug the BC600R into a properly grounded wall outlet, press the power button and connect equipment to the UPS outlets. For easy access, the input power cable, outlets, power button and status LEDs are all on the same side.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts and brownouts, the BC600R switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable VRLA battery fully charged, so backup power is always available. The BC600R restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit.
Easy Preventative Maintenance and Initial Troubleshooting
The BC600R's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.
Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better
Rated for 190 joules of surge suppression, the BC600R and its four NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The BC600R also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can destroy data and contribute to lengthy downtime.
More from the Manufacturer
- Low-maintenance standby UPS provides battery backup and surge protection for retail point-of-sale, home networks and wireless access points
- Low-maintenance UPS sets up in minutes to start backing up your equipment
- Keeps power running during brief outages to allow time for safe system shutdown
- Protects up to 3 devices against outages, brownouts, overvoltages, surges and line noise
- Automatically restarts when power is restored, saving you a costly site visit
- Recommended for locations where temperatures range within 32° and 122° F
- 3-year limited warranty
- Compact in size and offers highly efficient solution
- 300 W load capacity - backup power for your valuable electronics
- Up to 1.50 minute runtime on full load to preserve critical data from power shortage interruptions
- 600 VA load capacity provides sufficient backup during power failures
- 8 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
- Single Phase phase for better reliability and ensure maximum productivity
- Standby UPS with pos application/usage to ensure maximum usability and reliable power supply
- Prevent critical data loss by staying powered during a blackout with up to 300 W load capacity
- Keep your sensitive devices powered with a backup of up to 1.50 minute at full load
- 600 VA load capacity - work without any interruption during power outages
- 8 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- NEMA 5-15P plug/connector type for a secure, feasible operation
- NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
- Single Phase phase for better usability and increased efficiency
- Standby UPS with pos application/usage to ensure maximum dependability and optimal performance
Product Specifications
-
Application/UsagePOS Network Retail Kiosk Industrial Food Service Home Network Wireless Access Point Desktop Computer Peripheral Home/Office Hospital
-
Backup/Run Time (Full Load)1.50 Minute
-
Backup/Run Time (Half Load)5 Minute
-
Battery CharacteristicsValve-regulated
-
Battery ChemistryLead Acid
-
Brand NameTripp Lite by Eaton
-
Certifications & StandardsCAN/CSA-C22.2 No. 107.3 NOM ICES UL 1778
-
Circuit BreakerYes
-
Cord Length5 ft
-
Depth7.1"
-
Energy StarYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
FeaturesAudible Alarm Cold Start Function Green Energy Saving
-

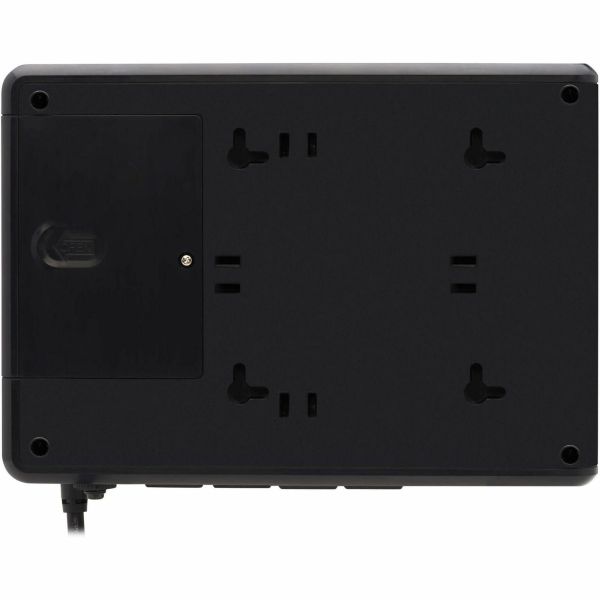

Form FactorDesktop/Surface/Wall Mountable
-
Height2.3"
-
Input Current5 A
-
Input Frequency60 Hz
-
Input Voltage120 V AC
-
Limited Warranty2 Year
-
Load Capacity (VA)600 VA
-
Load Capacity (Watt)300 W
-
Manufacturer Part NumberBC600R
-
Maximum Operating Temperature122°F (50°C)
-
Minimum Operating Temperature32°F (0°C)
-
Output Frequency60 Hz
-
Output Voltage120 V AC
-

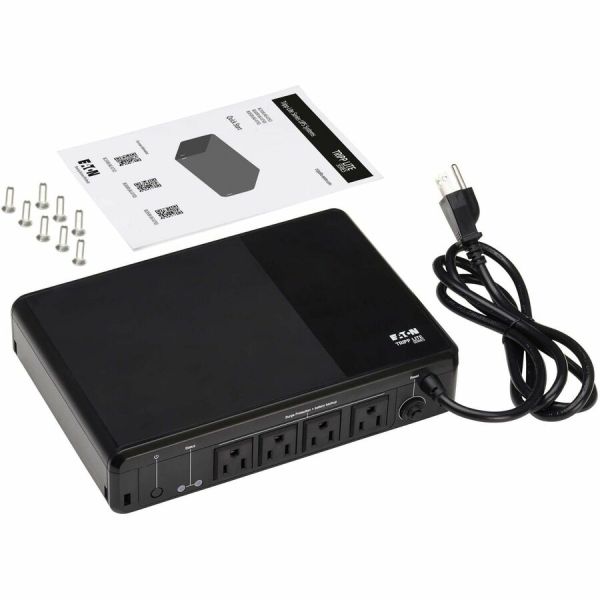

Package ContentsBC600R 600VA Desktop/Surface/Wall Mountable UPS 4 x M4 x 12 mm Screws 4 x M4 x 20 mm Screws Quick Start Guide
-
PhaseSingle Phase
-

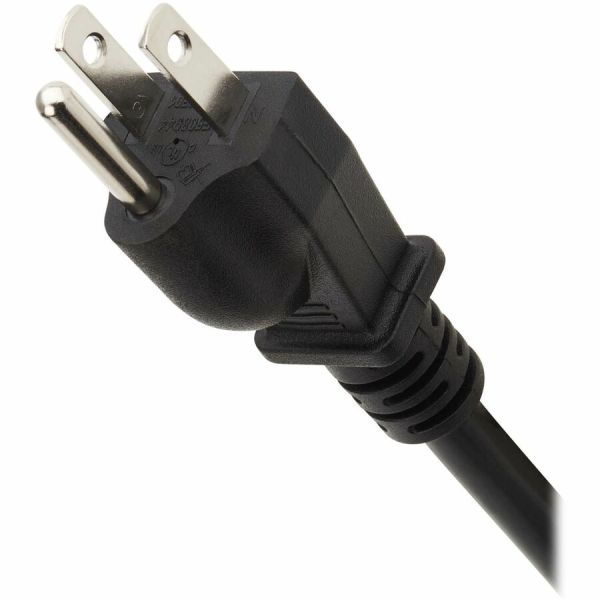

Plug/Connector TypeNEMA 5-15P
-
Product ModelBC600R
-
Product NameBC600R 600VA Desktop/Surface/Wall Mountable UPS
-
Product TypeStandby UPS
-
Receptacle TypeNEMA 5-15R
-
Sound Emission40 dB
-
Status IndicatorsLED Indicators: Low Battery or Fault Condition Power and Line/battery Mode Status
-
Surge Energy Rating190 J
-
Waveform TypePulse-width Modulated Sine Wave
-
Width10"
