Eaton 5P 1440VA 1100W 120V Line-Interactive UPS, 5-15P, 8x 5-15R Outlets, True Sine Wave, Cybersecure Network Card Option, Tower - Battery Backup
Product Number: SYNX3536236
$606.89
Loading...
Loading...
Product Description
Eaton 5P 1440VA 1100W 120V Line-Interactive UPS, 5-15P, 8x 5-15R Outlets, True Sine Wave, Cybersecure Network Card Option, Tower - Battery Backup
Tower - 4 Minute Stand-by - 110 V AC Input - 132 V AC Output - 8 x NEMA 5-15R
Description:

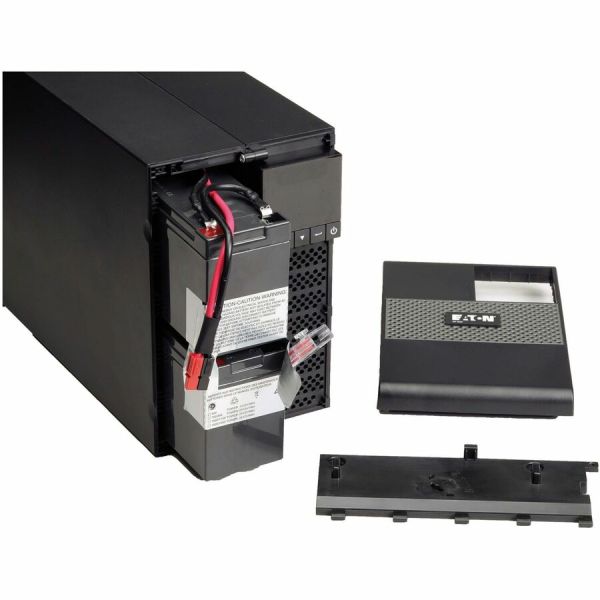

1.44kVA/1.1kW/120V Battery Backup for Network Closets and Small Data Centers This 5P line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1500 protects connected devices by providing 20 percent more wattage compared to traditional UPS systems. Reliable Battery Backup Keeps You Operational Through Power Outages Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. Optional Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA 5-15R Outlets Protect Your Connected Components Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. LCD Interface Keeps You Informed at a Glance The five-button graphical LCD provides useful information about the UPS itself, load status, events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). By adding the optional RELAY-MS interface card (sold separately), a dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment. Space-Saving Tower Design The 5P1500's compact tower design conserves valuable space in a crowded network closet. The six-foot power cord with NEMA 5-15P plug connects to a compatible AC outlet.
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Provides 20% more wattage compared to traditional UPS systems to protect devices
- Exclusive ABM technology with 3-stage charging increases internal battery life by 50%

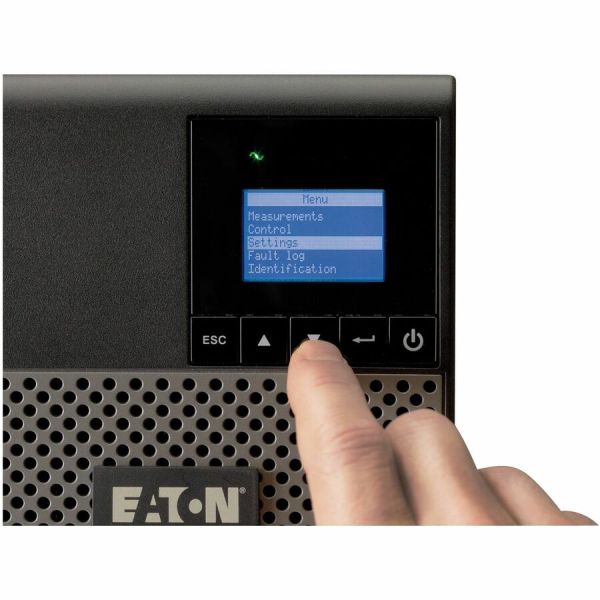

- 5-button graphical LCD offers critical UPS data and load status at a glance
- Optional NETWORK-M2 Gigabit network card enables full remote access and control
- Works adequately in situations where the supply is prone to sags and surges
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 1100 W load capacity
- 1440 VA load capacity - work without any interruption during power outages
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
- 110 V AC input voltage for maximum feasibility and added productivity
- 132 V AC output voltage for optimal performance with maximum feasibility
- Tower form factor requires minimal configuration and can be easily customized and upgraded to ensure maximum efficiency
Product Specifications
-
Battery ChemistryLead Acid
-
Brand NameEaton
-
Certifications & StandardsUL 1778 UL497A cULus CE IEC 62040-2 C1-C2 EN 55024 CISPR22 Class B FCC part 15 Class B
-
Country of OriginPhilippines
-
Depth17.5"
-
Emergency Power OFFYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorTower
-
Height9.1"
-
Hot SwappableYes
-
Input Voltage110 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)1440 VA
-
Load Capacity (Watt)1100 W
-
Manufacturer Part Number5P1500
-
Network (RJ-45)Yes
-
Output Voltage120 V AC 125 V AC 132 V AC
-
Package Contents5P Tower UPS User Manual CD Intelligent Power Software Suite CD Quick Start Guide USB Cable RS-232 Serial Cable
-
Plug/Connector TypeNEMA 5-15P
-
Product Model5P
-
Product Name5P Tower UPS
-
Product TypeLine-interactive UPS
-

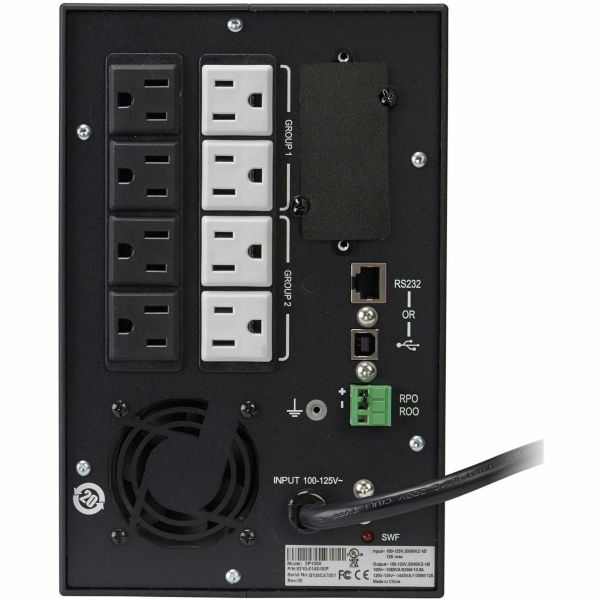

Receptacle Detail8 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Software IncludedIntelligent Power Software Suite
-
USBYes
-
Width5.9"
