CyberPower OL3000RTXL2UN Smart App Online UPS Systems
Product Number: SYNX5468544
$2,408.33
Loading...
Loading...
Product Description

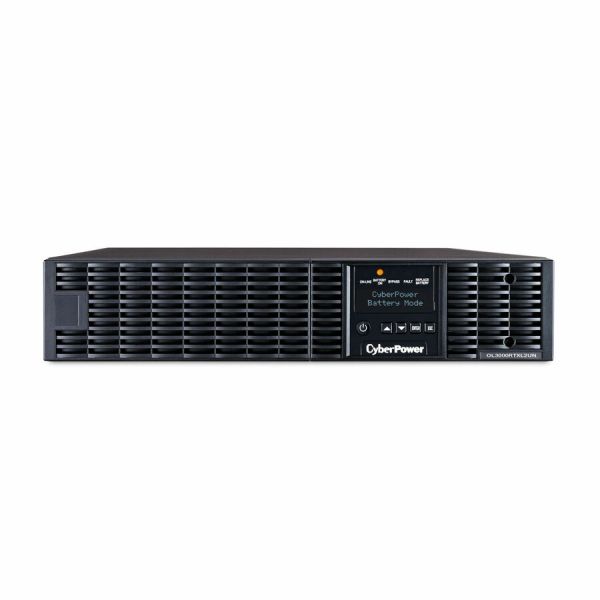

CyberPower OL3000RTXL2UN Smart App Online UPS Systems
3000VA/2700W, 100 - 125 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty
Description:
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode.
The OL3000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
More from the Manufacturer
The CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode.
The OL3000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
More from the Manufacturer
- Capacity: 3000 VA / 2700 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord: NEMA L5-30P, 10 ft. cord
- Outlet types: 6 × NEMA 5-20R, 1 L5-30R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel Business Edition
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Up to 3.50 minute runtime on full load to preserve critical data from power shortage interruptions
Product Specifications
-
Additional InformationReplacement Battery Cartridge Quantity: 1 Smart Battery Management (SBM) Mode: Yes Circuit Breaker: 30A Cold Start: Yes Input Power Factor: 0.99 Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load Crest Factor: 3:1 ECO Mode Voltage Regulation: ±10%, ±15% (Configurable) Harmonic Distortion: < 3% at Linear Load Nominal Output Voltage: 100 - 125 VAC On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable) Output Power Factor: 0.9 Overload Protection: Line Mode: 105% ~ 125% Load - 1 min Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection VA by Input Type: 3,000 (3.0 kVA) at 120, 125 V input Watts by Input Type: 2,700 (2.7 kW) at 120, 125 V input Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo) Audible Alarms: Battery Mode Dry Contacts: Yes Expansion Slot: Yes - RMCARD205 pre-installed HID Compliant USB Port: Yes LCD: Multifunction LCD Management Cable: USB Cable Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included) Rotatable LCD Control Panel Option: Yes Upgradeable firmware: Yes Material of Construction: Metal Mounting Hardware: Yes Audible noise at 1m from surface of unit: 38 dBA to 55 dBA (0 to 100% load) ECO Mode Thermal Dissipation: 364 BTU/hr Operating Relative Humidity: 0 - 90 % (non-condensing) Operating Temperature: 32 - 104 °F (0 - 40 °C) Storage Relative Humidity: 0 - 95% (non-condensing)
-
AlarmBattery Mode
-
Application/UsageMission Critical Equipment Network Closet Network Device PBX System Server Storage Device
-
Battery Capacity9000 mAh
-
Battery ChemistryLead Acid
-
Battery Size12V
-
Brand NameCyberPower
-
Certifications & StandardsUL 1778
-
Country of OriginTaiwan
-
Dataline ProtectionRJ-11 RJ-45
-
Depth23.6"
-
Directly Connected Equipment Guarantee$400000 Lifetime
-
EMI/RFI Noise FilterYes
-
EPO PortYes
-
Energy SavingECO Mode Efficiency >95%
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorRack/Tower
-
Height3.5"
-
Input Frequency70 Hz
-
Input Voltage120 V AC
-
Input Voltage Range100 V AC - 125 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)3000 VA
-
Manufacturer Part NumberOL3000RTXL2UN
-
Maximum Operating Elevation10000 ft
-
Maximum Operating Temperature104°F (40°C)
-
Maximum Storage Elevation50000 ft
-
Modem (RJ-11)Yes
-
Network (RJ-45)Yes
-
Number of Batteries6
-
Number of Battery & Surge Outlets7
-
Output Frequency60 Hz
-
Output Voltage100 V AC 110 V AC 115 V AC 120 V AC 125 V AC
-
Overload ProtectionYes
-
Package ContentsSmart App Online OL3000RMXL2U 3000VA Rack/Tower UPS User Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line USB Communication Cable Serial Interface Cable (RS-232) 8 x M5X7L Black Flat Head Screws 12 x M5X12L Black Pan Head Screws 6 x M5X6l Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads Software Download Card
-
Plug/Connector TypeNEMA L5-30P
-
Product ColorBlack
-
Product ModelOL3000RTXL2UN
-
Product NameSmart App Online OL3000RMXL2U 3000VA Rack/Tower UPS
-
Product SeriesSmart App Online UPS
-
Product TypeDouble Conversion Online UPS
-
Protection TypeSurge
-
Rack Height2U
-
Receptacle Detail1 x NEMA L5-30R 6 x NEMA 5-20R
-
Receptacle TypeNEMA 5-20R NEMA L5-30R
-
Replaceable BatteryYes
-
Serial PortYes
-
Software IncludedPowerPanel Business
-
Sound Emission (A-Weighted)55 dB(A)
-
Status IndicatorsLED Indicators: Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red)
-
Storage Relative Humidity0% - 95%
-
Storage Temperature-4°F (-20°C) - 113°F (45°C)
-
Surge Energy Rating1335 J
-
Thermal Dissipation260.54 W
-
Transfer Time0 ns
-
Typical Battery Recharge Time4 Hour
-
USBYes
-
USB (HID Compliant) PortYes
-
Waveform TypeSine Wave
-
Width17"
