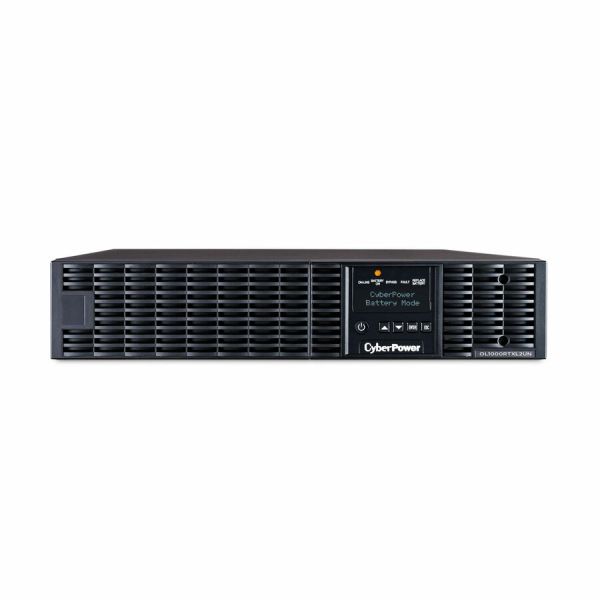

CyberPower OL1000RTXL2UN Smart App Online UPS Systems
Product Number: SYNX5468559
$1,131.64
Loading...
Loading...
CyberPower OL1000RTXL2UN Smart App Online UPS Systems
1000VA/900W, 100 - 125 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty
Description:
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode.
The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
More from the Manufacturer
The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode.
The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
More from the Manufacturer
- Capacity: 1000 VA / 900 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ± 2% (configurable)
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel Business Edition
- Gives you a high level of protection by isolating the equipment from raw utility power
- Keep your sensitive devices powered with a backup of up to 7.40 minute at full load
Read More
-
Additional InformationReplacement Battery Cartridge Quantity: 1 Cold Start: Yes Input Power Factor: 0.99 Crest Factor: 3:1 Dry Contacts: Yes Rotatable LCD Control Panel Option: Yes Upgradeable firmware: Yes Smart Battery Management (SBM) Mode: Yes Circuit Breaker: 15A Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load ECO Mode Voltage Regulation: ±10%, ±15% (Configurable) Harmonic Distortion: < 3% at Linear Load On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable) Output Power Factor: 0.9 Overload Protection: Line Mode: 105% ~ 125% Load - 1 min Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo) Expansion Slot: Yes - RMCARD205 pre-installed LCD: Multifunction LCD Management Cable: USB Cable Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included) Serial Port: 1 Serial Material of Construction: Metal Mounting Hardware: Yes ECO Mode Thermal Dissipation: 108 BTU/hr Operating Relative Humidity: 0 - 90 % (non-condensing) Operating Temperature: 32 - 104 °F (0 - 40 °C)
-
AlarmBattery Mode Low Battery Overload UPS Fault
-
Application/UsageNetwork Closet Network Device PBX System Server Storage Device VoIP Phone System Mission Critical Equipment
-
Battery Capacity9000 mAh
-
Battery ChemistryLead Acid
-
Battery Size12V
-
Brand NameCyberPower
-
Certifications & StandardsUL 1778
-
Country of OriginTaiwan
-
Dataline ProtectionRJ-11 RJ-45
-
Depth16.9"
-
Directly Connected Equipment Guarantee$400000 Lifetime
-
EMI/RFI Noise FilterYes
-
EPO PortYes
-
Energy SavingECO Mode Efficiency >94%
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorRack/Tower
-
Height3.5"
-
Input Frequency70 Hz
-
Input Voltage120 V AC
-
Input Voltage Range100 V AC - 125 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)1000 VA
-
Manufacturer Part NumberOL1000RTXL2UN
-
Maximum Operating Elevation10000 ft
-
Maximum Operating Temperature104°F (40°C)
-
Maximum Storage Elevation50000 ft
-
Network (RJ-45)Yes
-
Network ManagementSNMP Manageable
-
Number of Batteries3
-
Output Frequency60 Hz
-
Output Voltage125 V AC 100 V AC 110 V AC 115 V AC 120 V AC
-
Overload ProtectionYes
-
Package ContentsSmart App Online OL1000RTXL2UN 1000VA Rack/Tower UPSUser Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line Usb Communication Cable Serial Interface Cable (RS-232) 8 x M5x7l Black Flat Head Screws 12 x M5x12l Black Pan Head Screws 6 x M5x6l Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads And A Software Download Card
-
Plug/Connector TypeNEMA 5-15P
-
Product ColorBlack
-
Product ModelOL1000RTXL2UN
-
Product NameSmart App Online OL1000RTXL2UN 1000VA Rack/Tower UPS
-
Product SeriesSmart App Online UPS
-
Product TypeDouble Conversion Online UPS
-
Rack Height2U
-
Receptacle Detail8 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Replaceable BatteryYes
-
Serial PortYes
-
Software IncludedPowerPanel Business
-
Sound Emission (A-Weighted)55 dB(A)
-
Status IndicatorsLED Indicators: Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red)
-
Storage Relative Humidity0% - 95%
-
Storage Temperature-4°F (-20°C) - 113°F (45°C)
-
Surge Energy Rating1780 J
-
Thermal Dissipation80.30 W
-
Transfer Time0 ns
-
Typical Battery Recharge Time4 Hour
-
USB (HID Compliant) PortYes
-
Waveform TypeSine Wave
-
Width17"
