Pinch to zoom
CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems
Product Number: ETLZ1073858007
$334.95
Loading...
Loading...
Product Description
CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems
2U Rack-mountable - AVR - 8 Hour Recharge - 3.10 Minute Stand-by - 120 V AC Input - Serial Port - 8 x NEMA 5-15R - 8 x Battery/Surge Outlet
Description:
The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

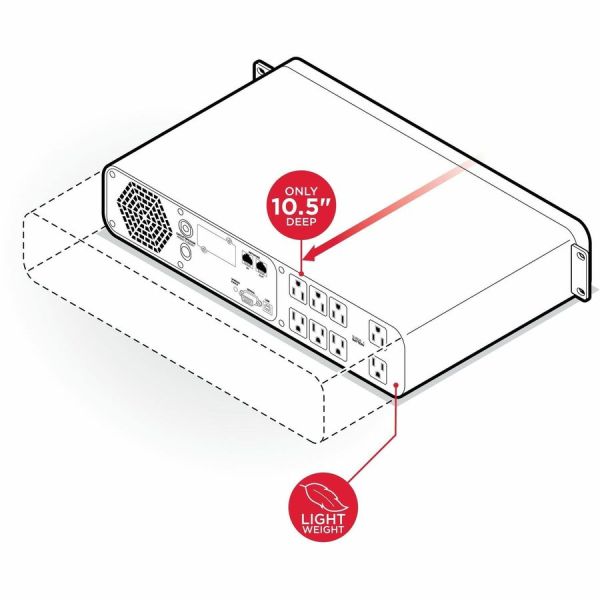

The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.
The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee
The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.
The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee

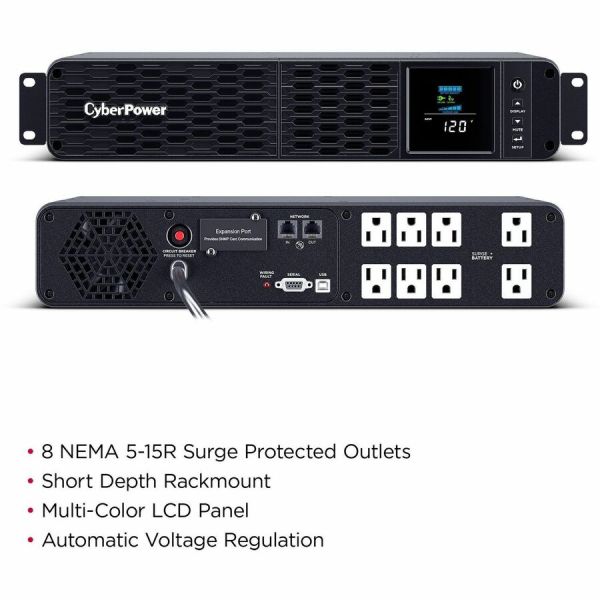

- Capacity: 1500VA / 1000W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120Vac ± 5%
- Runtime (half/full): 10.2 minutes / 3.1 minutes
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlets: 8 surge + battery backup
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, SNMP
- Data line protection: Network
- Line-interactive UPS is a productive and reliable power supply solution
- Up to 3.10 minute runtime on full load to preserve critical data from power shortage interruptions
- 1000 W load capacity - backup power for your valuable electronics
- 1500 VA load capacity provides sufficient backup during power failures
- Overload protection feature usually operates on an inverse time curve where the stable time becomes less as the current increases
- 2 batteries for optimal performance with maximum usability
- 9000 mAh battery capacity for convenient and prolonged usage to ensure maximum productivity
- 8 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Replaceable battery for optimal performance with maximum charged dependability
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
Product Specifications
-
AVRYes
-
AlarmBattery Mode Fault Low Battery Overload
-
Application/UsageAudio System Network Device POS Security System Storage Device Surveillance System
-
Battery Capacity9000 mAh
-
Battery ChemistryLead Acid
-
Brand NameCyberPower
-
Country of OriginChina
-
DC System Voltage12 V DC
-
Dataline ProtectionCoax
-

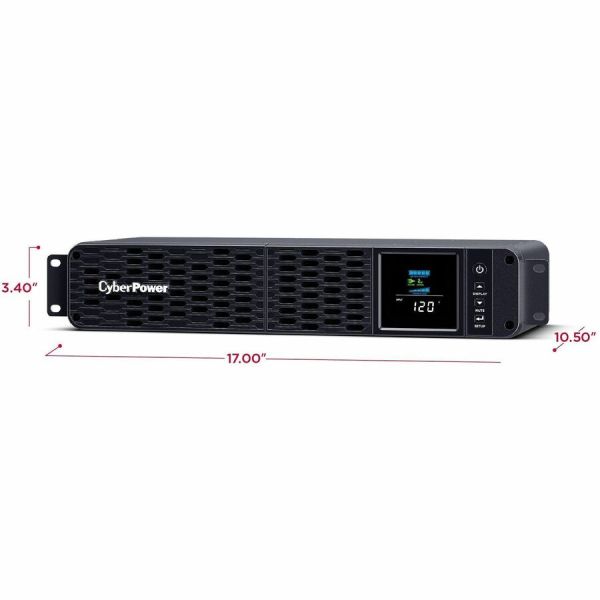

Depth10.5"
-
EMI/RFI Noise FilterYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Height3.4"
-
Input Frequency63 Hz
-
Input Voltage120 V AC
-
Input Voltage Range88 VAC - 144 VAC
-
Limited Warranty3 Year
-
Load Capacity (VA)1500 VA
-
Load Capacity (Watt)1000 W
-
Manufacturer Part NumberCP1500PFCRM2U
-
Maximum Operating Elevation10000 ft
-
Maximum Operating Temperature104°F (40°C)
-
Maximum Storage Elevation50000 ft
-
Network ManagementSNMP/HTTP Remote Monitoring SNMP/Webcard
-
Number of Batteries2
-
Number of Battery & Surge Outlets8
-
Output Frequency60 Hz
-
Overload ProtectionYes
-
Plug/Connector TypeNEMA 5-15P
-
Product ColorBlack
-
Product LinePFC Sinewave
-
Product ModelCP1500PFCRM2U
-
Product NameCP1500PFCRM2U PFC Sinewave UPS Systems
-
Product TypeLine-interactive UPS
-
Rack Height2U
-
Receptacle Detail8 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Replaceable BatteryYes
-
Serial PortYes
-
Status IndicatorsMultifunction LCD
-
Storage Temperature5°F (-15°C) - 113°F (45°C)
-
Surge Energy Rating1500 J
-
Thermal Dissipation15.24 W
-
Transfer Time4 ms
-
Typical Battery Recharge Time8 Hour
-
USB (HID Compliant) PortYes
-
Waveform TypeSine Wave
-
Width17"
