APC by Schneider Electric NetShelter 9000 32-Outlet PDU

Product Number: SYNX6042807
$3,429.32
Ships Free - This items ships free with your order
Delivered by Wed 12/4 Thu 12/5 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

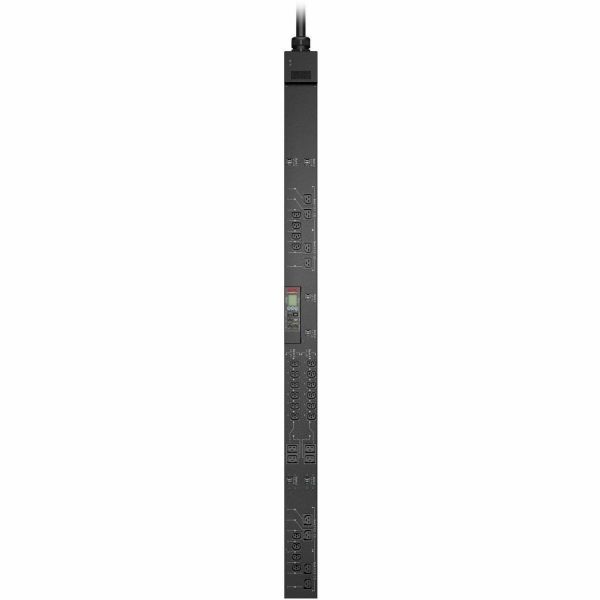

APC by Schneider Electric NetShelter 9000 32-Outlet PDU
Switched - IEC 60309 60A 3P+PE - 12 x IEC 60320 C19/C21, 20 x IEC 60320 C13/C15 - 208 V - Network (RJ-45) - 6 ft Cord Length - Rack-mountable
Description:

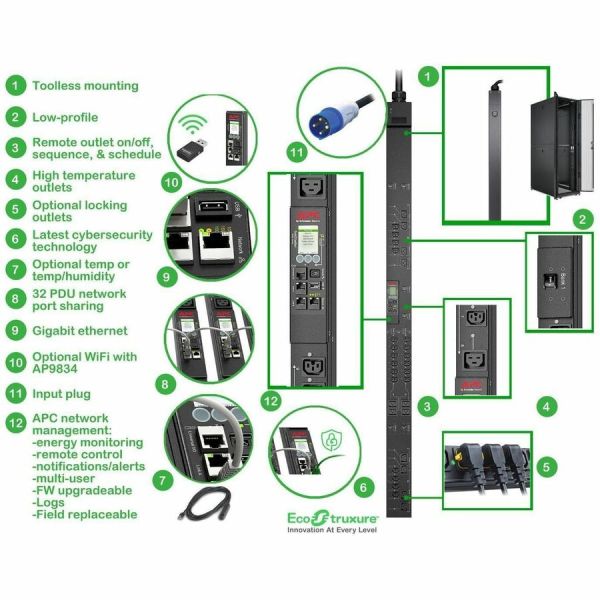

With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.
More from the Manufacturer
  • Provide circuit protection and easy configuration for trouble-free access
  • Remotely control individual outlets for rebooting of locked equipment with switched PDUs
  • IEC 60320 C19/C21 receptacle type to ensure maximum usability and reliable power output
  • Three Phase phase PDU provides dependable power output with maximum efficiency

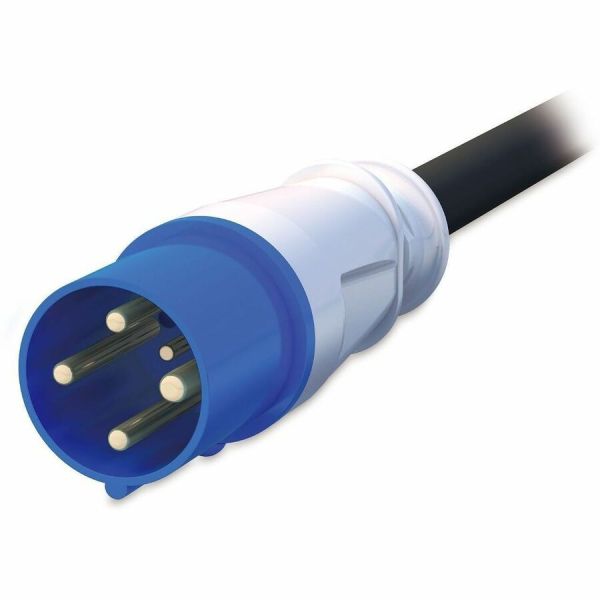

  • IEC 60309 60A 3P+PE plug/connector type for reliable, productive connectivity and optimal power output
  • 208 V input voltage for maximum feasibility and added productivity
  • 208 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    3 years repair or replace
  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Listed|FCC part 15 class A
  • Cord Length
    6 ft
  • Country of Origin
    India
  • Depth
    3"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330951&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
  • Environmentally Friendly
    Yes
  • Green Premium
    Yes
  • Height
    72.2"
  • Input Current
    60 A
  • Input Voltage
    208 V
  • Limited Warranty
    3 Year
  • Management
    SNMP Redfish
  • Manufacturer Part Number
    APDU9966
  • Mount Type
    Rack-mountable
  • Network (RJ-45)
    Yes
  • Output Voltage
    208 V AC
  • Package Contents
    NetShelter 9000 32-Outlet PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
  • Phase
    Three Phase
  • Plug/Connector Type
    IEC 60309 60A 3P+PE
  • Power Rating (VA)
    17.30 kVA
  • Power Rating (Watt)
    17.30 kW
  • Product Name
    NetShelter 9000 32-Outlet PDU
  • Product Series
    9000
  • Product Type
    PDU
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330951&lang=en-us
  • REACH free of SVHC
    No
  • Receptacle Detail
    12 x IEC 60320 C19/C21 20 x IEC 60320 C13/C15
  • Receptacle Type
    IEC 60320 C13/C15 IEC 60320 C19/C21
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9966_ROHS_DECLARATION&p_FileName=APDU9966KIT_ROHS_DECLARATION_US.pdf
  • WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Width
    4.4"
