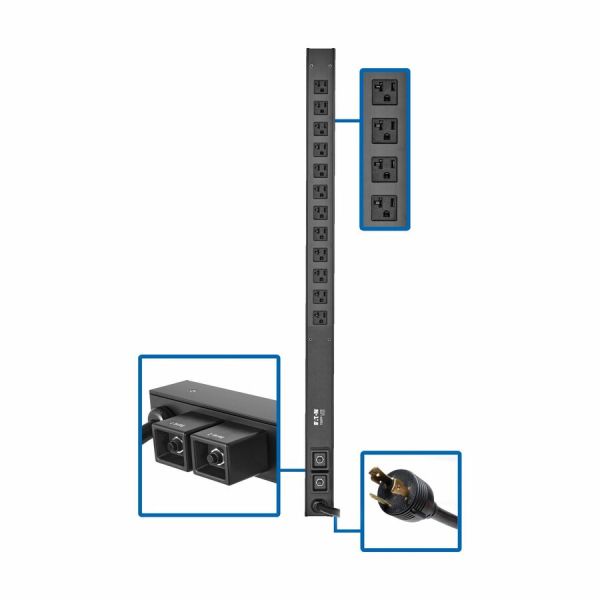

Eaton Tripp Lite Series 2.9kW 120V Single-Phase Basic PDU - 12 NEMA 5-15/20R Outlets, L5-30P Input, 10 ft. Cord, 36 in. 0U Rack-Mount
Product Number: SYNX6047311
$317.22
Loading...
Loading...
Product Description
Eaton Tripp Lite Series 2.9kW 120V Single-Phase Basic PDU - 12 NEMA 5-15/20R Outlets, L5-30P Input, 10 ft. Cord, 36 in. 0U Rack-Mount
Basic - NEMA L5-30P - 12 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Rack-mountable
Description:
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for data centers, computer rooms and network closets, the PDUV30-36 features two breakered load banks, each with six 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The 36-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Typical Applications
Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for data centers, computer rooms and network closets, the PDUV30-36 features two breakered load banks, each with six 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The 36-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Typical Applications
Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
- 12 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Switchless design helps prevent accidental shutdowns that can lead to costly downtime
- 10 ft. cord with NEMA L5-30P single-phase input connects to AC power source
- 36 in. 0U PDU with included mounting brackets installs in rack or under counter
- 2-year limited warranty
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
- NEMA 5-15/20R receptacle type to ensure maximum usability and reliable power output
- Single Phase phase PDU for reliable performance with maximum productivity
- NEMA L5-30P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for optimal performance with maximum usability
- 100 V AC output voltage for better reliance and maximum usability
Product Specifications
-
Brand NameTripp Lite by Eaton
-
Country of OriginChina
-
Depth3.8"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Height36"
-
Input Current30 A
-
Input Voltage120 V AC
-
Limited Warranty2 Year
-
Manufacturer Part NumberPDUV30-36
-
Mount TypeRack-mountable
-
Mounting OrientationVertical
-
Output Voltage100 V AC 120 V AC 127 V AC
-
Package ContentsPDUV30-36 12-Outlet PDU 2 x Plug Retention Brackets with Installation Hardware Rack-mounting Hardware Owner's Manual
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA L5-30P
-
Power Rating (Watt)3050 W
-
Product ModelPDUV30-36
-
Product NamePDUV30-36 12-Outlet PDU
-
Product TypePDU
-
Protection TypeOverload Protection
-
Rack Height0U
-
Receptacle Detail12 x NEMA 5-15/20R
-
Receptacle TypeNEMA 5-15/20R
-
Width2.3"
