StarTech.com 4 Port VGA Over CAT5 Video Extender - 450ft (150m)
Product Number: SYNX1968296
$158.81
Loading...
Loading...
Product Description
StarTech.com 4 Port VGA Over CAT5 Video Extender - 450ft (150m)
Extend and distribute a VGA signal to up to 4 displays over Cat5 cable - vga over cat5 extender - vga extender over cat5 - vga over cat 5 extender - vga extender over cat 5 - VGA to Cat5 Extender
Description:

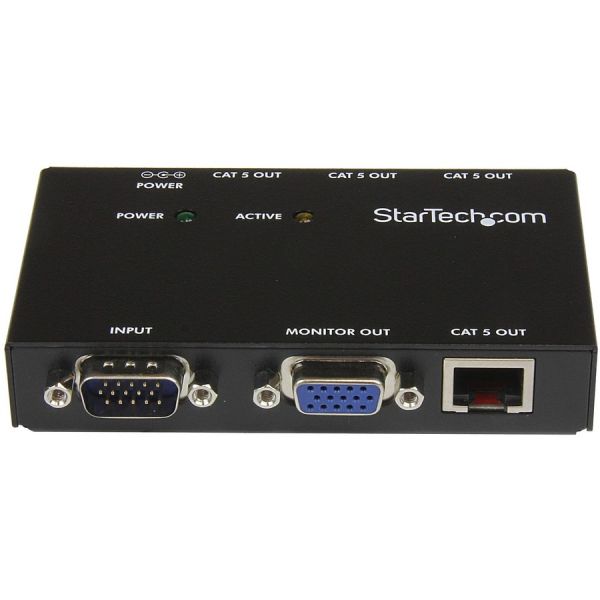

The ST1214T 4 Port VGA Video Extender over Cat 5 allows a single VGA source to be broadcast to up to four remote displays at distances of up to 500 feet (150 meters). Designed for use with our ST121 VGA Video over Cat 5 extension series of devices, the ST1214T is one of many options designed to help you create a custom VGA distribution and extension solution for many applications including digital signage and video conferencing.
Consisting of the transmitter unit only, this product requires a single ST121EXT VGA over Cat 5 Repeater can be used to increase the total VGA extension distance by an additional 500 feet(150 meters), allowing the original VGA signal to be broadcast a total distance of 1000 feet (300 meters) from transmitter to receiver. Similarly, up to three repeater units can be used between the transmitter and receiver units allowing a monitor to be connected at each repeater station , while further extending the total distance between the transmitter and receiver units.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
Consisting of the transmitter unit only, this product requires a single ST121EXT VGA over Cat 5 Repeater can be used to increase the total VGA extension distance by an additional 500 feet(150 meters), allowing the original VGA signal to be broadcast a total distance of 1000 feet (300 meters) from transmitter to receiver. Similarly, up to three repeater units can be used between the transmitter and receiver units allowing a monitor to be connected at each repeater station , while further extending the total distance between the transmitter and receiver units.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
- Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending
- 1600 x 1200 maximum video resolution for stunning, lively result with optimal viewing usability
- VGA in for your convenience and optimal audio/video output with maximum usage feasibility
- VGA out for your convenience and optimal audio/video output with maximum usage feasibility
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- 1 input devices supported for maximum feasibility and usage convenience
- 492.13 ft maximum operating distance to allow efficient coverage and maximum usability
- VGA graphics mode for an immersive and sharp viewing experience
- Desktop form factor for your video extender transmitter takes up far less physical space, thus providing maximum space efficiency
- Video Extender Transmitter is all you need for dependable and productive audio/video transmission
- 1600 x 1200 maximum video resolution for a vivid, crystal clear display with added productivity
- 1 input devices supported for maximum productive usability
- 492.13 ft maximum operating distance for reliable coverage and maximum portability
- VGA graphics mode for stunning, lively video quality
Related Articles
Need more information?
Ask a Question
Product Specifications
-
Brand NameStarTech.com
-
Connectivity TechnologyWired
-
Country of OriginTaiwan
-
Environmentally FriendlyYes
-
Form FactorDesktop
-
Graphics ModesVGA
-
Input Voltage9 V DC
-
Limited Warranty2 Year
-
Manufacturer Part NumberST1214T
-
Maximum Operating Distance492.13 ft
-
Maximum Video Resolution1600 x 1200
-
Media Type SupportedTwisted Pair
-
Network (RJ-45)Yes
-
Number of Input Devices Supported1
-
Number of Network (RJ-45) Ports4
-
Number of Output Devices Supported1
-
Number of VGA Inputs1
-
Number of VGA Outputs1
-
Package Contents4 Port VGA Video Extender over Cat 5 4 x Rubber Feet 1 x Universal Power Adapter (NA/UK/EU)
-
Product ColorBlack
-
Product Name4 Port VGA Video Extender over Cat 5
-
Product TypeVideo Extender Transmitter
-
Transmitter Depth4.10"
-
Transmitter Height0.80"
-
Transmitter Weight (Approximate)7.09 oz
-
Transmitter Width2.50"
-
Twisted Pair Cable StandardCategory 5
-
VGA InYes
-
VGA OutYes
