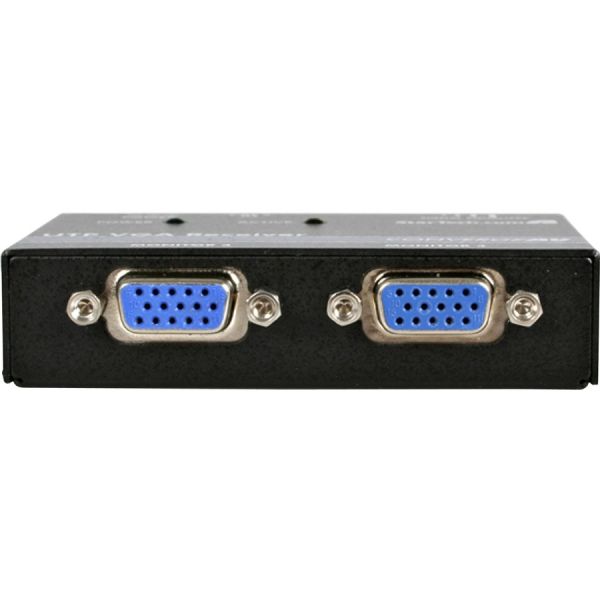

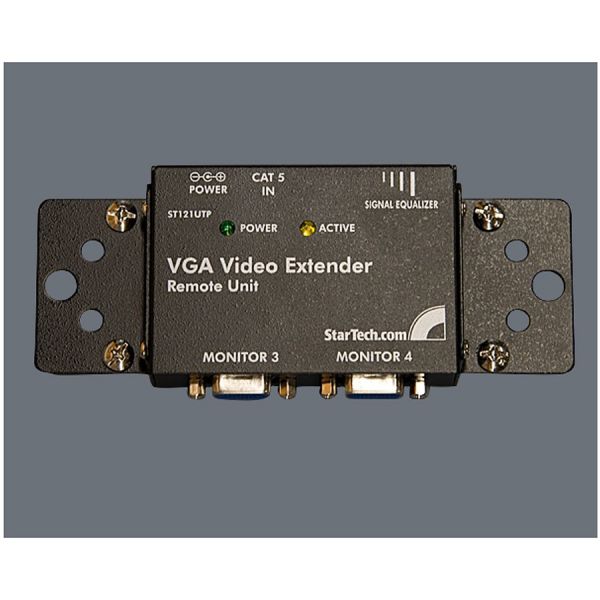

StarTech.com VGA over CAT5 remote receiver for video extender
Product Number: SYNX1968298
$84.06
Loading...
Loading...
Product Description
StarTech.com VGA over CAT5 remote receiver for video extender
Extend and distribute a VGA signal to up to 4 displays over Cat5 cable - vga receiver - VGA over Cat5 Receiver - VGA to Cat5 receiver -vga over cat 5 extender
Description:
The ST121R VGA over Cat5 Video Extender Receiver is specifically designed for use as the receiver unit to the StarTech.com ST1218T 8 Port VGA over Cat5 UTP Extender transmitter units, allowing you to split and extend a single VGA source to up to four remote displays.
From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver - supporting distances of up to 150 meters (500 feet).
A cost-effective video extension solution, this receiver is ideal for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver - supporting distances of up to 150 meters (500 feet).
A cost-effective video extension solution, this receiver is ideal for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
- Extends video cables by up to 500 ft. (150m)
- Pure hardware design, no software or drivers required
- Included mounting brackets
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Related Articles
Need more information?
Ask a Question
Product Specifications
-
Additional InformationCat5 extension design allows you to make use of existing Cat 5 or better wiring infrastructure Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment Included mounting brackets provide versatile mounting options such as a wall, desk, or cabinet for a clean and manageable solution
-
Brand NameStarTech.com
-
Connectivity TechnologyWired
-
Country of OriginTaiwan
-
Environmentally FriendlyYes
-
Graphics ModesVGA
-
Input Voltage9 V DC
-
Limited Warranty2 Year
-
Manufacturer Part NumberST121R
-
Maximum Operating Distance492.13 ft
-
Maximum Video Resolution1024 x 768
-
Media Type SupportedTwisted Pair
-
Network (RJ-45)Yes
-
Number of Input Devices Supported1
-
Number of Network (RJ-45) Ports1
-
Number of Output Devices Supported2
-
Number of VGA Outputs2
-
Package ContentsVGA Over CAT5 UTP Receiver 1 x 9V Power Adapter 1 x Instruction Manual
-
Product ColorBlack
-
Product NameVGA Video Extender Remote Receiver over Cat 5
-
Product TypeVideo Extender Receiver
-
Receiver Depth2.60"
-
Receiver Height0.80"
-
Receiver Weight (Approximate)5.93 oz
-
Receiver Width3.30"
-
Twisted Pair Cable StandardCategory 5
-
VGA OutYes
