ATEN HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)-TAA Compliant
Product Number: SYNX5291504
$378.86
Loading...
Loading...
Product Description
ATEN HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)-TAA Compliant
1 Input Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
Description:

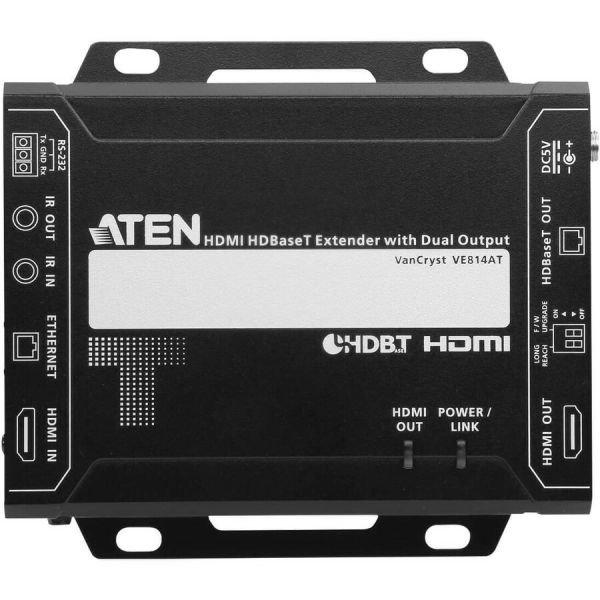

ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

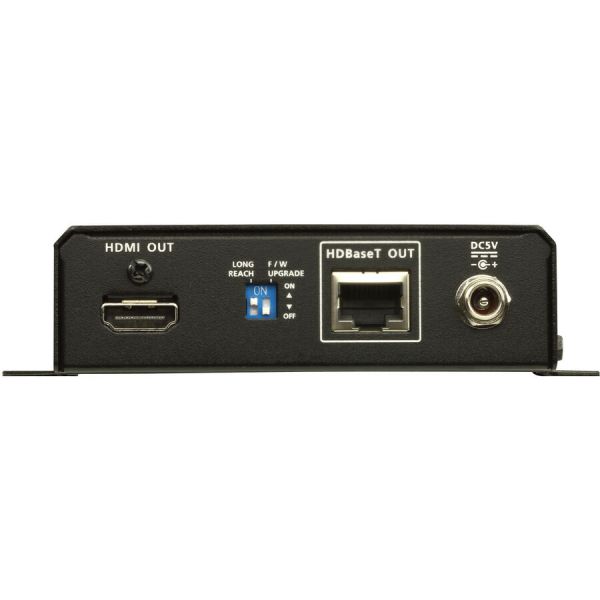

- Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- Superior video quality:
- 4K up to 100 m
- 1080p up to 150 m when in HDBaseT Long Reach Mode
- Extends Ethernet communication using the Ethernet pass-through port
- Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
- ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output

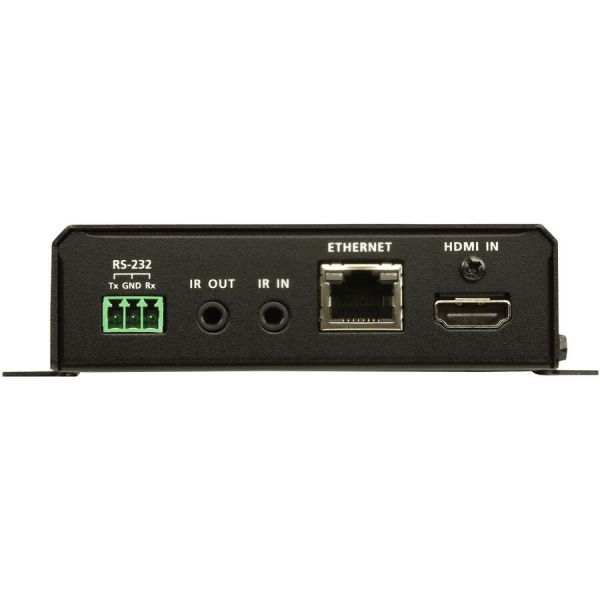

- RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Supports wide screen format
Related Articles
Need more information?
Ask a Question
Product Specifications
-
Brand NameATEN
-
Connectivity TechnologyWired
-
Country of OriginTaiwan
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Graphics Modes4K
-
HDMI InYes
-
HDMI OutYes
-
Manufacturer Part NumberVE814AT
-
Maximum Operating Distance492.13 ft
-
Maximum Video Resolution4096 x 2160
-
Media Type SupportedTwisted Pair
-
Network (RJ-45)Yes
-
Number of HDMI Inputs1
-
Number of HDMI Outputs1
-
Number of Input Devices Supported1
-
Number of Network (RJ-45) Ports1
-
Package ContentsHDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A) 1 x RS-232 Terminal Block 1 x Power Adapter 1 x User Instructions
-
Product LineVanCryst
-
Product ModelVE814AT
-
Product NameHDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)
-
Product TypeVideo Extender Transmitter
-
Serial PortYes
-
Transmitter Depth5.35"
-
Transmitter Height1.14"
-
Transmitter Weight (Approximate)15.87 oz
-
Transmitter Width3.98"
-
Twisted Pair Cable StandardCategory 6a
