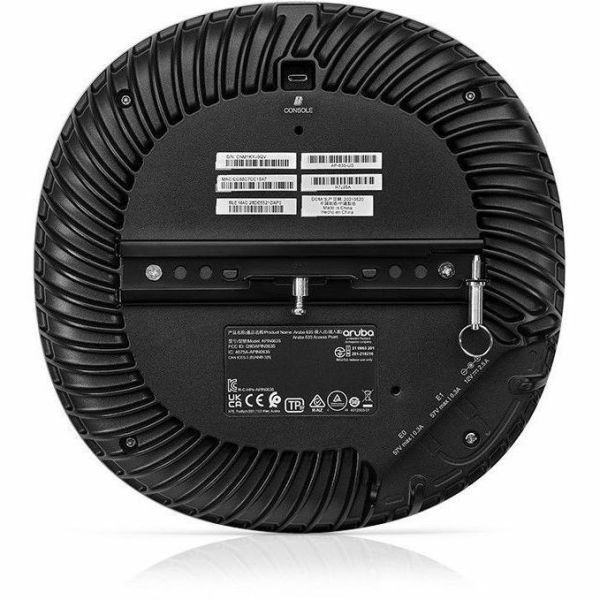

HPE AP-634 Tri Band IEEE 802.11 a/b/g/n/ac/ax 3.90 Gbit/s Wireless Access Point - Indoor
Product Number: ETLZ1077926264
$1,322.43
Loading...
Loading...
Product Description
HPE AP-634 Tri Band IEEE 802.11 a/b/g/n/ac/ax 3.90 Gbit/s Wireless Access Point - Indoor
2.40 GHz, 5 GHz, 6 GHz - External - MIMO Technology - 2 x Network (RJ-45) - 2.5 Gigabit Ethernet, Gigabit Ethernet - Bluetooth 5 - 8.70 W - Wall Mountable, Ceiling Mountable
Description:
ARUBA 630 SERIES CAMPUS ACCESS POINTS | Fast, resilient, and secure Wi-Fi 6E connectivity
For enterprises who need more wireless capacity and wider channels, Aruba 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity
MORE CAPACITY AND WIDER CHANNELS
The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2x2:2 MIMO in all three bands (3.9 Gbps aggregate peak).
Advantages of 6GHz
Wi-Fi 6E provides up to 1200 MHz in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.
Device class support
The 630 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.
The connectorized models will typically operate as Standard Power access points, but may also be allowed to operate as Low Power Indoor devices in some countries.
LESS INTERFERENCE
630 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without experiencing interference. Since there is only 50 MHz between 5 GHz and the 6 GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands
BUSINESS CONTINUITY
The Series 630 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1 or 2.5 Gbps, these dual ports provide business continuity for mission critical applications.
GLOBAL READINESS
While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching 6 GHz differently. The 630 Series APs are set up to automatically update regulatory rules once 6E regulations have been approved and certified.
EXTEND THE BENEFITS OF WI-FI 6
The 630 Series APs are based on the 802.11ax standard, which means that all its efficiency and security enhancements are also available on the 6 GHz band. Wi-Fi 6 features such as Orthogonal Frequency Division Multiple Access (OFDMA), BSS coloring etc. are fully supported on the Aruba Wi-Fi 6E access points as well.
For enterprises who need more wireless capacity and wider channels, Aruba 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity
MORE CAPACITY AND WIDER CHANNELS
The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2x2:2 MIMO in all three bands (3.9 Gbps aggregate peak).
Advantages of 6GHz
Wi-Fi 6E provides up to 1200 MHz in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.
Device class support
The 630 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.
The connectorized models will typically operate as Standard Power access points, but may also be allowed to operate as Low Power Indoor devices in some countries.
LESS INTERFERENCE
630 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without experiencing interference. Since there is only 50 MHz between 5 GHz and the 6 GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands
BUSINESS CONTINUITY
The Series 630 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1 or 2.5 Gbps, these dual ports provide business continuity for mission critical applications.
GLOBAL READINESS
While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching 6 GHz differently. The 630 Series APs are set up to automatically update regulatory rules once 6E regulations have been approved and certified.
EXTEND THE BENEFITS OF WI-FI 6
The 630 Series APs are based on the 802.11ax standard, which means that all its efficiency and security enhancements are also available on the 6 GHz band. Wi-Fi 6 features such as Orthogonal Frequency Division Multiple Access (OFDMA), BSS coloring etc. are fully supported on the Aruba Wi-Fi 6E access points as well.
- Unlocks the 6 GHz band to more than double the available capacity
- Comprehensive tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 3.9 Gbps maximum aggregate data rate
- Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and augmented reality/virtual reality applications
- Unique Ultra Tri-Band (UTB) filtering enables 5 GHz and 6 GHz to operate without restrictions or interference
- High availability with 2.5 Gbps dual ethernets port for hitless failover of Ethernet and power
- Built in GPS receivers and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
- Wireless Access Point offers maximum wireless connection productivity with added dependability
- 3.90 Gbit/s wireless transmission speed provides high and efficient communication with maximum efficiency
- IEEE 802.11 a/b/g/n/ac/ax wireless LAN standard offers a reliable, convenient way of communication
- 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- PoE+ port to receive data and power of up to 25.5W through a single cable in places where a power outlet is not available
- External antenna form factor for reliable connectivity with maximum productivity
- Wall Mountable form factor offers comfortable usage for a longer duration
Product Specifications
-
Antenna Form FactorExternal
-
Beamforming TechnologyYes
-
Bluetooth StandardBluetooth 5
-
Brand NameHPE
-
Depth2"
-
Encryption StandardWPA WPA2 WPA3-ENT WPA2-MPSK WPA3-SAE WPA-ENT
-
Ethernet Technology2.5 Gigabit Ethernet Gigabit Ethernet
-
Form FactorWall Mountable Ceiling Mountable
-
Frequency Band2.40 GHz 5 GHz 6 GHz
-
Height8.7"
-
Indoor/OutdoorIndoor
-
Limited WarrantyLifetime
-
MIMO TechnologyYes
-
Manufacturer Part NumberS1G50A
-
Network BandTri Band
-
Number of Network (RJ-45) Ports2
-
PoE PD PortYes
-
Power Consumption8.70 W
-
Product ModelAP-634
-
Product NameAP-634 Wireless Access Point
-
Product Series630
-
Product TypeWireless Access Point
-
USBYes
-
USB StandardUSB 2.0
-
Width8.7"
-
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
-
Wireless Transmission Speed3.90 Gbit/s
