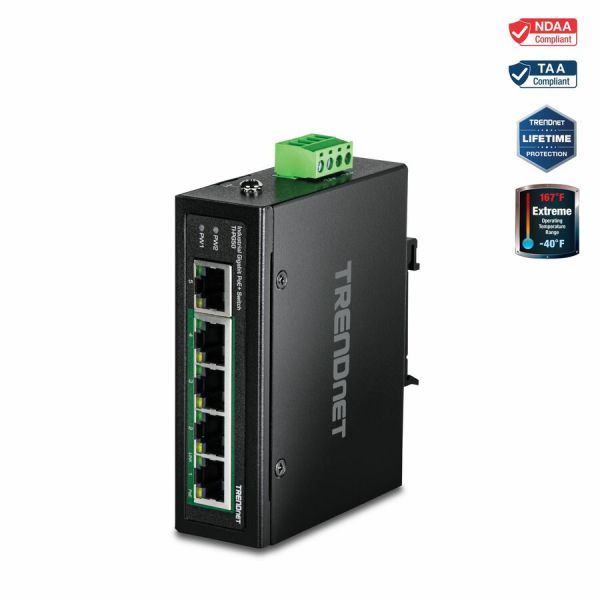

TRENDnet 5-Port Hardened Industrial Unmanaged Gigabit Switch; TI-PG50; 10/100/1000Mbps; DIN-Rail Switch; 4 x Gigabit PoE+ Ports; 1 x Gigabit Port; Gigabit Ethernet Network Switch; Lifetime Protection
Product Number: SYNX5758849
$154.38
Loading...
Loading...
TRENDnet 5-Port Hardened Industrial Unmanaged Gigabit Switch; TI-PG50; 10/100/1000Mbps; DIN-Rail Switch; 4 x Gigabit PoE+ Ports; 1 x Gigabit Port; Gigabit Ethernet Network Switch; Lifetime Protection
5-Port Industrial Gigabit PoE + DIN-Rail Switch
Description:
4 x Gigabit PoE+ ports, 1 x Gigabit port,120W PoE power budget,10Gbps switching capacity
Power supply sold separately (models: TI-S12048, TI-S24048, and 48VDC3000)
Supports jumbo frames up to 9KB
Hardened IP30 rated metal housing, Includes wall mounting and DIN-Rail brackets
Operating temperature range of -40° - 75° C (-40° - 167° F)
Dual redundant power inputs with overload current protection
Alarm relay triggered by power failure
Lifetime TRENDnet Manufacturer's Warranty
Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048)
NDAA / TAA compliant (U.S. and Canada only)
TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments
PoE Power
A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.
Fault Tolerance
The industrial switch features redundant power inputs with overload current protection.
Industrial Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° - 75° C (-40° - 167° F).
Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall mount hardware
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Redundant Power
Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)
Switching Capacity
10Gbps switching capacity
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point on the industrial switch protects equipment from external electrical surges
PACKAGE CONTENTS
TI-PG50
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit
More from the Manufacturer
- 4 x Gigabit PoE+ ports, 1 x Gigabit port,120W PoE power budget,10Gbps switching capacity
- Power supply sold separately (models: TI-S12048, TI-S24048, and 48VDC3000)
- Supports jumbo frames up to 9KB
- Hardened IP30 rated metal housing, Includes wall mounting and DIN-Rail brackets
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual redundant power inputs with overload current protection
- Alarm relay triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048)
- Effectively reduces downtime with improved network performance
- Quickly and easily set up a wired network with 5 networking ports
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor for added reliability and dependability
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Twisted Pair media support for a dependable and productive connectivity
-
Brand NameTRENDnet
-
Country of OriginTaiwan
-
Depth7"
-
Environmental CertificationChina Environmental United Certification Center (CEC)
-
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Form FactorDIN Rail Mountable Wall Mountable
-
Height3"
-
Layer Supported2
-
Limited WarrantyLifetime
-
Manufacturer Part NumberTI-PG50
-
Media Type SupportedTwisted Pair
-
NDAA CompliantYes
-
Network Technology10/100/1000Base-T
-
Package Contents5-Port Industrial Gigabit PoE+ DIN-Rail Switch Quick Installation Guide Removable Terminal Block DIN-Rail and Wall Mount Kit
-
Power SourcePower Supply
-
Product ConditionNew
-
Product ModelTI-PG50
-
Product Name5-Port Industrial Gigabit PoE + DIN-Rail Switch
-
Product TypeEthernet Switch
-
Total Number of Network Ports5
-
Width4"
