StarTech.com Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots 30W Layer/L2 Switch Managed Ethernet Network Switch IP-30/-40C to 75C
- POWER OVER ETHERNET: Industrial 8-port Gigabit PoE+ switch with 2 SFP ports, suitable for PoE devices such as cameras, sensors and WiFi APs using Cat5e or higher network cables; Up to 30W per PoE port with 200W total power budget for the switch
- FLAT DESIGN: Compact steel enclosure allows front access for easy installation and troubleshooting; IP-30 / vibration / shock / free fall ratings & 6kV ESD; DIN rail or wall mounting options available with all hardware included; RJ45 dust caps included
- FULL LAYER 2 MANAGEMENT CAPABILITIES: Built in web-based GUI / Telnet / SSH; This switch can be managed to configure features like Ports / VLAN / Link Aggregation / SNMP / QoS / Spanning Tree among others
- TECH SPECS: 8 x RJ45; 2 x Open SFP slot (MSA Compliant); 48-56VDC power input; 10/100/1000 Mbps; MTBF 500,000+ hours; Redundant power inputs with terminal block kit or AC adapter (not included); IEEE 802.3af & IEEE 802.3at Compliant

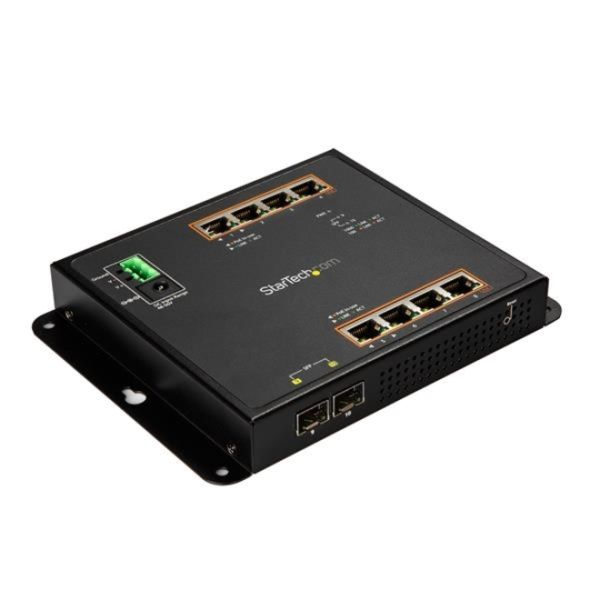

StarTech.com Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots 30W Layer/L2 Switch Managed Ethernet Network Switch IP-30/-40C to 75C - Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your network
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection. Supports PoE+ for flexible use
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget). Wall-mountable with front access

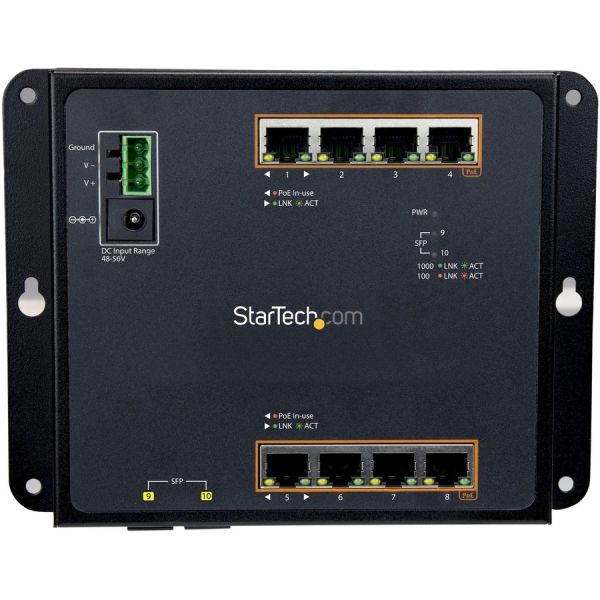

Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable. Efficient Layer 2 management
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability. Rugged IP30 industrial design
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments. Reliable connection for seamless network performance
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- POWER OVER ETHERNET: Industrial 8-port Gigabit PoE+ switch with 2 SFP ports, suitable for PoE devices such as cameras, sensors and WiFi APs using Cat5e or higher network cables; Up to 30W per PoE port with 200W total power budget for the switch
- FLAT DESIGN: Compact steel enclosure allows front access for easy installation and troubleshooting; IP-30 / vibration / shock / free fall ratings & 6kV ESD; DIN rail or wall mounting options available with all hardware included; RJ45 dust caps included
- FULL LAYER 2 MANAGEMENT CAPABILITIES: Built in web-based GUI / Telnet / SSH; This switch can be managed to configure features like Ports / VLAN / Link Aggregation / SNMP / QoS / Spanning Tree among others
- TECH SPECS: 8 x RJ45; 2 x Open SFP slot (MSA Compliant); 48-56VDC power input; 10/100/1000 Mbps; MTBF 500,000+ hours; Redundant power inputs with terminal block kit or AC adapter (not included); IEEE 802.3af & IEEE 802.3at Compliant
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 8 port Gigabit switch is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The switch is rail mountable, you can easily install it in racks with concrete stability
- Managed switch provides a reliable foundation for your network
- Gigabit Ethernet port for ultra-fast network speeds
- Twisted Pair media support ensures maximum convenience and great usability
- Effectively increases available bandwidth on your network
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Twisted Pair media support for efficient and reliable connectivity
-
Brand NameStarTech.com
-
Country of OriginTaiwan
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Expansion Slot TypeSFP
-
Form FactorMagnetic Mount Rail-mountable Wall Mountable
-
Height1"
-
Layer Supported2
-
Length5.3"
-
Limited Warranty2 Year
-
ManageableYes
-
Manufacturer Part NumberIES101GP2SFW
-
Media Type SupportedOptical Fiber Twisted Pair
-
ModularYes
-
Network (RJ-45)Yes
-
Network Technology10/100/1000Base-T 1000Base-SX/LX
-
Networking StandardsIEEE 802.1ab IEEE 802.1D IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3ad
-
Number of SFP Slots2
-
Number of Total Expansion Slots2
-
Package Contents8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections 1 x Terminal Block Connector 4 x Screw Anchors 4 x Screws 4 x Attaching Pins 4 x Locking Pins 4 x Washers 4 x Magnets 1 x DIN rail 3 x DIN-rail Screws 8 x RJ45 Dust Caps 2 x SFP Dust Caps 1 x Quick-start Guide
-
PoE (RJ-45) PortYes
-
Product MaterialSteel
-
Product Name8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections
-
Product TypeEthernet Switch
-
Total Number of Network Ports8
-
Width7"
