Product Description

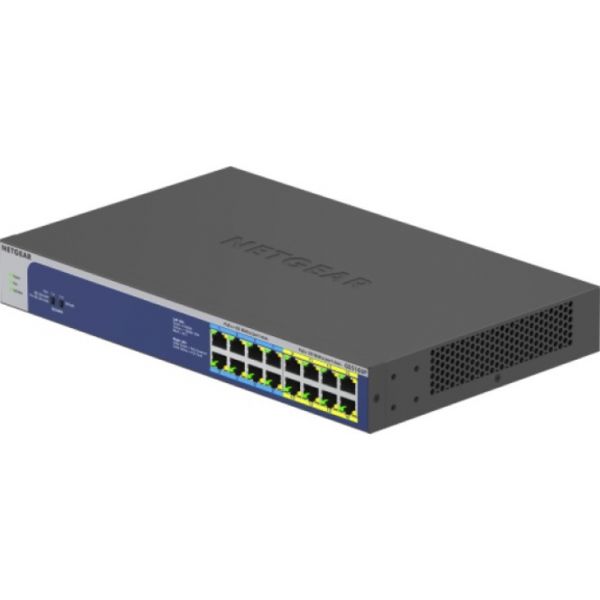

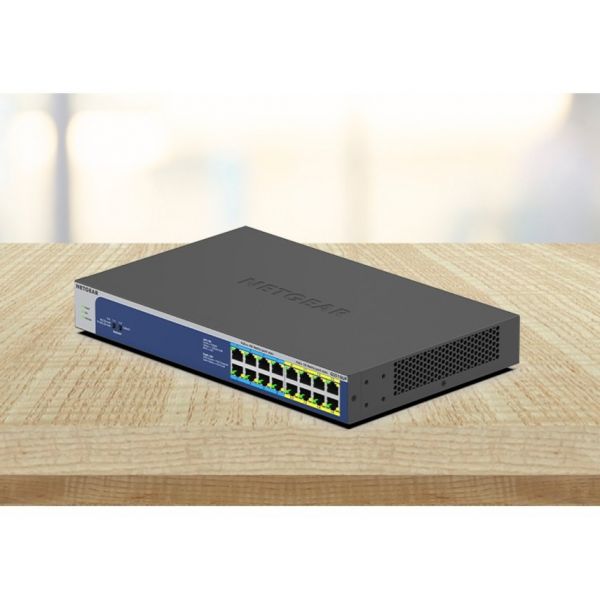

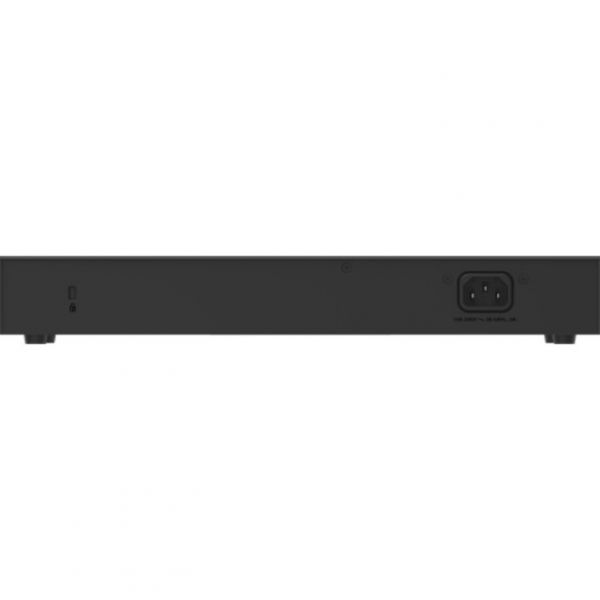

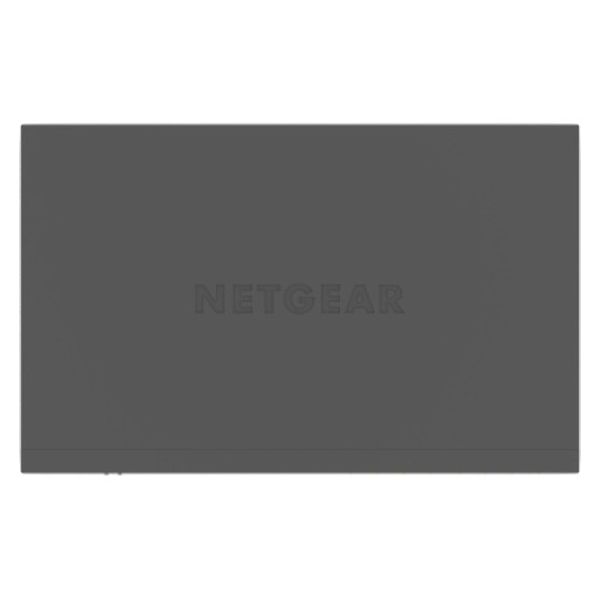

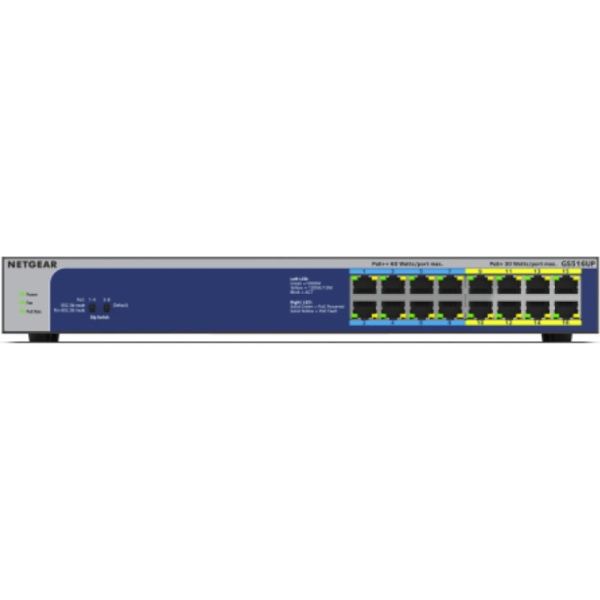

Netgear GS516UP Ethernet Switch
16 Ports - 2 Layer Supported - 456.80 W Power Consumption - 380 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Rack-mountable - Lifetime Limited Warranty
Description:
GS516PP and GS524PP Unmanaged Gigabit Ethernet PoE+ Switches
The GS516PP 16-port High-power PoE+ Gigabit Ethernet Unmanaged Switch and the GS524PP 24-port High-power PoE+ Gigabit Ethernet Unmanaged Switch join the NETGEAR Unmanaged switch family, adding full 16 and 24 port PoE+ support for flexible deployment of modern high-power PoE devices. Companies can now deploy denser PoE+ devices connected to a single switch instead of multiples with a total PoE power budget of 260W (GS516PP) and 300W (GS524PP). The quiet design makes the GS516PP and GS524PP ideal for any home or business environment.
GS516UP and GS524UP Unmanaged Gigabit Ethernet High-power PoE+ switches with PoE++ ports NETGEAR brings even larger PoE budgets on Unmanaged switches with Ultra60 PoE++ technology with two new 16- Port (GS516UP) and 24-port (GS524UP) Unmanaged Switches, ideal for powerful PoE+/PoE++ installations with impressive PoE budgets up to 380W and 480W, a compact size, plug-and-play installation, and reliable performance at affordable prices.
These switches can support all types of PoE installation with larger PoE budgets and ports that provide PoE+ and PoE++ power for up to 60W per port.
Standardized to IEEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port, allowing the connections of higher power required devices, such as high performance 802.11AX wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers, as well as other high-powered devices. The GS516UP and GS524UP has a PoE mode used to enable pre-802.bt compatibility for pre-bt devices that were created before 802.3bt Standard was ratified.
The GS516PP 16-port High-power PoE+ Gigabit Ethernet Unmanaged Switch and the GS524PP 24-port High-power PoE+ Gigabit Ethernet Unmanaged Switch join the NETGEAR Unmanaged switch family, adding full 16 and 24 port PoE+ support for flexible deployment of modern high-power PoE devices. Companies can now deploy denser PoE+ devices connected to a single switch instead of multiples with a total PoE power budget of 260W (GS516PP) and 300W (GS524PP). The quiet design makes the GS516PP and GS524PP ideal for any home or business environment.
GS516UP and GS524UP Unmanaged Gigabit Ethernet High-power PoE+ switches with PoE++ ports NETGEAR brings even larger PoE budgets on Unmanaged switches with Ultra60 PoE++ technology with two new 16- Port (GS516UP) and 24-port (GS524UP) Unmanaged Switches, ideal for powerful PoE+/PoE++ installations with impressive PoE budgets up to 380W and 480W, a compact size, plug-and-play installation, and reliable performance at affordable prices.
These switches can support all types of PoE installation with larger PoE budgets and ports that provide PoE+ and PoE++ power for up to 60W per port.
Standardized to IEEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port, allowing the connections of higher power required devices, such as high performance 802.11AX wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers, as well as other high-powered devices. The GS516UP and GS524UP has a PoE mode used to enable pre-802.bt compatibility for pre-bt devices that were created before 802.3bt Standard was ratified.
- High-power PoE with impressive PoE budgets for all types of PoE installations
- Simple set up with no software or configuration needed
- Per port LEDs for port activity and speed
- Energy efficient technology for power savings
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- 16 or 24 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 32 or 48Gb non-blocking switching
- Auto-MDI/MDIX eliminates the need for crossover cables
- Small, sturdy desktop metal case and quiet operation
- Ideal for small and medium offices
- Non-blocking switching architecture for maximum throughput at wire speed
- Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 16 ports
- Power Supply power source for required power supply to ensure maximum efficiency
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Desktop form factor for added reliability and dependability
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Product Specifications
-
Brand NameNetgear
-
Country of OriginThailand
-
Depth8.1"
-
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Form FactorDesktop Rack-mountable
-
Height1.7"
-
Layer Supported2
-
Limited WarrantyLifetime
-
ManageableNo
-
Manufacturer Part NumberGS516UP-100NAS
-
Media Type SupportedTwisted Pair
-
NDAA CompliantYes
-
Network Technology10/100/1000Base-T
-
Package ContentsGS516UP Ethernet Switch Power Cord Rackmount Kit Desktop Rubber Feet Insight Registration Flyer Installation Guide
-
PoE (RJ-45) PortYes
-
PoE Budget380 W
-
Power Consumption456.80 W
-
Power SourcePoE Power Supply
-
Product ModelGS516UP
-
Product NameGS516UP Ethernet Switch
-
Product TypeEthernet Switch
-
Total Number of Network Ports16
-
Uplink PortYes
-
Width13"
