Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 SC, 550 m, 850 nm

Product #: SYNX4032442
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

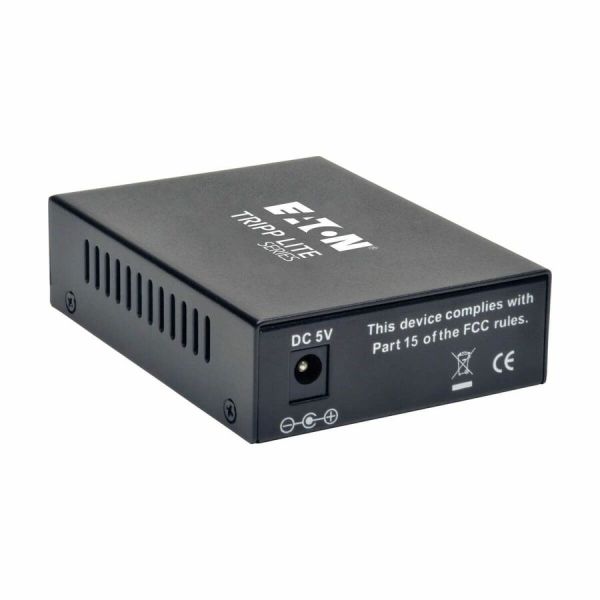

Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 SC, 550 m, 850 nm
1 x Network (RJ-45) - 10/100/1000Base-T, 1000Base-SX - Desktop
Tripp Lite's N785-001-SC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
More from the Manufacturer
  • Extends a Gigabit Ethernet signal up to 550M over Multimode Fiber Optic Cable
  • Auto detects Full/Half Duplex Transfer Mode
  • Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M
  • Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
  • Expand your network capabilities with this 2 transceiver/media converter
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • Desktop installation makes it ideal for deployments outside the wiring closet
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Tripp Lite series
  • Certifications & Standards
    FCC CE
  • Country of Origin
    China
  • DVI
    No
  • Depth
    2.8"
  • Digital Audio
    No
  • Digital Audio/Video
    No
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Gigabit Ethernet
  • Fiber Mode Supported
    Multi-mode
  • Fiber Optic Cable Wavelength
    850 nm
  • Form Factor
    Desktop
  • Height
    1"
  • Input Voltage
    5 V DC
  • Limited Warranty
    2 Year
  • Management Port
    No
  • Manufacturer Part Number
    N785001SCMM
  • Maximum Distance Supported
    0.55 km
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Network (RJ-45)
    Yes
  • Network Technology
    10/100/1000Base-T 1000Base-SX
  • Number of Network (RJ-45) Ports
    1
  • Number of SC Ports
    1
  • Package Contents
    10/100/1000 SC Multimode Media Converter, 550M, 850nm AC Power Adapter User Manual
  • Parallel Port
    No
  • Product Color
    Black
  • Product Model
    N785-001-SC-MM
  • Product Name
    10/100/1000 SC Multimode Media Converter, 550M, 850nm
  • Product Type
    Transceiver/Media Converter
  • Total Number of Ports
    2
  • USB
    No
  • Width
    4.7"
