CyberPower Switched ATS PDU PDU44005 10-Outlets PDU
Product Number: SYNX6505223
$983.90
Loading...
Loading...
Product Description

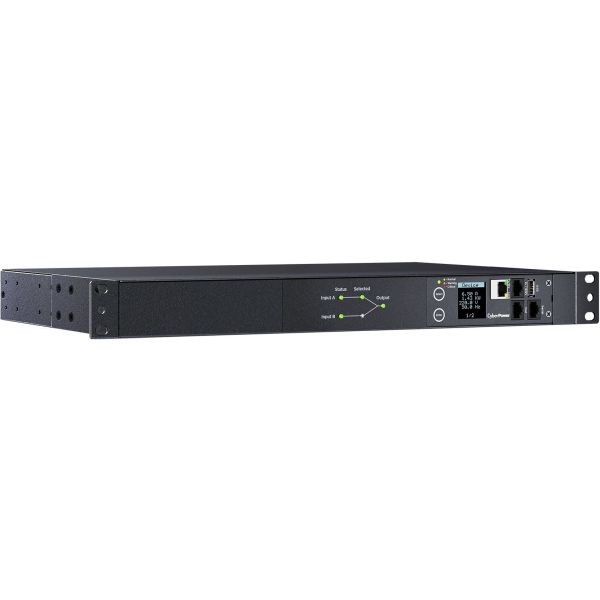

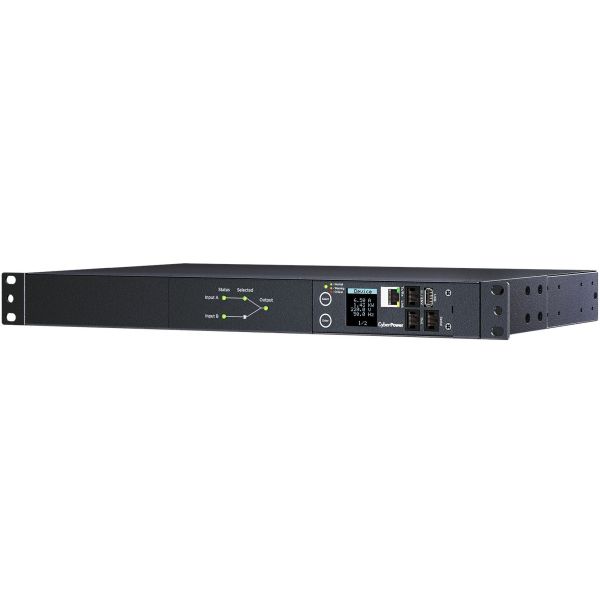

CyberPower Switched ATS PDU PDU44005 10-Outlets PDU
Switched - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Description:
Ensure continued operation of critical devices with the CyberPower PDU44005 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

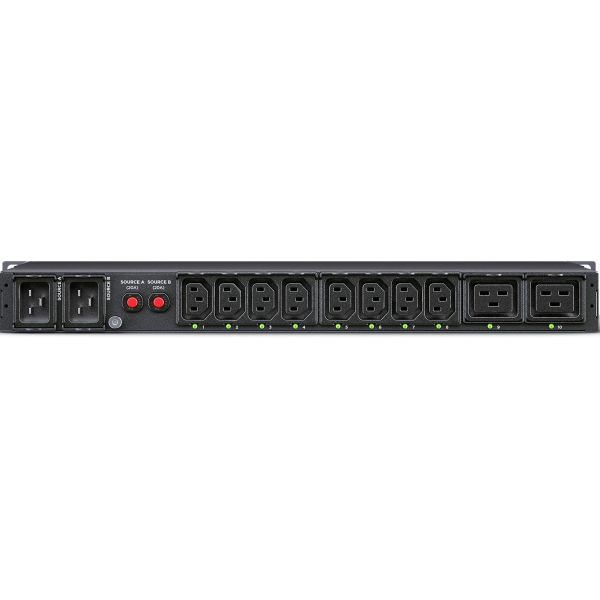

The PDU44005 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual IEC C20 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44005 is protected by a three-year limited warranty.
The PDU44005 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual IEC C20 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44005 is protected by a three-year limited warranty.
- Automated notifications: Email, SMS Text, and SNMP Trap
- Phase: Single
- Amps: 20A (Derated to 16A)
- Volts: 200-240V
- Frequency: 50/60Hz
- Plug type: 2 x IEC-320 C20
- Outlets: 8 x IEC-320 C13, 2 x IEC-320 C19
- Size: 1U Rackmount
- Warranty: 3 year
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Modular design for your convenience and optimal usage
- Single Phase phase PDU provides optimal power output with added usability
- IEC 60320 C20 plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for better reliance and maximum dependability
- 230 V AC output voltage for optimal performance with maximum feasibility
Product Specifications
-
Additional InformationCord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Overload Protection : 20A x 2 Plug Style : Straight (Socket) Nominal Output Voltage : 200 - 240 VAC Outlet Banks : 1 Outlets - Total : 10 Overload Protection : None Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : <10 ms Environmental Sensor : Optional, via RJ45 Hardware Connection Port : Ethernet (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Modular Expandability (Cascading) : Yes, via RJ45 Outlet switching : Yes SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Upgradeable firmware : Yes Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C)
-
Brand NameCyberPower
-
Country of OriginChina
-

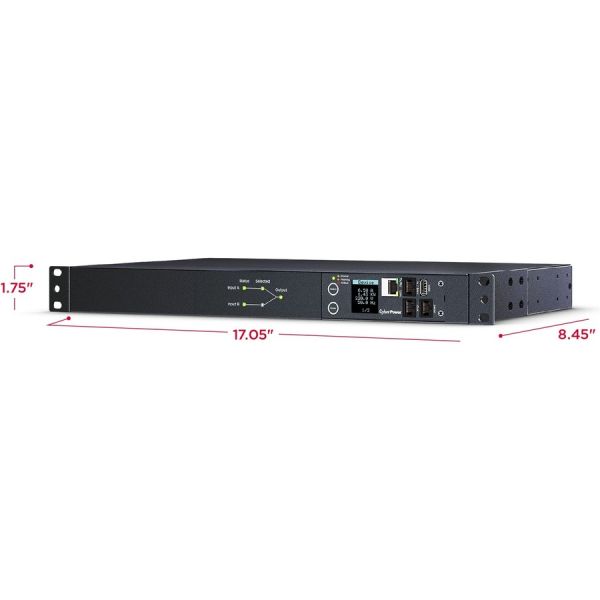

Depth8.5"
-
Environmentally FriendlyYes
-
Height1.8"
-
Input Current20 A
-
Input Voltage230 V AC
-
Input Voltage Range200 V AC - 240 V AC
-
Limited Warranty3 Year
-
ManagementIPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
-
Manufacturer Part NumberPDU44005
-
Mount TypeRack-mountable
-
Mounting OrientationHorizontal
-
Network (RJ-45)Yes
-
Output Voltage230 V AC
-
Output Voltage Range200 V AC - 240 V AC
-
PhaseSingle Phase
-
Plug/Connector Detail2 x IEC 60320 C20
-
Plug/Connector TypeIEC 60320 C20
-
Product ColorBlack
-
Product ModelPDU44005
-
Product NameSwitched ATS PDU PDU44005 10-Outlets PDU
-
Product SeriesSwitched ATS PDU
-
Product TypePDU
-
Rack Height1U
-
Receptacle Detail2 x IEC 60320 C19 8 x IEC 60320 C13
-
Receptacle TypeIEC 60320 C13 IEC 60320 C19
-
Remote Outlet SwitchingYes
-
Width17.1"
