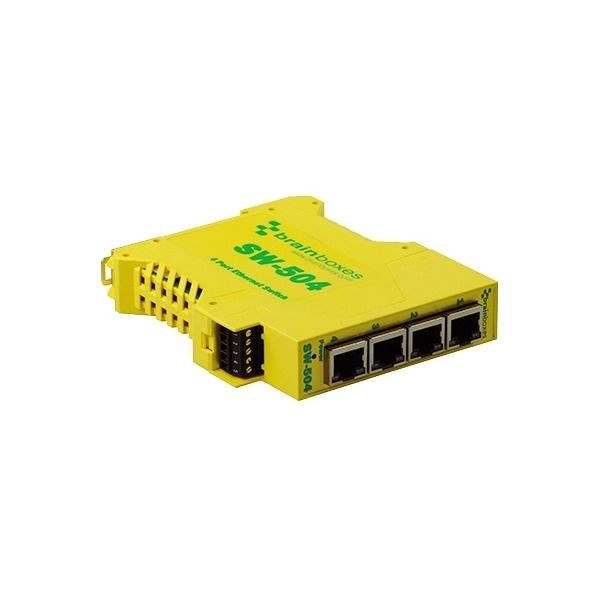

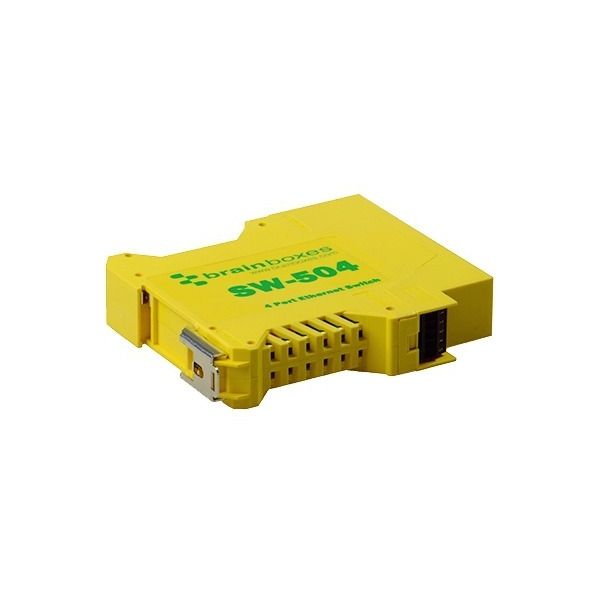

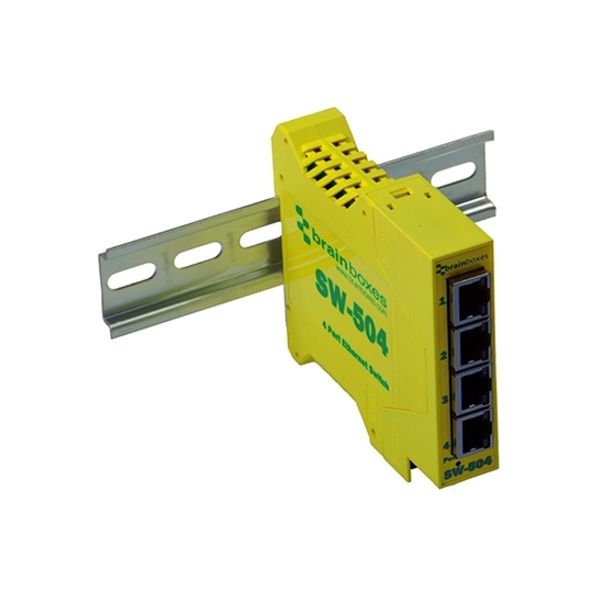

Brainboxes Industrial Ethernet 4 Port Switch DIN Rail Mountable
Product Number: SYNX3657923
$71.90
Loading...
Loading...
Brainboxes Industrial Ethernet 4 Port Switch DIN Rail Mountable
4 Ports - 10/100Base-TX - TAA Compliant - 2 Layer Supported - Rail-mountable - Lifetime Limited Warranty
Description:
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
More from the Manufacturer
More from the Manufacturer
- 4 Port Ethernet Switch
- Integrated DIN Rail Mount with grounding
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- Slim Footprint Case, only 22.5mm wide
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- Power Adapter power source for required power supply to ensure maximum efficiency
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The switch is rail mountable, you can easily install it in racks with concrete stability
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Twisted Pair media support ensures maximum convenience and great usability
Read More
-
Brand NameBrainboxes
-
Certifications & StandardsCE CCC-Mark C-Tick Microsoft Certified Gold Partner METL AEO (C-TPAT)
-
Country of OriginUnited Kingdom
-
Depth3.9"
-
Environmentally FriendlyYes
-
Ethernet TechnologyFast Ethernet
-
Form FactorRail-mountable
-
Height0.9"
-
Layer Supported2
-
Limited WarrantyLifetime
-
ManageableNo
-
Manufacturer Part NumberSW-504
-
Media Type SupportedTwisted Pair
-
ModularNo
-
Network Technology10/100Base-TX
-
Number of Network (RJ-45) Ports4
-
Package ContentsQuick Start Guide Industrial Ethernet 4 Port Switch DIN Rail Mountable
-
PoE (RJ-45) PortNo
-
Power SourceUSB Power Adapter
-
Product ModelSW-504
-
Product NameIndustrial Ethernet 4 Port Switch DIN Rail Mountable
-
Product TypeEthernet Switch
-
Stack PortNo
-
Total Number of Network Ports4
-
Uplink PortNo
-
Width4.6"
