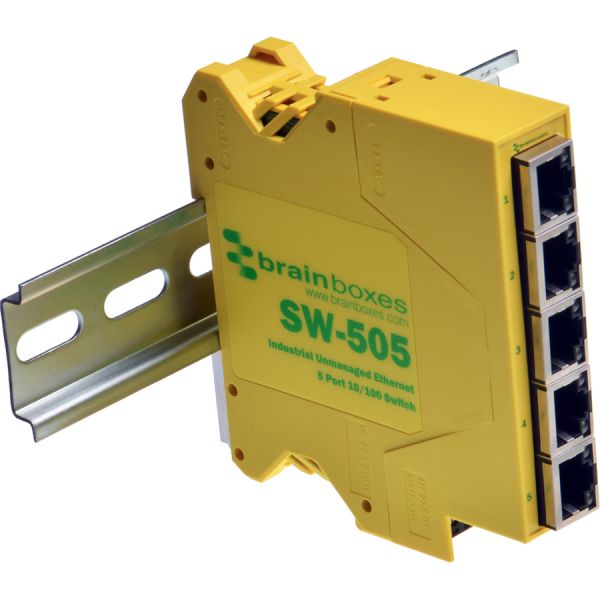

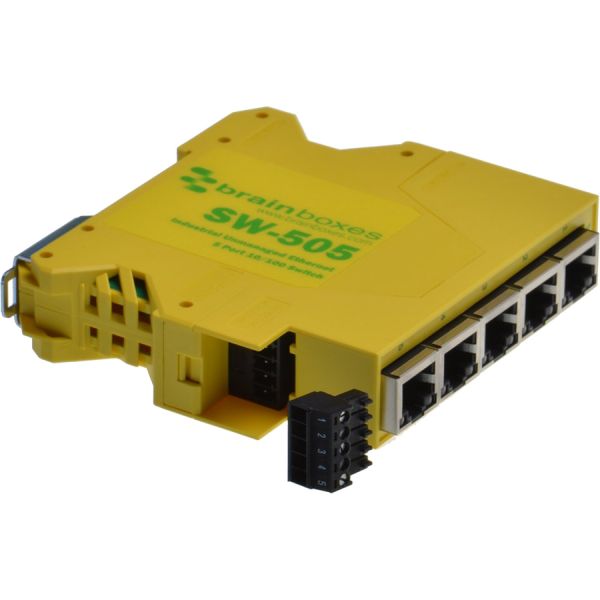

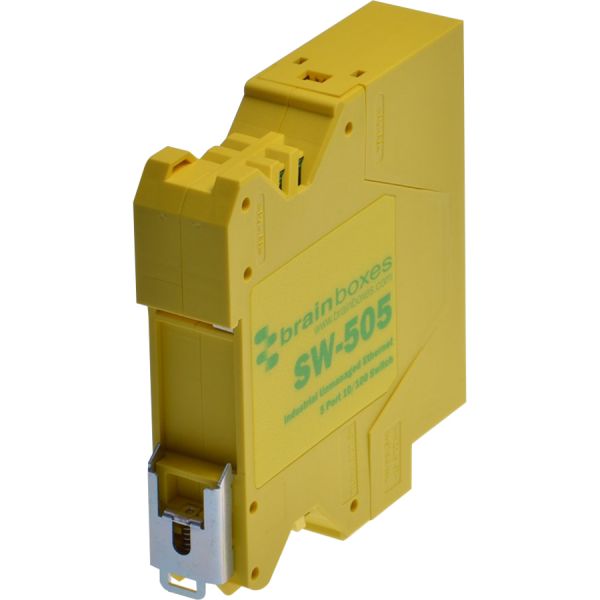

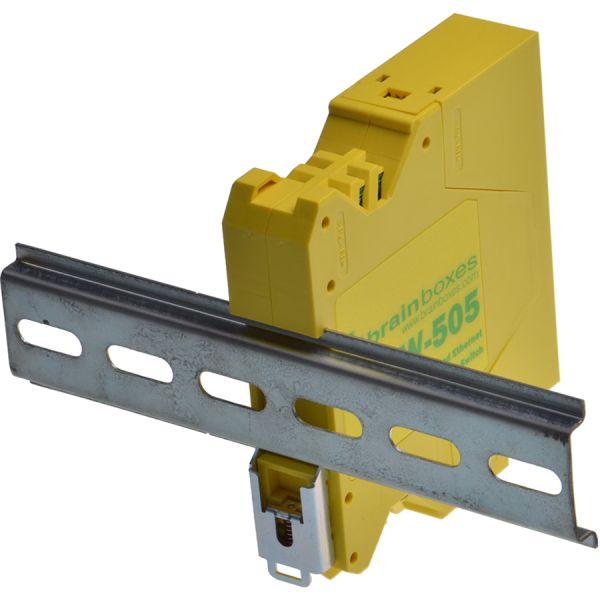

Brainboxes Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
Product Number: SYNX4580869
$82.21
Loading...
Loading...
Product Description
Brainboxes Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
5 Ports - Fast Ethernet - 10/100Base-TX - TAA Compliant - 2 Layer Supported - Twisted Pair - Rail-mountable - Lifetime Limited Warranty
Description:
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
More from the Manufacturer
More from the Manufacturer
- 5 Port Compact Ethernet Switch
- Integrated DIN Rail Mount with grounding
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- Small Footprint Case, only 22.5mm wide, 94mm deep
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Power Adapter power source for required power supply to ensure maximum efficiency
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rail mounting is ideal for factory areas, in vehicles and marine applications
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Twisted Pair media support for efficient and reliable connectivity
Related Articles
Need more information?
Ask a Question
Product Specifications
-
Brand NameBrainboxes
-
Country of OriginUnited Kingdom
-
Depth3.9"
-
Environmentally FriendlyYes
-
Ethernet TechnologyFast Ethernet
-
Form FactorRail-mountable
-
Height0.9"
-
Layer Supported2
-
Limited WarrantyLifetime
-
ManageableNo
-
Manufacturer Part NumberSW-505
-
Media Type SupportedTwisted Pair
-
ModularNo
-
Network Technology10/100Base-TX
-
Package ContentsIndustrial Compact Ethernet 5 Port Switch DIN Rail Mountable Quick Start Guide
-
Power SourceUSB Power Adapter
-
Product ModelSW-505
-
Product NameIndustrial Compact Ethernet 5 Port Switch DIN Rail Mountable
-
Product TypeEthernet Switch
-
Total Number of Network Ports5
-
Width3.7"
