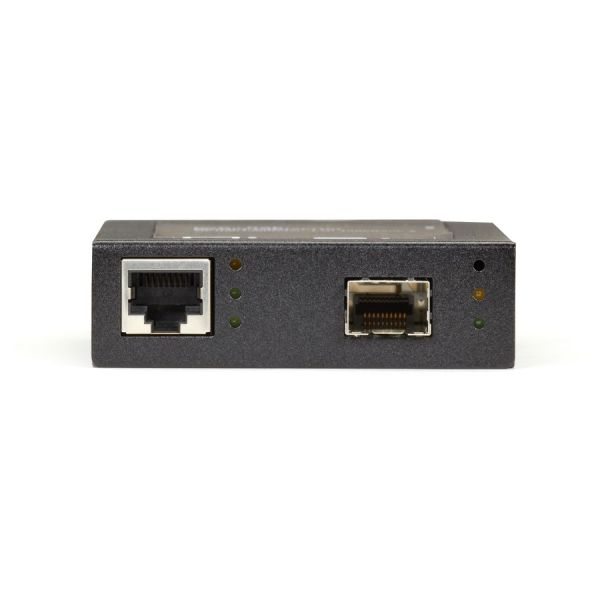

Black Box Gb ETH PoE+ MED CONV 10/100/1000-Mbps COP to 1000-Mbps FBR SFP
Product Number: SYNX4295074
$246.05
Loading...
Loading...
Product Description
Black Box Gb ETH PoE+ MED CONV 10/100/1000-Mbps COP to 1000-Mbps FBR SFP
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - Multi-mode, Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX/LX - 1.0 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Supply - External - TAA Compliant
Description:
Transparently connect fiber to copper to power PoE+ devices at the edge of your network. Use the Converter to connect PoE+ devices such as PTZ (pan, tilt, zoom) cameras, 802.11n access points, VoIP phones, and more that require up to 30 watts of power. The Converter acts as a Power Sourcing Equipment (PSE) to push data and power over copper cable to the remote, Powered Devices (PDs). The Media Converter features one autosensing 10/100/1000-BASE-T UTP port plus an SFP port that can be used for multimode and single-mode 1000BASE-X fiber connections. It is powered via an external AC adapter, which delivers 47~57 input power voltage. The Converter features advanced functions such as auto-negotiation, Auto-MDIX, Link Lost Forwarding, and Link Fault Pass-Through for easy system management and troubleshooting. LEDs indicate Converter activity.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
- Provides one 10-/100-/1000-Mbps copper port and one 1000Mbps SFP port
- Power sourcing equipment (PSE) on the copper side to provide up to 30 watts of power
- Compatible with 802.3af/at standard PoE devices
- Link Loss Forwarding provides instant notification of fiber segment link problems
- Copper port supports full-duplex, auto-MDI/MDI-X, and auto-negotiation
- Smart, plug-and-play installation
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Connect different types of media within a network with this single port
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- The External provides convenient installation
Related Articles
Need more information?
Ask a Question
Product Specifications
-
Additional InformationThis product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
-
Brand NameBlack Box
-
Country of OriginTaiwan
-
DVINo
-
Depth4"
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Expansion Slot TypeSFP (mini-GBIC)
-
Fiber Mode SupportedMulti-mode Single-mode
-
Form FactorExternal
-
Height0.9"
-
Limited Warranty1 Year
-
Management PortNo
-
Manufacturer Part NumberLPS535A-SFP
-
Media Type SupportedOptical Fiber Twisted Pair
-
Network (RJ-45)Yes
-
Network Technology10/100/1000Base-T 1000Base-SX/LX
-
Number of PoE+ (RJ-45) Ports1
-
Number of SFP Slots1
-
Power SourcePower Supply
-
Product ModelLPS535A-SFP
-
Product NameGb ETH PoE+ MED CONV 10/100/1000-Mbps COP to 1000-Mbps FBR SFP
-
Product SeriesLPS530
-
Product TypeTransceiver/Media Converter
-
Total Number of Expansion Slots1.0
-
Total Number of Ports1
-
USBNo
-
Width2.9"
