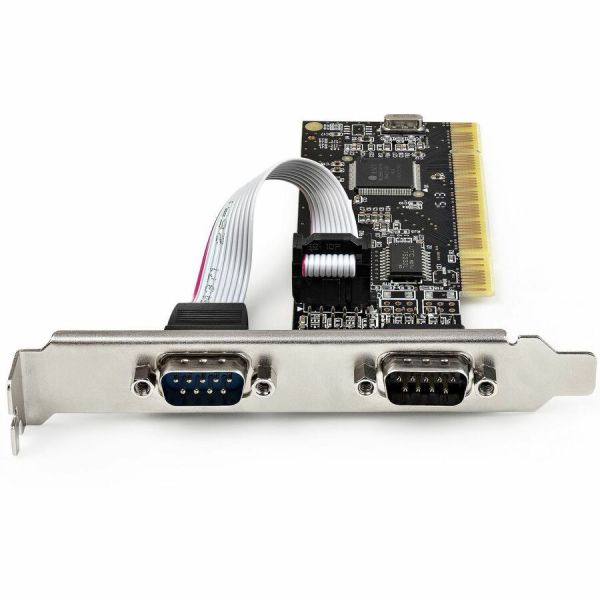

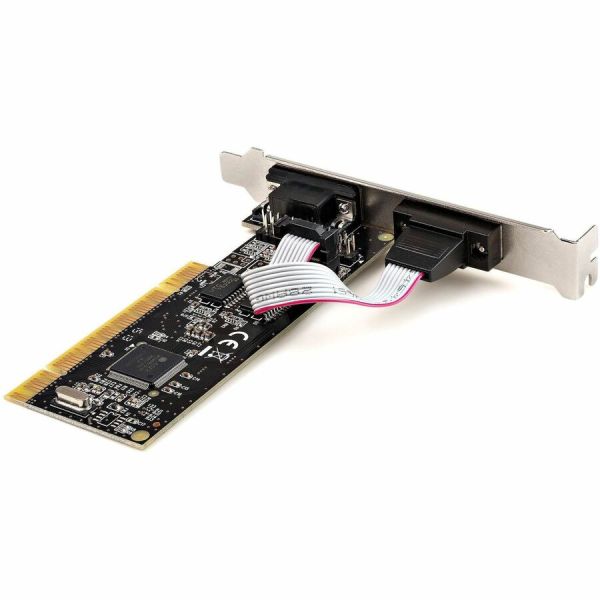

StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel Port (DB25), PCI Adapter Expansion Card
Product Number: SYNX6331354
$39.49
Loading...
Loading...
Product Description
StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel Port (DB25), PCI Adapter Expansion Card
PCI Serial Parallel Combo Card adds 1x Parallel + 2x Serial RS232 ports - Up to 1.5Mbps Parallel LPT (DB25)/115.2Kbps Serial COM (DB9) - SPP/Byte/ECP/EPP modes - Asix MCS9865 - Expansion card - 2xStandard brackets (3xlow profile incl) - Windows/Linux
Description:
This PCI 1x Parallel and 2x Serial Combo Card installs into a single PCI slot in your computer (occupying 2 to 3 expansion slots, depending on profile), and adds a DB25 IEEE 1284 parallel port and two DB9 RS 232 serial ports to your system.
Adds an LPT Parallel Port
The controller card features an Asix MCS9865 chip and enables you to connect a DB25 parallel device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The parallel (LPT) port supports SPP/Byte/Nibble/ECP/EPP modes and IEEE 1284 for speeds up to 1.5Mbps.
Adds a COM Serial Port
The Asix MCS9865 chip also enables you to connect two DB9 devices using the same controller card, compatible with industry standard 16C550 UART. The serial ports are ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) ports support bi-directional RS232 speeds up to 115.2Kbps per port, available 256 byte FIFO buffer & 9th data bit.
Wide Installation Compatibility
With broad OS support, including for Windows (7 and up), and Linux (2.6.x to 5.x LTS versions only), this PCI serial/parallel card is easy to integrate into mixed environments. The card comes pre-configured with 2x full-profile brackets, and includes optional 3x low-profile brackets, so installation is easy regardless of the case form factor.
PCI2S1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
Adds an LPT Parallel Port
The controller card features an Asix MCS9865 chip and enables you to connect a DB25 parallel device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The parallel (LPT) port supports SPP/Byte/Nibble/ECP/EPP modes and IEEE 1284 for speeds up to 1.5Mbps.
Adds a COM Serial Port
The Asix MCS9865 chip also enables you to connect two DB9 devices using the same controller card, compatible with industry standard 16C550 UART. The serial ports are ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) ports support bi-directional RS232 speeds up to 115.2Kbps per port, available 256 byte FIFO buffer & 9th data bit.
Wide Installation Compatibility
With broad OS support, including for Windows (7 and up), and Linux (2.6.x to 5.x LTS versions only), this PCI serial/parallel card is easy to integrate into mixed environments. The card comes pre-configured with 2x full-profile brackets, and includes optional 3x low-profile brackets, so installation is easy regardless of the case form factor.
PCI2S1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
- PCI CARD WITH SERIAL & PARALLEL PORTS: Using one PCI bus, add a DB25 parallel & two DB9 RS232 ports to your computer; Serial Parallel PCI Card installs in 2x full profile or 3x low profile expansion slots; Auto IRQ & IO assignment; Supports IRQ Sharing
- TECH SPECS: Parallel Speeds up to 1.5Mbps | Supports SPP/Byte/ECP/EPP modes | Compatible with IEEE 1284 | Asix MCS9865 chip | RS-232 speeds up to 115.2 Kbps | 16C550 UART | 256 byte FIFO buffer | 5-9 bit character | Even, Odd, No, Space or Mark Parity
- VERSATILE APPLICATIONS: PCI expansion combo card adds LPT Printer & two COM serial ports working with printers, scanners, plotters, point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, oscilloscope
- STANDARD PROFILE & LOW PROFILE BRACKETs: PCI multiport Parallel LPT & dual serial COM adapter card installs using 2x standard bracket (pre-installed) or 3x low profile brackets (incl); Supports Windows 7 and up, Linux 2.6.x to 5.x
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; These 1-Port Parallel & 2-Port Serial port PCI controller card is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
Product Specifications
-
Brand NameStarTech.com
-
Country of OriginChina
-
Depth5.3"
-
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Host InterfacePCI
-
Limited WarrantyLifetime
-
Manufacturer Part NumberPCI2S1P2
-

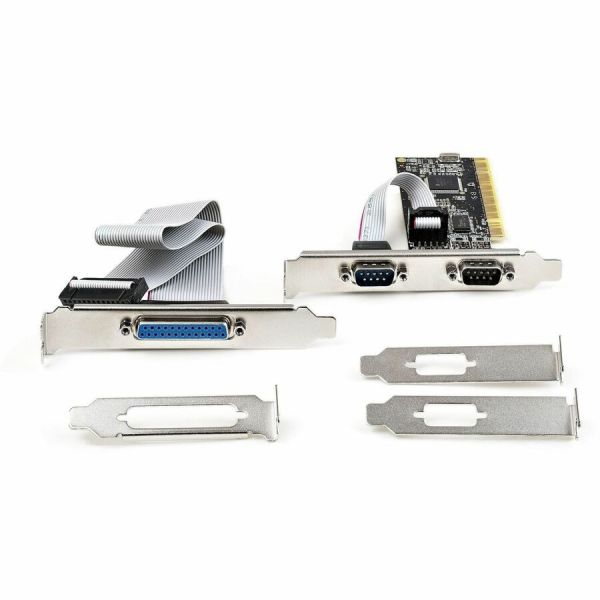

Package Contents2S1P PCI Serial Parallel Combo Card with 16C550 UART 1 x Full-Profile Bracket (Installed) 2 x Low-Profile Brackets (for Serial Ports) 1 x Low-Profile Bracket (for Parallel Port) 1 x Quick-Start Guide
-
Product Name2S1P PCI Serial Parallel Combo Card with 16C550 UART
-
Product TypeSerial/Parallel Combo Adapter
-
Width0.9"
