StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power - 5Gbps

Product Number: SYNX3446013
$87.82
Ships Free - This items ships free with your order
Delivered by Fri 1/3 Mon 1/6 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

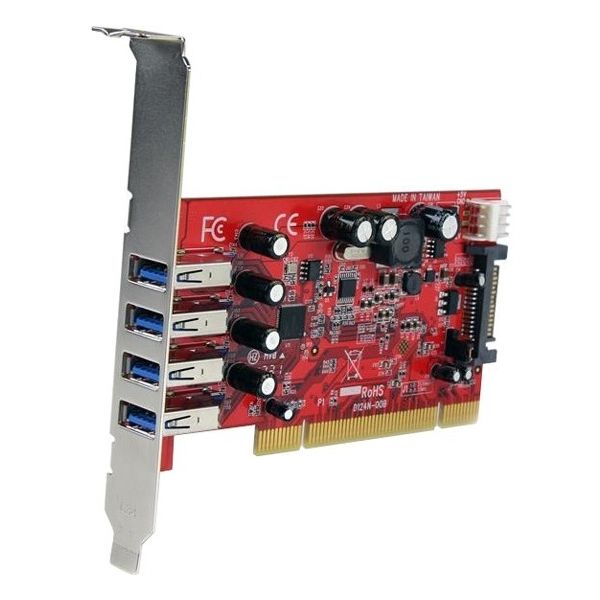

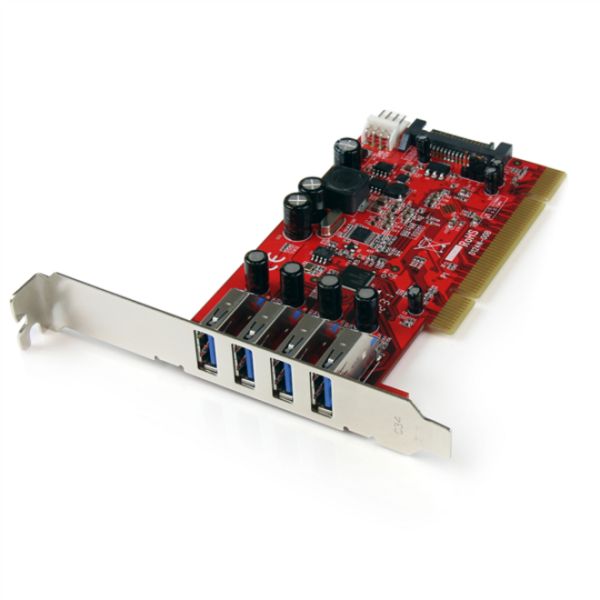

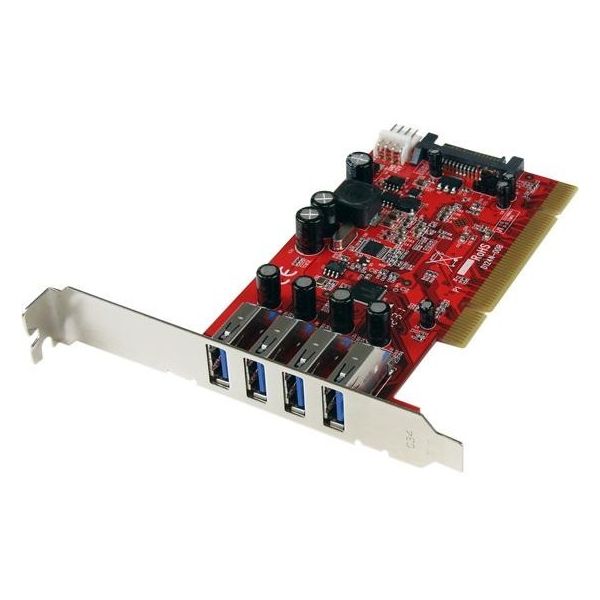

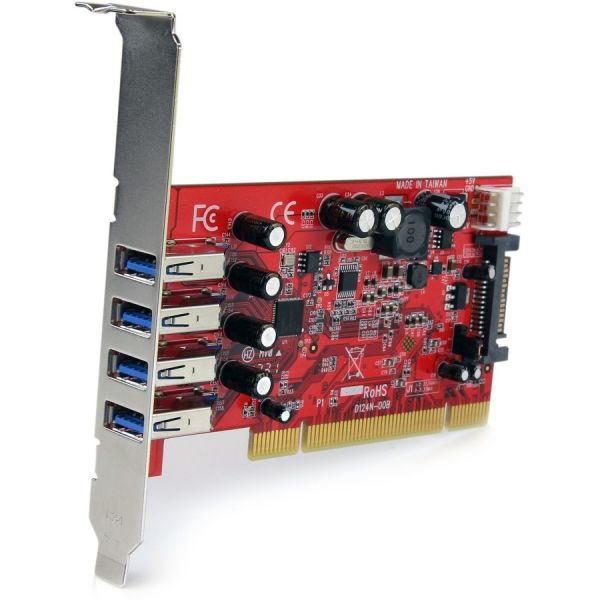

StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power - 5Gbps
4-Port USB 3.0 PCI/PCI-X Card (USB 3.1 Gen 1/USB 3.2 Gen 1x1) - Achieve speeds up to PCI bus max (1.3Gbps) - Optional SATA/SP4 power - PCI 3.3V/5V 32-bit - Full/low profile brackets - For PCs with PCI slots like Dell OptiPlex 7010/HP Compaq dc7800
Description:
The PCIUSB3S4 4-Port PCI to USB 3.2 Gen 1 Card enables legacy PCI slots to support the SuperSpeed USB 3.2 Gen 1 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.2 Gen 1 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection. Note: Some newer PCs may use a PCIe to PCI bridge which can cause unexpected compatibility issues with this product.

This versatile USB 3.2 Gen 1 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.2 Gen 1 devices - suitable for even the most power hungry devices.

A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.2 Gen 1 devices, but will also support older devices.

The PCIUSB3S4 4-Port PCI USB 3.2 Gen 1 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
  • ADD 4x SUPERSPEED USB 3.0 PORTS: This PCI/PCI-X Universal (3.3V & 5V, 32-bit) card adds four USB-A 3.2 Gen 1 ports to your computer or server through a PCI slot; Supports USB 3.0/3.1 Gen 1/USB 3.2 Gen 1x1
  • TRANSFER SPEEDS: USB PCI card with UASP achieves speeds up to the maximum of your PCI bus (1.3Gbps); Ideal for older computers with only PCI slots available like Dell OptiPlex 7010/HP Compaq dc7800; Backward compatible with USB 2.0/1.1/1.0
  • OPTIONAL POWER: USB PCI expansion card features SATA & SP4 power ports to supply additional power to the USB ports (when motherboard power is insufficient); Power can be connected to SATA or SP4 port to provide up to 5V 0.9A/4.5W per USB Type-A port
  • STANDARD & LOW PROFILE BRACKET: PCI USB card comes with a full-profile (standard) bracket pre-installed and a low-profile (half height) bracket included for versatile installation in both low-profile and full-profile computer systems
  • COMPATIBILITY: This card is Windows only; Supported versions: Windows XP and up, Windows Server 2003 and up; USB card is only compatible with PCI/PCI-X slots and is NOT COMPATIBLE with PCI-Express (PCIe); See PEXUSB3S4V for a PCIe solution

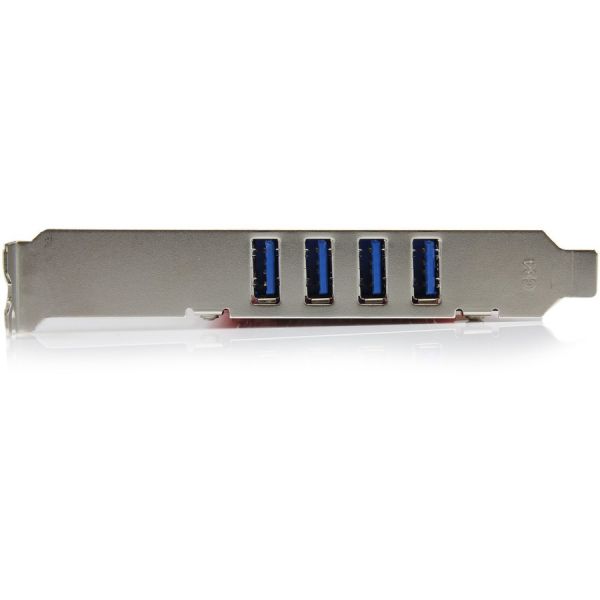

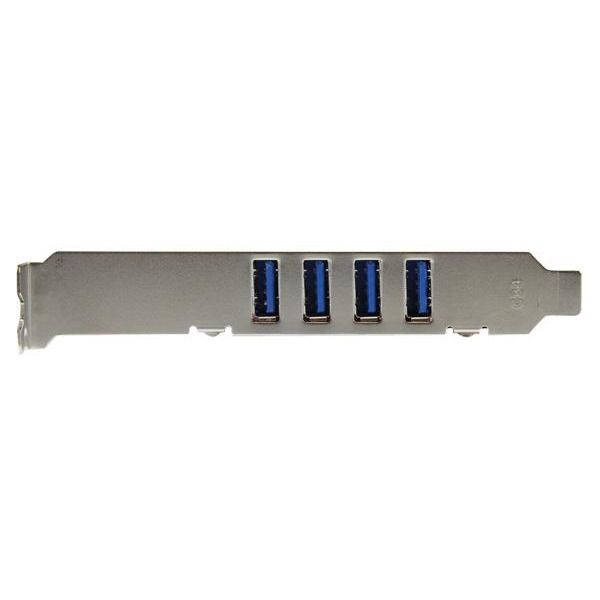

  • 4 external SuperSpeed USB 3.0 ports
  • Provides up to 900mA of power over USB 3.0
  • Built-in optional SATA power connector for bus-powered USB devices
  • Backward compatible with USB 2.0/1.x devices
  • Compliant with USB 3.0 base specification 1.0 and xHCI specification 0.95
  • Compliant with PCI Specification 3.0
  • Includes a low profile/half-height installation bracket
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Information
    Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server 2012, 2008 R2, 2003
  • Brand Name
    StarTech.com
  • Country of Origin
    Taiwan
  • Data Transfer Rate
    5 GB/s
  • Environmental Compliance
    Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmentally Friendly
    Yes
  • Form Factor
    Plug-in Card
  • Height
    2.6"
  • Host Interface
    PCI-X
  • Length
    5.2"
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    PCIUSB3S4
  • Number of USB 3.2 Ports
    4
  • Operating System Supported
    Windows 10 Windows 11 Windows 7 Windows 8 Windows 8.1 Windows Server 2003 Windows Server 2008 R2 Windows Server 2012 Windows Server 2016 Windows Server 2019 Windows Vista Windows XP
  • Package Contents
    1 x Low Profile Bracket 1 x Driver CD 4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power 1 x Instruction Manual
  • Platform Supported
    PC
  • Product Color
    Red
  • Product Name
    4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power
  • Product Type
    USB Adapter
  • Thickness
    800 mil
  • Total Number of USB Ports
    4
  • Width
    0.8"
