StarTech.com 16 Port PCI Express Serial Card - Low-Profile - High-Speed PCIe Serial Card with 16 DB9 RS232 Ports
Product Number: SYNX4882626
$405.46
Loading...
Loading...
Product Description
StarTech.com 16 Port PCI Express Serial Card - Low-Profile - High-Speed PCIe Serial Card with 16 DB9 RS232 Ports
Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot - 16-Port PCI Express Serial Card - Low-Profile - High-speed PCIe serial card with 16 DB9 RS232 Ports (up to 921.6 Kbps) - Multiport serial adapter card
Description:
This PCI Express serial card adds 16 high-speed RS232 ports to your standard or low-profile desktop or server PC. This lets you maximize the number of available DB9 RS232 ports that are available for connecting your serial-based devices and equipment, while using only a single PCI Express (PCIe) slot. It's the perfect solution for adding the serial ports you need, even if your desktop PC or server only has a limited number of PCIe expansion slots.
Add 16 RS232 ports through one PCIe slot

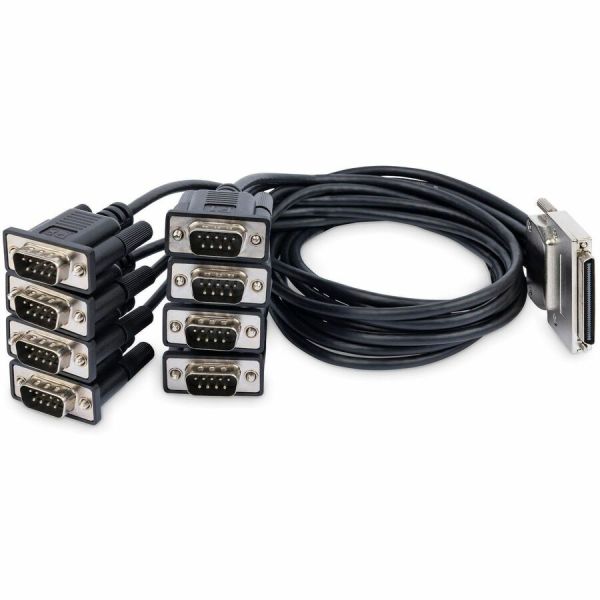

You can install the serial card to add 16 high-performance DB9 RS232 serial ports from a single PCIe slot. With two breakout cables of 8 ports each, the PCIe serial card maximizes the density of DB9 RS232 ports on a server or desktop computer. It's ideal for system upgrades in a wide range of applications, including manufacturing equipment, POS equipment, security devices such as surveillance cameras, and environment or building control systems.
The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.
High-speed serial communication
The PCIe serial card delivers high-performance, high-speed serial communication, with support for data transfer rates of up to 921.6 Kbps.
Easy installation

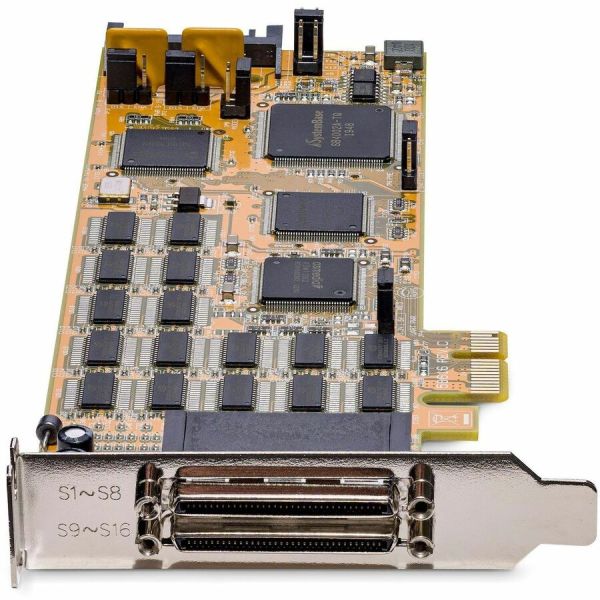

The serial card is easy to install and configure, and compatible with a broad range of Windows and Linux operating systems. The card features IRQ sharing and supports plug-and-play serial device connections, which makes it convenient and easy to connect serial devices. It includes a low-profile bracket making it compatible with both full profile and low profile PC chassis slots.
The PEX16S550LP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Add 16 RS232 ports through one PCIe slot
You can install the serial card to add 16 high-performance DB9 RS232 serial ports from a single PCIe slot. With two breakout cables of 8 ports each, the PCIe serial card maximizes the density of DB9 RS232 ports on a server or desktop computer. It's ideal for system upgrades in a wide range of applications, including manufacturing equipment, POS equipment, security devices such as surveillance cameras, and environment or building control systems.
The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.
High-speed serial communication
The PCIe serial card delivers high-performance, high-speed serial communication, with support for data transfer rates of up to 921.6 Kbps.
Easy installation
The serial card is easy to install and configure, and compatible with a broad range of Windows and Linux operating systems. The card features IRQ sharing and supports plug-and-play serial device connections, which makes it convenient and easy to connect serial devices. It includes a low-profile bracket making it compatible with both full profile and low profile PC chassis slots.
The PEX16S550LP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- 16 DB9 RS232 ports from a single PCIe slot
- Enables high-speed serial communication with data transfer rates up to 921.6 Kbps
- Compatible with low- and full-profile desktop computers or servers
- Fully compliant with PCI Express 1.0a/1.1 specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
- +/-15kV ESD protection
- Selectable power output (5V or 12V ) on pin 9 for the serial port
- Data Bits: 5, 6, 7, or 8-bit characters
- Windows and Linux support
Product Specifications
-
Brand NameStarTech.com
-
Country of OriginTaiwan
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height0.9"
-
Host InterfacePCI Express x1
-
Limited Warranty2 Year
-
Manufacturer Part NumberPEX16S550LP
-
Maximum Data Transfer Rate921.60 kbit/s
-

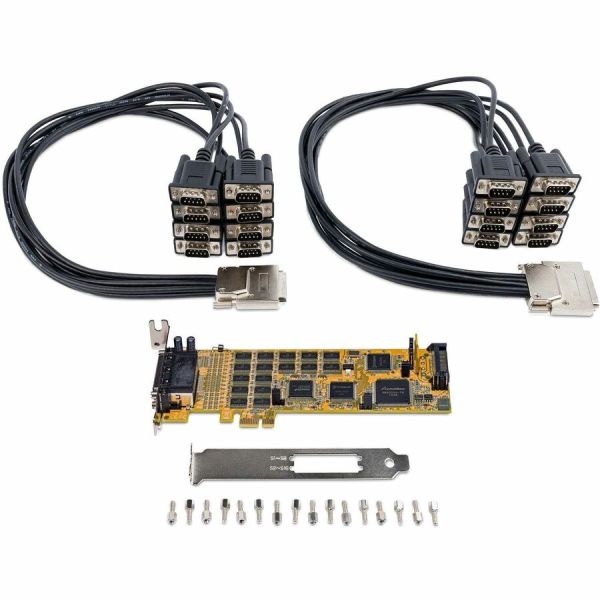

Package Contents16-Port Low-Profile Serial Card - RS232 - PCI Express 1 x Low-profile Bracket 2 x Breakout Cables 1 x Driver CD 1 x Quick-start Guide
-
Platform SupportedLinux PC
-
Ports Expandability16 x DB-9 RS-232 - Serial
-
Product ColorYellow
-
Product Name16-Port Low-Profile Serial Card - RS232 - PCI Express
-
Product TypeMultiport Serial Adapter
-
Width2.7"
