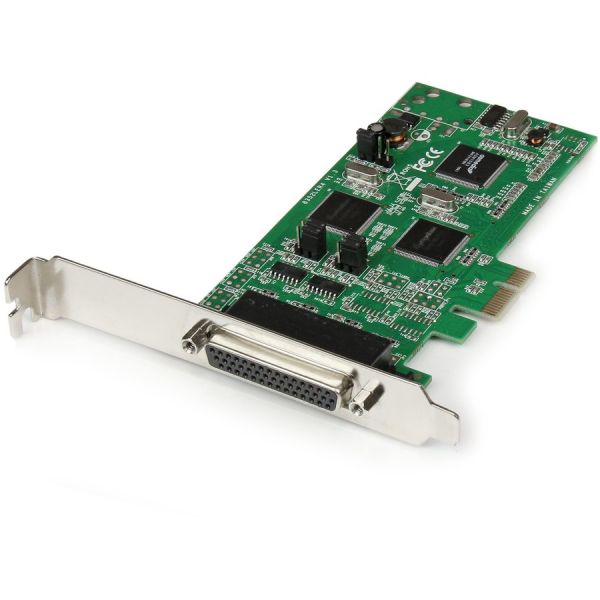

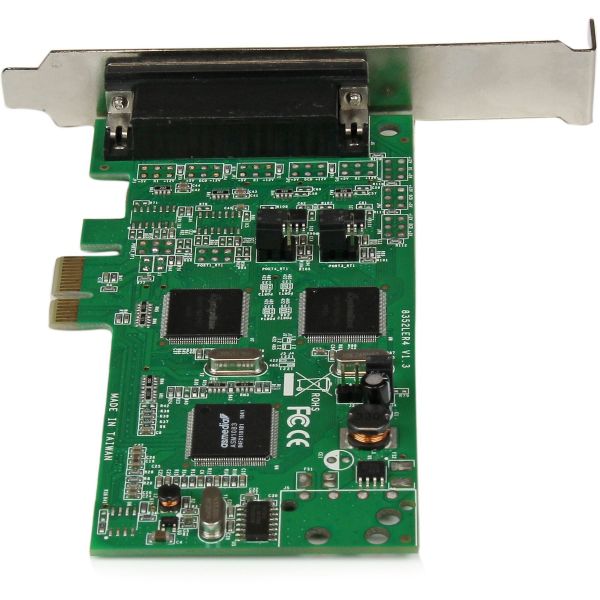

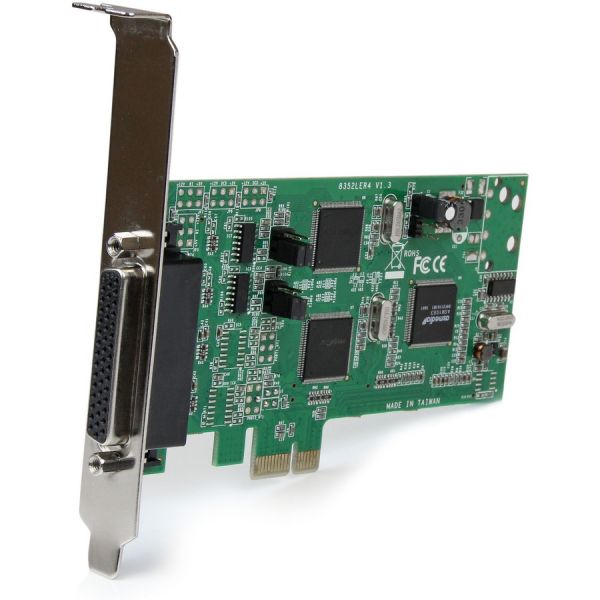

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
- 4 port (2 x RS232, 2 x RS422/485) serial combo card
- RS232 data transfer rates up to 460 Kbps
- Supports 2-Wire / 4-Wire RS485 modes
- 256-byte deep FIFO per transmitter and receiver
StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
- 4 port (2 x RS232, 2 x RS422/485) serial combo card
- RS232 data transfer rates up to 460 Kbps
- Supports 2-Wire / 4-Wire RS485 modes
- 256-byte deep FIFO per transmitter and receiver
- Standard and low-profile bracket included
- Compliant with PCI-Express Specification 1.0a
- Supports PCI Power Management 1.1
-
Brand NameStarTech.com
-
Country of OriginTaiwan
-
Environmental CertificationRoHS WEEE REACH
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height2.7"
-
Host InterfacePCI Express x1
-
Limited WarrantyLifetime
-
Manufacturer Part NumberPEX4S232485
-
Maximum Data Transfer Rate3.59 Mbit/s
-
Package Contents1 x Low Profile Bracket 1 x Driver CD 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 1 x Breakout Cable 1 x Instruction Manual
-
Platform SupportedPC
-
Ports Expandability4 x DB-9 RS-232/422/485 - Serial, Via Cable
-
Product Name4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
-
Product TypeMultiport Serial Adapter
-
Width0.6"
