StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
Loading...
$91.90
Loading...
Loading...
Product Description

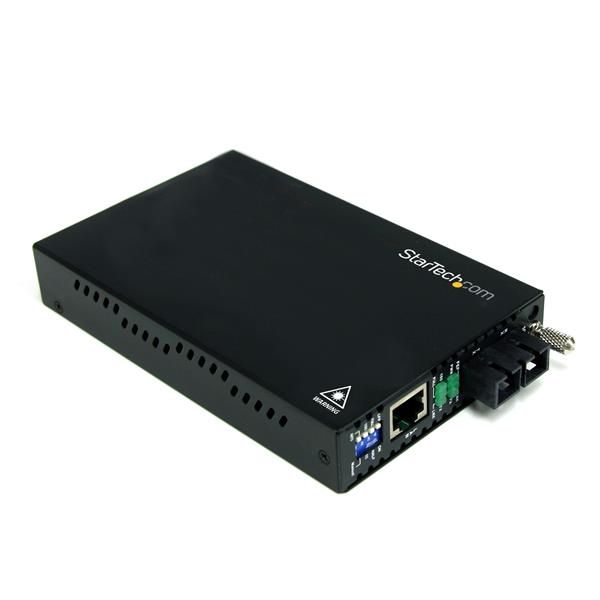

StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber - fiber converter - ethernet media converter - fibre converter - 10/100 media converter - utp to fiber
Description:
The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
- Supports a maximum fiber cable length of 2 km
- Supports full or half-duplex operation
- Easy to use and install
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- Desktop installation makes it ideal for deployments outside the wiring closet
- Can be placed on Desktop surface for standalone installation
Related Articles
Need more information?
Ask a Question
Product Specifications
-
Brand NameStarTech.com
-
Certifications & StandardsIEEE 802.3 IEEE 802.3u FC FCC
-
CompatibilityETCHS2U Rackmount Chassis
-
Country of OriginTaiwan
-
DVINo
-
Depth6"
-
Digital AudioNo
-
Digital Audio/VideoNo
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Ethernet TechnologyFast Ethernet
-
Fiber Mode SupportedMulti-mode
-
Form FactorDesktop Rack-mountable
-
Height0.9"
-
Input Voltage12 V DC
-
Limited Warranty2 Year
-
Manufacturer Part NumberET90110SC2
-
Maximum Distance Supported2 km
-
Media Type SupportedTwisted Pair Optical Fiber
-
Network (RJ-45)Yes
-
Network Technology10/100Base-TX 100Base-FX
-
Number of Network (RJ-45) Ports1
-
Number of SC Ports1
-
Package Contents10/100 Mbps Multi Mode Fiber Media Converter SC 2 km 1 x Universal Power Adapter 1 x Instruction Manual 1 x Grounding Screw
-
Parallel PortNo
-
Plug/Connector TypeType M
-
Power SourceAC Adapter
-
Product ColorBlack
-
Product Name10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
-
Product TypeTransceiver/Media Converter
-
SC Port TypeDuplex
-
Total Number of Ports2
-
USBNo
-
Width3.4"
