StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (m-key) Compatible
Loading...
$182.56
Loading...
Loading...
Product Description
StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (m-key) Compatible
Dual M.2 PCIe SSD adapter to install 2 PCI Express M-Key SSD (NVMe/AHCI) in computer - Use M.2 NGFF SSDs individually or w/ software RAID 0 1 SPAN JBOD. Compatible w/ Samsung 970 Evo / 950 Pro / SM951. Windows Linux macOS. Full & low-profile bracket.
Description:
Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.
Boost System Performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.
Access two M.2 PCIe SSDs simultaneously
The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.
The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or, you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.
Wide System Compatibility
The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.
Supports a Wide Range of PCIe M.2 SSDs
The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.
Easy to Install

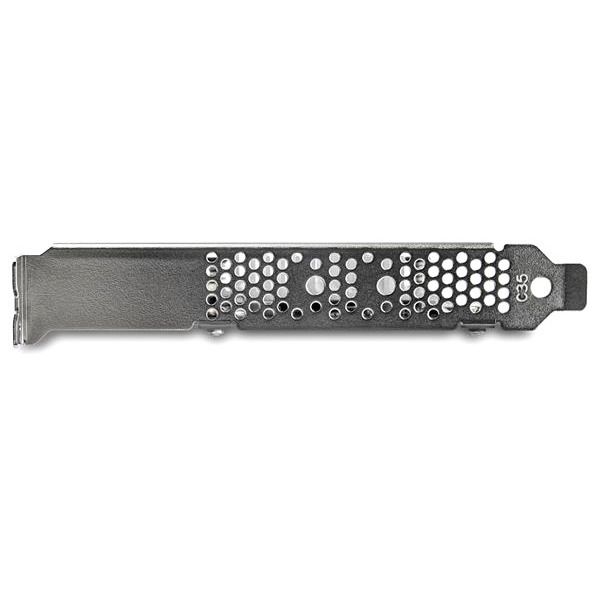

The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.
Vented Brackets
Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.
The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Boost System Performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.
Access two M.2 PCIe SSDs simultaneously
The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.
The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or, you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.
Wide System Compatibility
The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.
Supports a Wide Range of PCIe M.2 SSDs
The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.
Easy to Install
The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.
Vented Brackets
Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.
The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- HIGH PERFORMANCE: Install 2 PCIe 3.0 M.2 SSDs (NVMe or AHCI) into your workstation or server for read/write speeds up to 3GB/s and 2.8GB/s for single-drives or 2.4GB/s and 1.42GB/s (per drive) for 2
- WIDE COMPATIBILITY: Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility w/ Samsung 970 evo, 950 Pro, SM951, & other 2242, 2260, 2280mm PCIe M-Key M.2 NGFF SSDs (NVMe or AHCI)
- BACKWARD COMPATIBILITY: Compatible w/ PCIe 1.0 & 2.0 and x8 or x16 slots, PCIe bifurcation is not required. Works with all workstation and server OS's such as Windows, Linux, and macOS incl. legacy.
- SOFTWARE RAID FUNCTIONALITY: M.2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software & supports RAID 0, 1, SPAN, JBOD for tiered/hybrid storage
- VENTED DUAL-PROFILE BRACKETS: Pre-installed full profile bracket with low-profile (half-height) bracket in box & vented design for better cooling, avoiding drive throttling and improving reliability.
Product Specifications
-
Additional InformationDrive Installation: Fixed Drive Size: 22m - M.2 NGFF Interface: PCI Express x8 Number of Drives: 2 Drive Connectors: 2 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF) Connector(s) Host Connectors: 1 - PCI Express x8 Other Interface(s): 2 - IDC (2 pin, Motherboard Header) Environmental Operating Temperature: 0°C to 70°C (32°F to 158°F) Storage Temperature: -25°C to 70°C (-13°F to 158°F) Humidity: 15% ~ 90% RH Hardware Supported Drive Height(s): 2242; 2260; 2280 Bus Type: PCI Express Compatible Drive Types: M.2 (PCIe, AHCI, M-Key, NGFF); M.2 (PCIe, AHCI, M-Key, NGFF) Chipset ID: ASMedia - ASM2824
-
Brand NameStarTech.com
-
Certifications & StandardsCE FCC
-
Country of OriginTaiwan
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Limited Warranty2 Year
-
Manufacturer Part NumberPEX8M2E2
-
Package Contents1 x Low-Profile Bracket 1 x Full-Profile Bracket (Pre-installed) 2 x SSD Standoff and Installation Screws 1 x Quick-Start Guide x8 PCI Express to Dual M.2 PCIe SSD Adapter
-
Product ColorRed
-
Product Namex8 PCI Express to Dual M.2 PCIe SSD Adapter
-
Product TypeM.2 NVMe to PCIe Adapter
