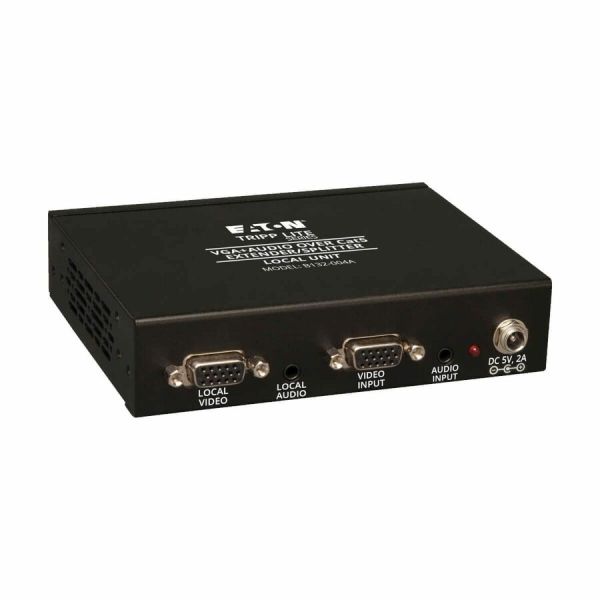

Tripp Lite by Eaton 4-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA
Product Number: SYNX3880438
$144.00
Loading...
Loading...
Product Description
Tripp Lite by Eaton 4-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA
1 Input Device - 4 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
Description:
Tripp Lite's B132-004A-2 allows you to split a single VGA and Audio signal into 5 (1 local, 4 remote). Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. Support for video resolutions up to 1920 x 1440 (60Hz). A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together
A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
Support for video resolutions up to 1920 x 1440 (60Hz)
Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
EDID copy feature ensures optimal display compatibility
The range and number of monitors can be further expanded by adding B132-110A repeater units
Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location
A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
Includes mounting hardwarethat allows unit to be wallmounted, rackmounted or pole mounted.
Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
Ideal for digital signage situations, such as retail, schools, churches, etc.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
More from the Manufacturer
For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together
A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
Support for video resolutions up to 1920 x 1440 (60Hz)
Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
EDID copy feature ensures optimal display compatibility
The range and number of monitors can be further expanded by adding B132-110A repeater units
Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location
A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
Includes mounting hardwarethat allows unit to be wallmounted, rackmounted or pole mounted.
Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
Ideal for digital signage situations, such as retail, schools, churches, etc.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
More from the Manufacturer
- Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
- EDID copy feature ensures optimal display compatibility
- Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- Can further expand the range and number of monitors by adding B132-110A repeaters
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Video Extender Transmitter is a reliable audio/video transmission extending solution
- 1920 x 1440 maximum video resolution for a spectacular, sharp display with added reliability
- VGA in for your convenience and optimal audio/video output with maximum usage feasibility
- VGA out for your convenience and optimal audio/video output with maximum usage feasibility
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The B132-004A-2 video extender transmitter provides plenty of freedom with wired connectivity
- 1 input devices supported to better accommodate your specific requirements
- 4 output devices supported to better accommodate your specific requirements
- 1000 ft maximum operating distance for feasible operation and optimal coverage
- Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
Product Specifications
-
Brand NameTripp Lite by Eaton
-
Connectivity TechnologyWired
-
Country of OriginTaiwan
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorPole-mountable Rack-mountable Wall Mountable
-
HeadphoneYes
-
Limited Warranty1 Year
-
Manufacturer Part NumberB132-004A-2
-
Maximum Operating Distance1000 ft
-
Maximum Video Resolution1920 x 1440
-
Media Type SupportedTwisted Pair
-
MicrophoneYes
-
Network (RJ-45)Yes
-
Number of Input Devices Supported1
-
Number of Network (RJ-45) Ports4
-
Number of Output Devices Supported4
-
Number of VGA Inputs1
-
Number of VGA Outputs1
-
Package Contents4 Port Extender/Splitter Local (Transmitter) Unit 1 ft. VGA Daisychain Cable Mounting Hardware External Power Supply (Input: 100-240V) Owner's Manual
-
Product ColorBlack
-
Product ModelB132-004A-2
-
Product Name4 Port Extender/Splitter Local (Transmitter) Unit
-
Product TypeVideo Extender Transmitter
-
Transmitter Depth3.90"
-
Transmitter Height1.20"
-
Transmitter Weight (Approximate)13.60 oz
-
Transmitter Width5.30"
-
Twisted Pair Cable StandardCategory 6
-
VGA InYes
-
VGA OutYes
