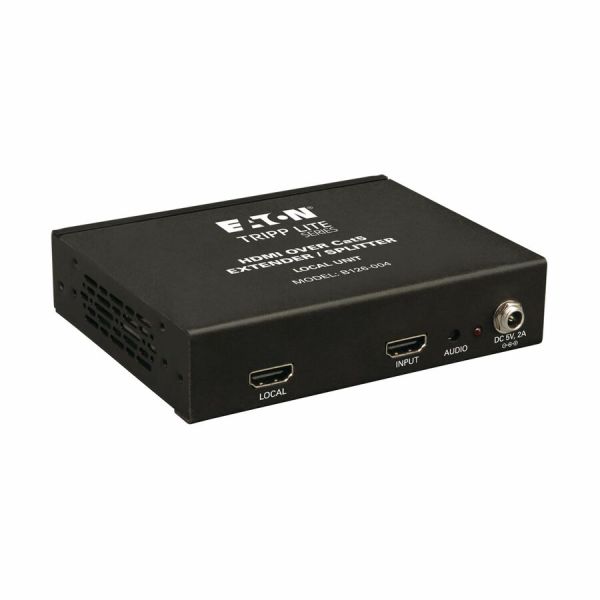

Eaton Tripp Lite Series 4-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft. (45 m), TAA

Product Number: SYNX2813589
$309.64
Ships Free - This items ships free with your order
Delivered by Tue 12/3 Wed 12/4 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

Eaton Tripp Lite Series 4-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft. (45 m), TAA
1 Input Device - 5 Output Device - 200 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Twisted Pair - Category 6 - Rack-mountable - TAA Compliant
Description:
The B126-004 4-Port HDMI over Cat5/Cat6 Extender/Splitter works with Tripp Lite B126-Series remote receivers to split a single HDMI audio/video signal into five separate signals-one local and four remote. It's ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite's P568-Series) to connect to the source and the local monitor and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series).When used with Tripp Lite's B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200 ft., a 1080p signal (60 Hz) up to 150 ft. and a 3D signal up to 125 ft. With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 100 ft. and a 1080p (60 Hz) signal up to 50 ft. By daisy-chaining up to three Extender/Splitters, one video source can transmit to as many as 13 monitors-one local and 12 remote. Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays.In addition to crystal-clear video, the B126-004 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Included HDMI cable with latching connectors provides a more secure connection.
More from the Manufacturer
  • Perfect for digital signs, trade shows and classrooms
  • Can daisy-chain up to 3 units to extend signal to 13 monitors
  • Works with all operating systems and HDMI video sources
  • Supports stereo and 7.1-channel surround sound audio
  • Plug and play-no software or drivers to install
  • Video Extender Transmitter is all you need for dependable and productive audio/video transmission
  • HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
  • HDMI out enables you to transfer data from your devices to video extender transmitter with added efficiency
  • Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
  • The B126-004 video extender transmitter provides plenty of freedom with wired connectivity
  • 1 input devices supported for maximum productive usability
  • 5 output devices supported for maximum productive usability
  • 200 ft maximum operating distance to allow efficient coverage and maximum usability
  • Rack-mountable video extender transmitter enables you to organize wires and secure cables for professional installation
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    Tripp Lite series
  • Certifications & Standards
    TAA HDCP
  • Connectivity Technology
    Wired
  • Country of Origin
    Taiwan
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • HDMI In
    Yes
  • HDMI Out
    Yes
  • Limited Warranty
    1 Year
  • Manufacturer Part Number
    B126-004
  • Maximum Operating Distance
    200 ft
  • Media Type Supported
    Twisted Pair
  • Network (RJ-45)
    Yes
  • Number of HDMI Inputs
    1
  • Number of HDMI Outputs
    1
  • Number of Input Devices Supported
    1
  • Number of Network (RJ-45) Ports
    4
  • Number of Output Devices Supported
    5
  • Package Contents
    B126-004 Video Extender 1 ft. HDMI Daisychain Cable Mounting Hardware External Power Supply Owner Manual
  • Product Color
    Black
  • Product Model
    B126-004
  • Product Name
    B126-004 Video Extender
  • Product Type
    Video Extender Transmitter
  • Transmitter Depth
    4"
  • Transmitter Height
    1.13"
  • Transmitter Width
    5"
  • Twisted Pair Cable Standard
    Category 6
